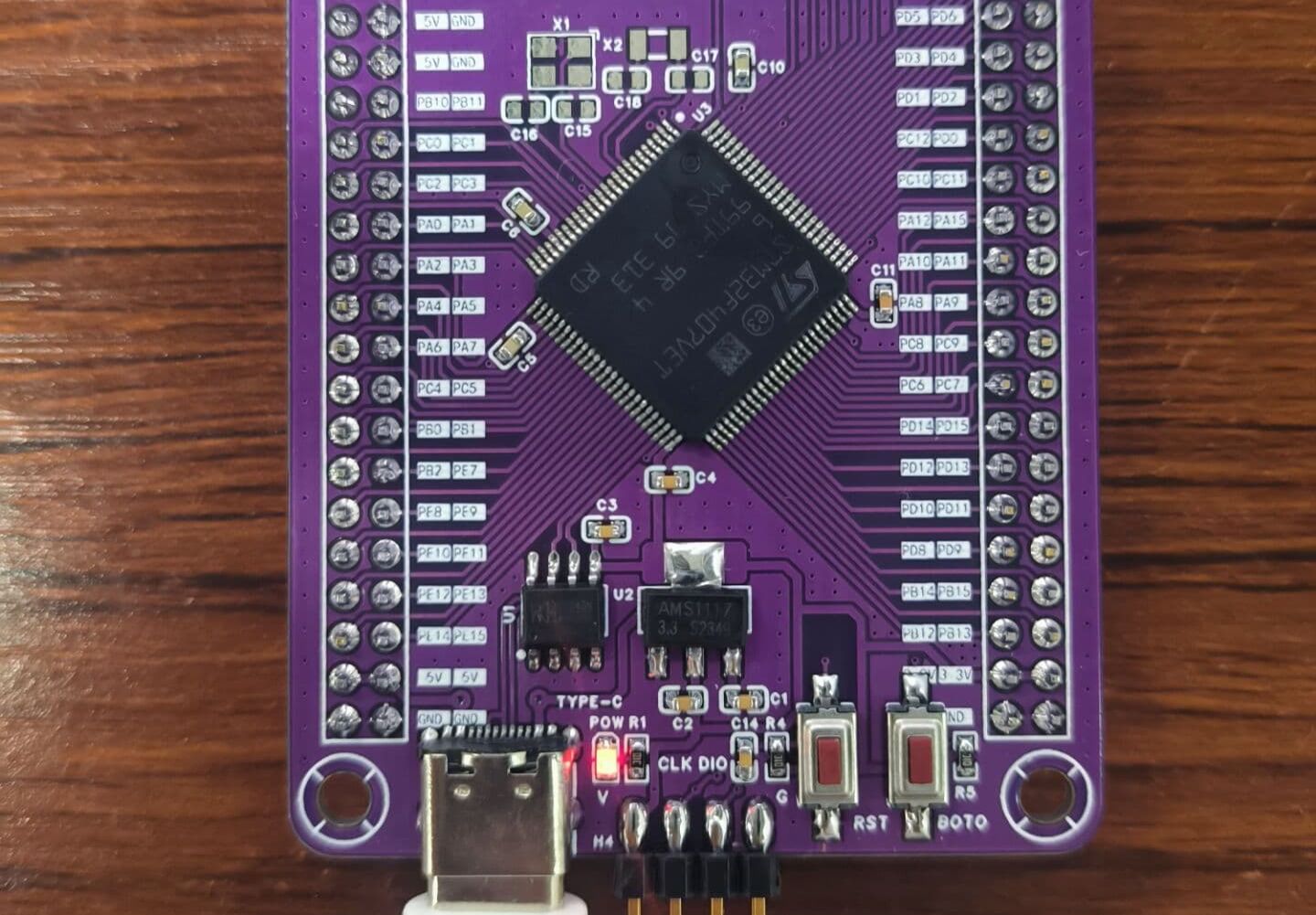

STM32F407VET6 core board

Overview

MCU Features for the Electronic Design Contest :

32-bit ARM Context-M4 core, 168MHz clock speed,
512KB ROM + 192KB SRAM,
3 x 12-bit ADCs,
2 x 12-bit DACs.

Board Features:

Except for SWD and crystal oscillator ports, all I/O
pins are M3

compatible. Compatible with:

STM32F407Vx
, STM32F103Vx
, GD32F470Vx
, GD32F407Vx
, GD32F103Vx
, AT32F403A/407Vx
, AT32F435/437Vx.
