Nucleo-F411RE Development Board Upper Expansion Board

Overview

Nucleo Development Board Upper Layer Expansion Board Design:
This project primarily utilizes the Nucleo-F411RE development board manufactured by STMicroelectronics, leveraging its expansion interfaces for direct upper-layer integration.

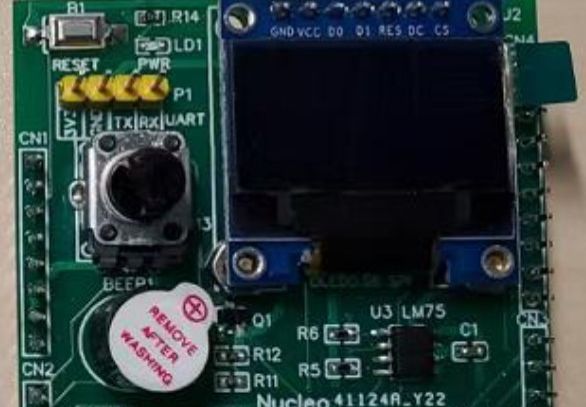

This design mainly adds an OLED display module, a buzzer module, an A/D acquisition expansion module, a serial port expansion module, and a temperature sensor module to expand the functionality of the original Nucleo-F411RE development board.
