AIR401/LT5805A Development Board

Overview

The Hezhou Air401 development board, as confirmed by customer service, is no longer in use. The good news is that the so-called Air401 is actually an LT5805A, a combined LT8960L and PY32F002B chip. Check out the Taobao store "Juxin Integrated Circuits" for an SDK; it supports 2.4GHz communication and Bluetooth broadcasting, and costs less than 1 RMB. Specific parameters are as follows:

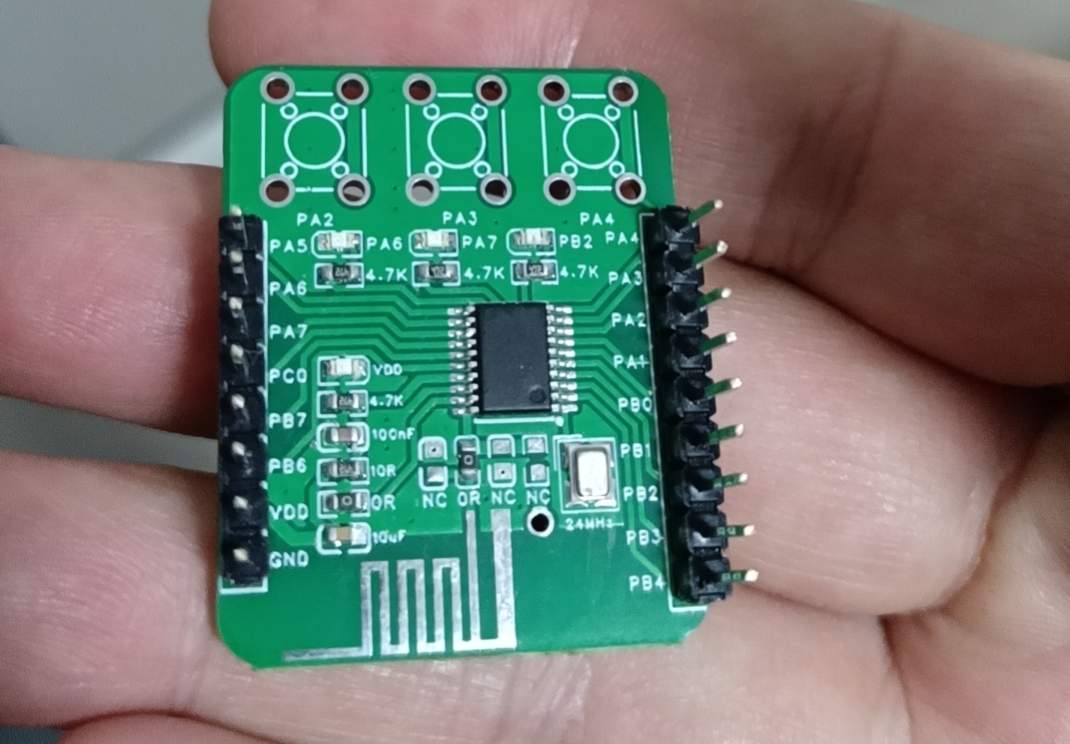

Development board size: 2.64 * 3.12 CM, very small. It has an onboard SHT30 temperature and humidity sensor (optional), with all pins exposed.

The Type-C port is only for power supply and is not essential. The Air401 only supports SWD programming and does not support serial communication. Please prepare a DPlink or other SWD-compatible link. Programming can be done using PyOCD: `
pyocd flash -t PY32F002Bx5 -f 100kHz ./Air401.hex`

PDF_AIR401-LT5805A Development Board.zip

Altium_AIR401_LT5805A development board.zip

PADS_AIR401_LT5805A development board.zip

BOM_AIR401_LT5805A Development Board.xlsx

95692

2.4-inch TFT screen adapter board

ST7789 features a 2.4-inch TFT LCD display with a 240x320 high-definition IPS screen.

2.4-inch TFT screen adapter board
supports 8/10-pin FPC sockets and headers

[Taobao] https://m.tb.cn/h.5x1w4j8OAXVTtQY?tk=jhcHWMb2uuG CA6496 "2.4-inch LCD display, 2.4-inch TFT LCD display, 240x320 high-definition IPS display ST7789" Click the link to open directly or search on Taobao.

GD32E230 program.zip

GD32 LCD screen driver source code.zip

2.40IPS Soldering 18-pin ST7789 Technical Data ZJY240K-IG01.zip

PDF_2.4-inch TFT screen adapter board.zip

Altium 2.4-inch TFT screen adapter board.zip

PADS 2.4-inch TFT screen adapter board.zip

BOM_2.4-inch TFT screen adapter board.xlsx
