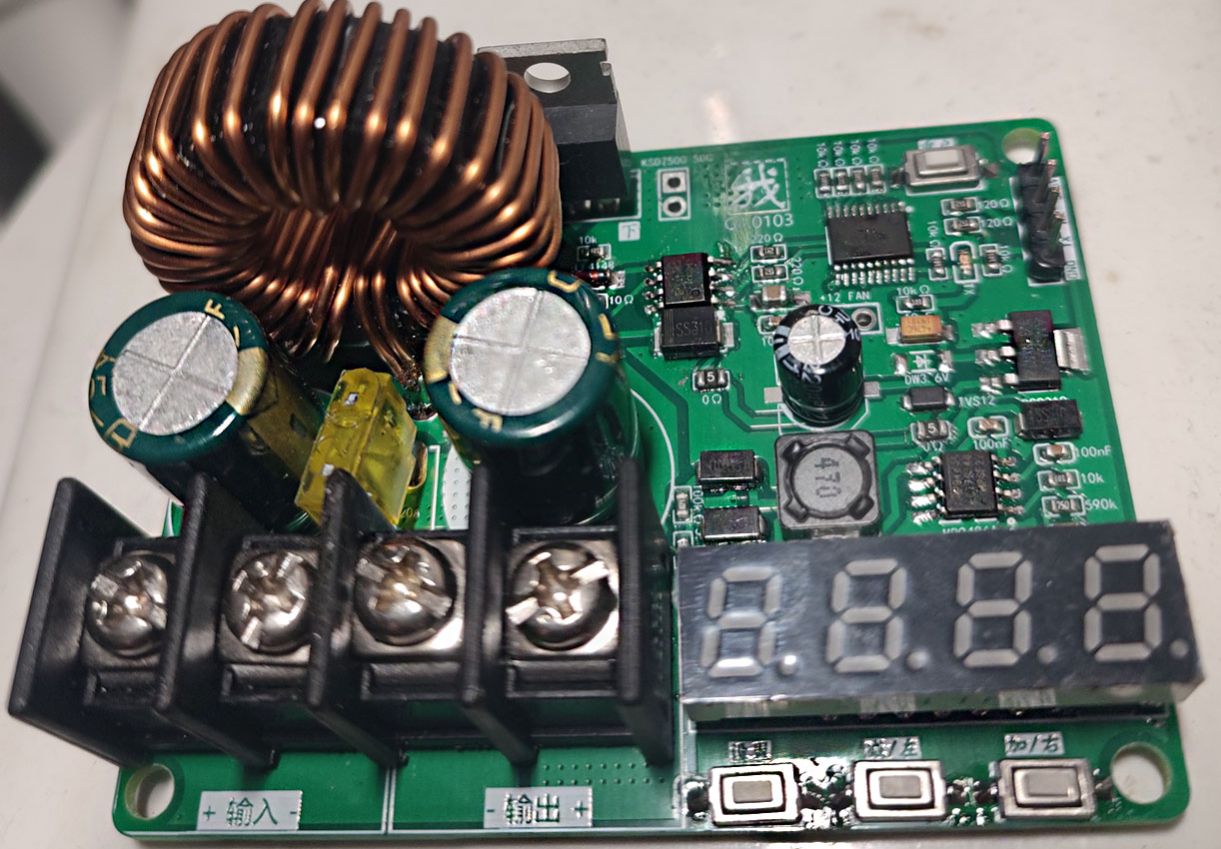

MPPT Solar Controller AIR001

Overview

【Introduction】
This open-source project uses the AIR001 main controller to achieve simplicity and ease of use. It incorporates the MPPT algorithm and supports solar charging for various batteries.

【Basic Parameters】
Operating Voltage: 10-90V
Rated Current: 20A
Numerical Control Algorithm: MPPT Perturbation Algorithm
Adjustable Output Voltage Range: 10-85V
QQ Discussion Group: 483012638

【Update Log】
20240101 Due to the CN3722's maximum voltage being only 28V and maximum current being 5A, this product was designed...
