VFD-ESP32-Clock

Overview

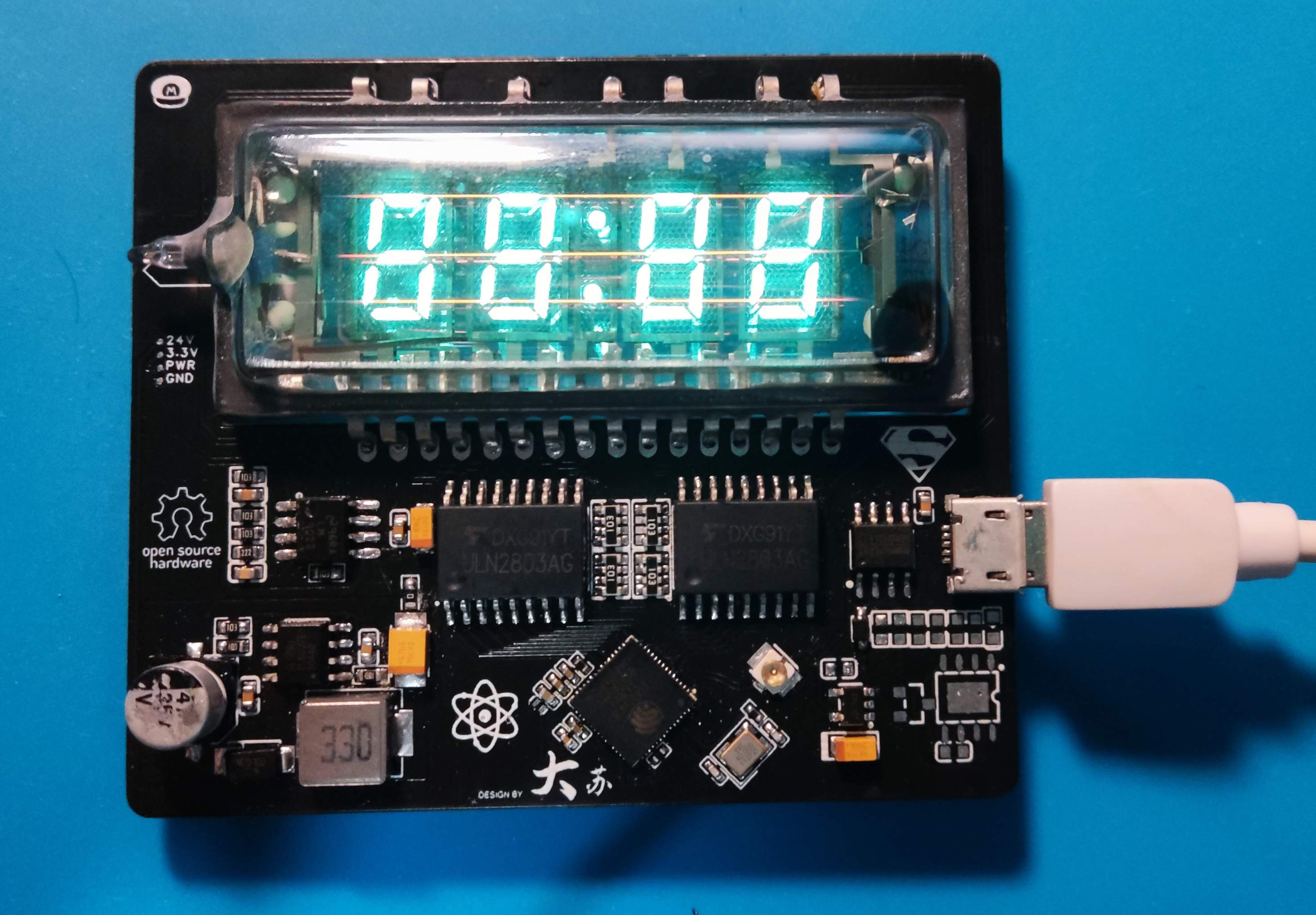

This is a DIY project for building a VFD clock with an ESP32S2, IVL2-7/5 VFD tubes, and a ULN2803 Darlington transistor array, powered by an LM9022 and an XL6007.

Source code: https://github.com/dasudiy/esp32-vfdclock
