Mouse-Serial Port Conversion_CH9350L

Overview

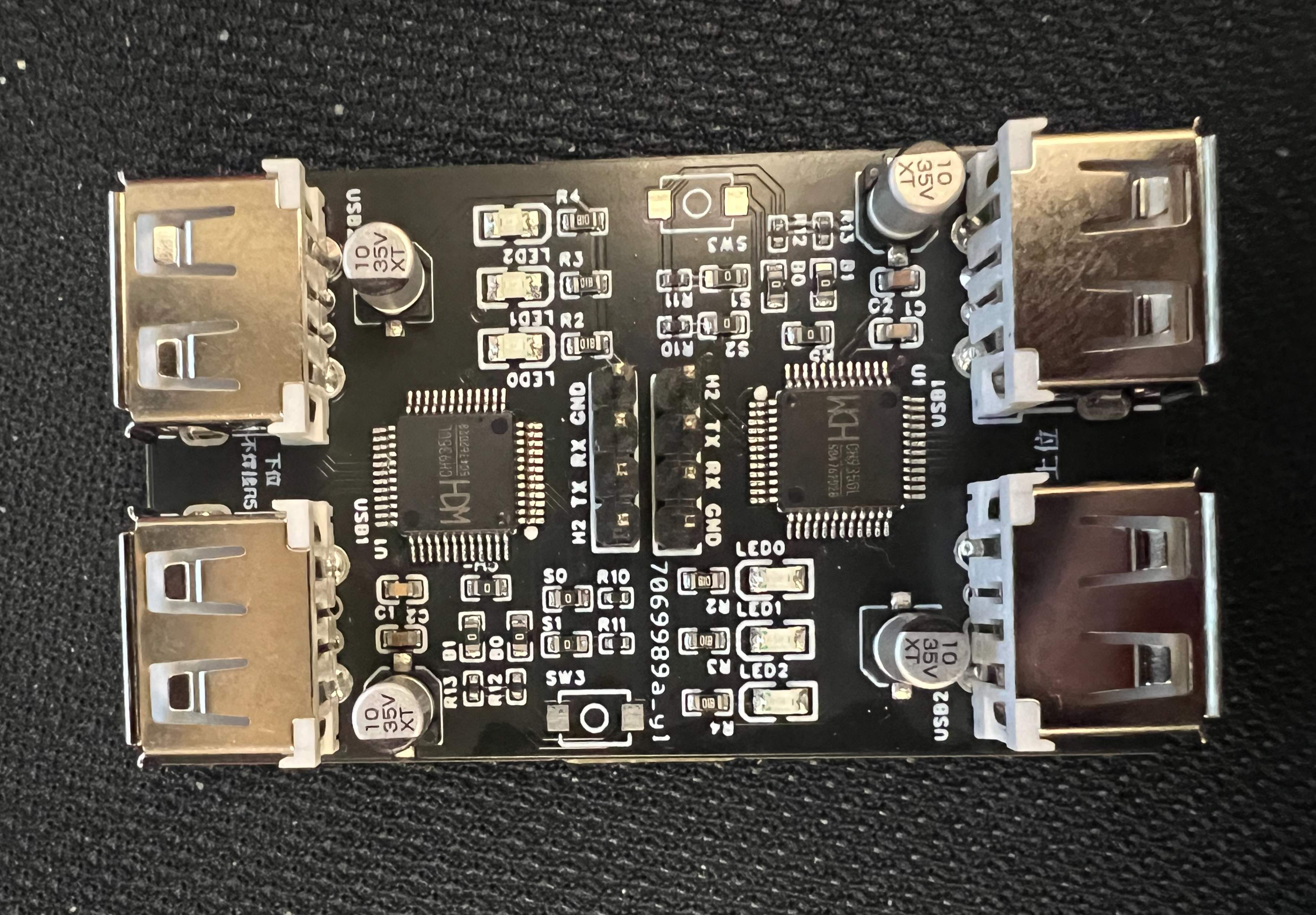

Circuit board purpose: Mouse to serial port, serial port to mouse; allows for processing of intermediate serial port data.

Operating states:
State 2

; Baud rate:
300000

and above. Currently, this circuit board
only has DM and DP ports on the host computer, so there is only one port.

The following is from the official documentation:

Pin Name
State 0/1 (Default)
State 2
State 3
State 4

S0
1
0
1
0

S1
1
1
0
0

Baud Rate
115200 (Default)
57600
38400
300000

BAUD1
1
0
1
0

BAUD0
1
1
0
0

Lower Computer (Default)
Host Computer

SEL
1
0
