esp01s-wled

Overview

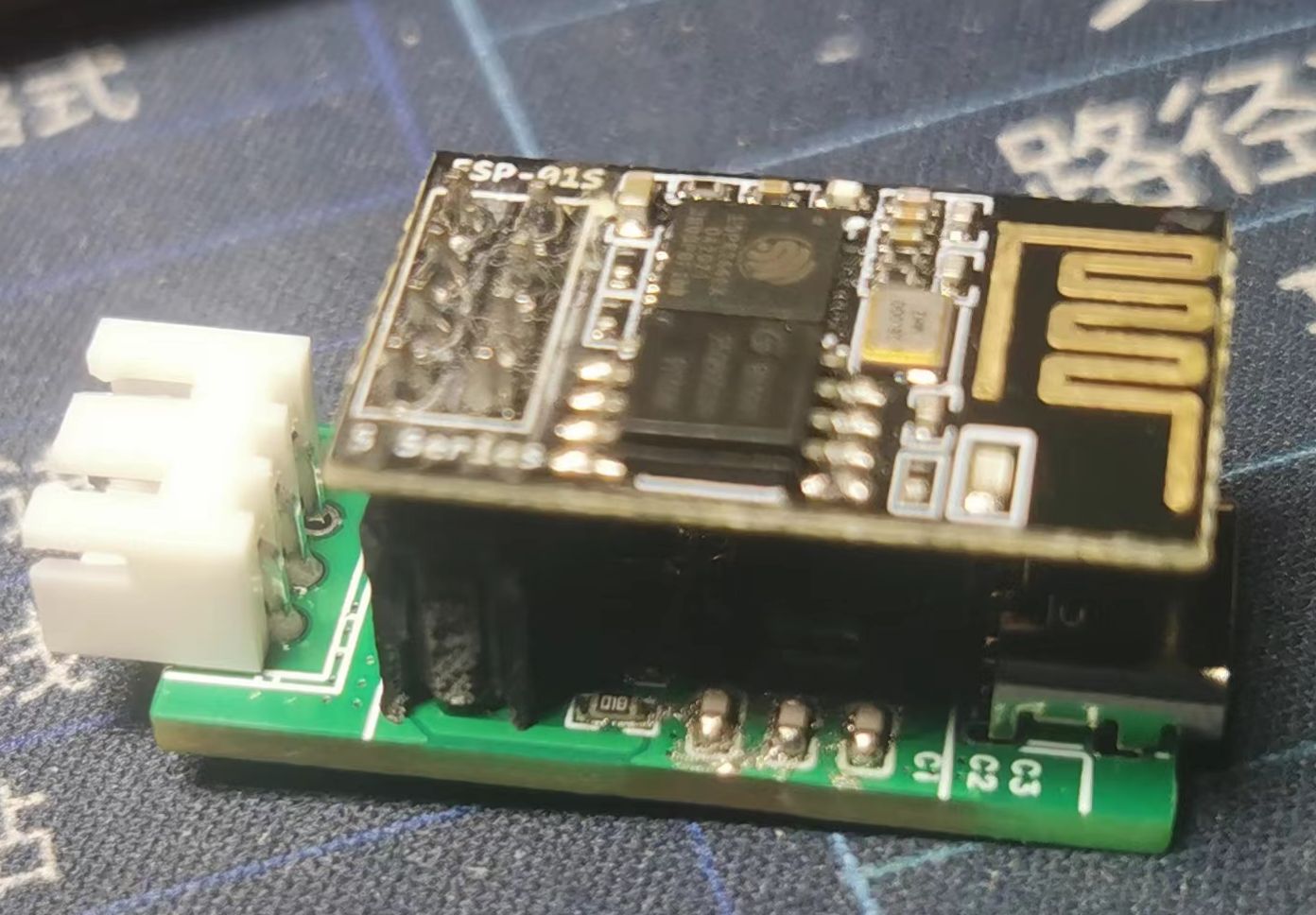

Ready-made RGB controllers are too expensive; this will only cost a few dollars to buy the components.
The LED strip is powered directly by a Type-C connector, so pay attention to the input voltage.
It will still generate heat, so consider adding heatsinks for prolonged use or if there are many LEDs.
Reference link: https://oshwhub.com/willxu2001/esp01s_wled
