MAXREFDES77#: Dual-channel current sensing peripheral module

Overview

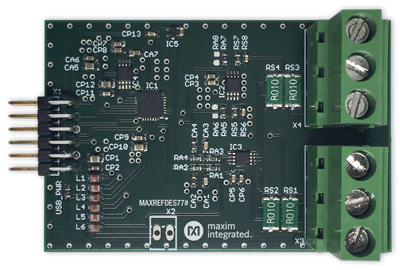

The MAXREFDES77# peripheral module provides the necessary hardware circuitry to allow the MAX44285 dual-channel high- side current- amplifier to be connected to any system configured for SPI communications using a Pmod™-compatible expansion port. The IC has a common-mode input with a voltage range of 2.7V to 76V and a small signal bandwidth of 80kHz. It is ideal for connecting to SAR ADCs and used in multi-channel, multiplexed data acquisition systems.

For detailed operating information on the IC, please refer to the MAX44285 IC data sheet; for detailed information on the Munich circuit board and GUI, please refer to the USB2PMB1# (Munich) adapter circuit board data sheet.

characteristic

2.7V to 76V input common-mode voltage
Low input offset voltage of 12µV (max)
0.1% (max) low gain error
Gain = 20V/V and 100V/V
RoHS compliant
Proven PCB layout
Fully installed and tested
