VCA820.

Showing 9 Results for VCA820., including VCA820,VCA820ID, etc. You can look for possible substitutions between devices by comparing the similarities and differences between them.

Part Number	Manufacturer	Description	Datasheet
VCA820	Texas Instruments	VCA820 150MHz BW with linear in dB gain control variable gain amplifier	Download
VCA820ID	Texas Instruments	150MHz BW with linear in dB gain control variable gain amplifier 14-SOIC -40 to 85	Download
VCA820IDG4	Texas Instruments	150MHz BW with linear in dB gain control variable gain amplifier 14-SOIC -40 to 85	Download
VCA820IDGSR	Texas Instruments	150MHz BW with linear in dB gain control variable gain amplifier 10-VSSOP -40 to 85	Download
VCA820IDGSRG4	Texas Instruments	Special Purpose Amplifiers 150MHz BW variable gain amp	Download
VCA820IDGST	Texas Instruments	150MHz BW with linear in dB gain control variable gain amplifier 10-VSSOP -40 to 85	Download
VCA820IDGSTG4	Texas Instruments	150MHz BW with linear in dB gain control variable gain amplifier 10-VSSOP -40 to 85	Download
VCA820IDR	Texas Instruments	150MHz BW with linear in dB gain control variable gain amplifier 14-SOIC -40 to 85	Download
VCA820IDRG4	Texas Instruments	Special Purpose Amplifiers 150MHz BW variable gain amp	Download

VCA820. Related Product Datasheets：

Part Number	Datasheet
VCA820ID 、 VCA820IDG4 、 VCA820IDGSR 、 VCA820IDGST 、 VCA820IDGSTG4 、 VCA820IDR	Download Datasheet
VCA820IDGSRG4 、 VCA820IDRG4	Download Datasheet
VCA820	Download Datasheet

VCA820. Related Products：

Part Number	VCA820ID	VCA820IDG4	VCA820IDGSR	VCA820IDGST	VCA820IDGSTG4	VCA820IDR
Description	150MHz BW with linear in dB gain control variable gain amplifier 14-SOIC -40 to 85	150MHz BW with linear in dB gain control variable gain amplifier 14-SOIC -40 to 85	150MHz BW with linear in dB gain control variable gain amplifier 10-VSSOP -40 to 85	150MHz BW with linear in dB gain control variable gain amplifier 10-VSSOP -40 to 85	150MHz BW with linear in dB gain control variable gain amplifier 10-VSSOP -40 to 85	150MHz BW with linear in dB gain control variable gain amplifier 14-SOIC -40 to 85
Brand Name	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Parts packaging code	SOIC	SOIC	MSOP	MSOP	MSOP	SOIC
package instruction	SOIC-14	GREEN, PLASTIC, MS-012AB, SOIC-14	TSSOP, TSSOP10,.19,20	TSSOP, TSSOP10,.19,20	TSSOP, TSSOP10,.19,20	SOIC-14
Contacts	14	14	10	10	10	14
Reach Compliance Code	compli	compli	compli	compli	compli	compli
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G14	R-PDSO-G14	S-PDSO-G10	S-PDSO-G10	S-PDSO-G10	R-PDSO-G14
JESD-609 code	e4	e4	e4	e4	e4	e4
length	8.65 mm	8.65 mm	3 mm	3 mm	3 mm	8.65 mm
Humidity sensitivity level	2	2	2	2	2	2
Maximum negative supply voltage (Vsup)	-6 V	-6 V	-6 V	-6 V	-6 V	-6 V
Negative supply voltage minimum (Vsup)	-3.5 V	-3.5 V	-3.5 V	-3.5 V	-3.5 V	-3.5 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of channels	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1
Number of terminals	14	14	10	10	10	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	TSSOP	TSSOP	TSSOP	SOP
Encapsulate equivalent code	SOP14,.25	SOP14,.25	TSSOP10,.19,20	TSSOP10,.19,20	TSSOP10,.19,20	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
power supply	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.1 mm	1.1 mm	1.1 mm	1.75 mm
Maximum supply current (Isup)	36 mA	36 mA	36 mA	36 mA	36 mA	36 mA
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.5 mm	0.5 mm	0.5 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3.9 mm	3.9 mm	3 mm	3 mm	3 mm	3.9 mm
Is it lead-free?	Lead free	-	Lead free	Lead free	-	Lead free
Factory Lead Time	1 week	-	6 weeks	6 weeks	-	6 weeks

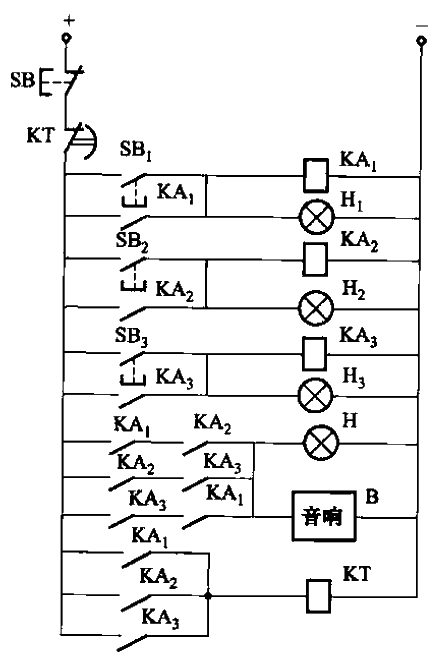

Effective signal circuit for weightlifting

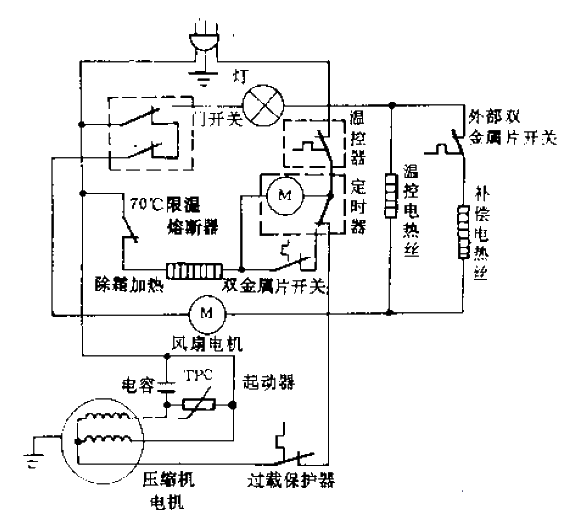

Hualing brand BCD-178W, BCD-182W refrigerator circuit

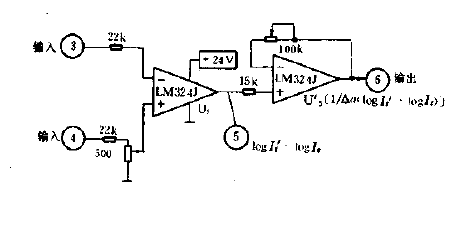

Differential amplification and gain amplification circuit diagram

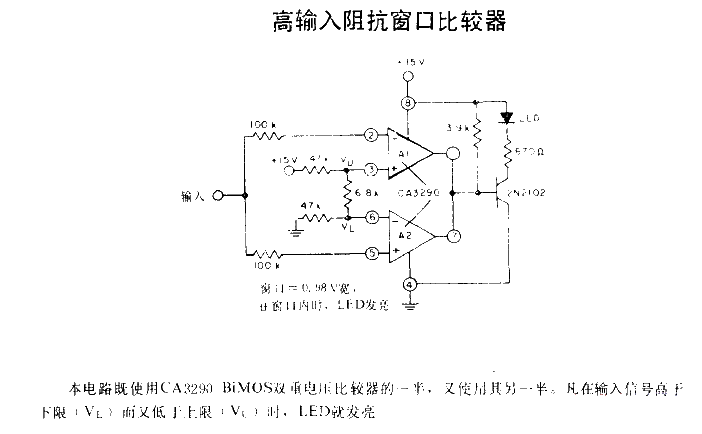

High input impedance window comparator

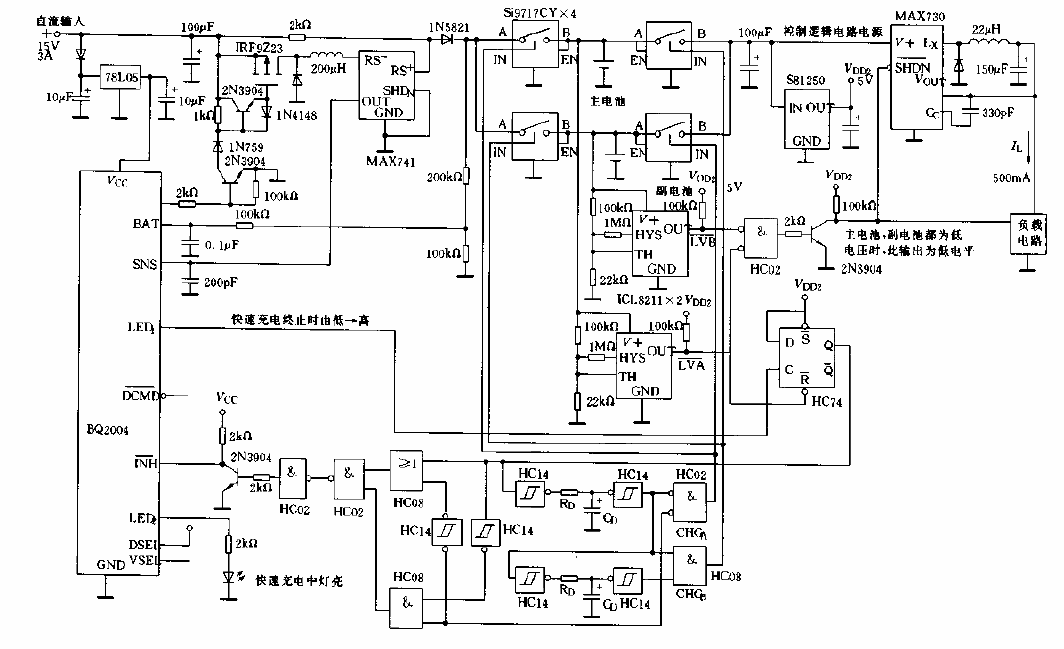

Control logic copper circuit diagram

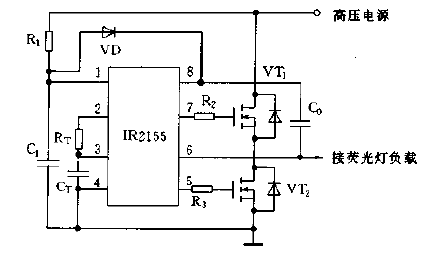

Typical application circuit diagram of IR2155

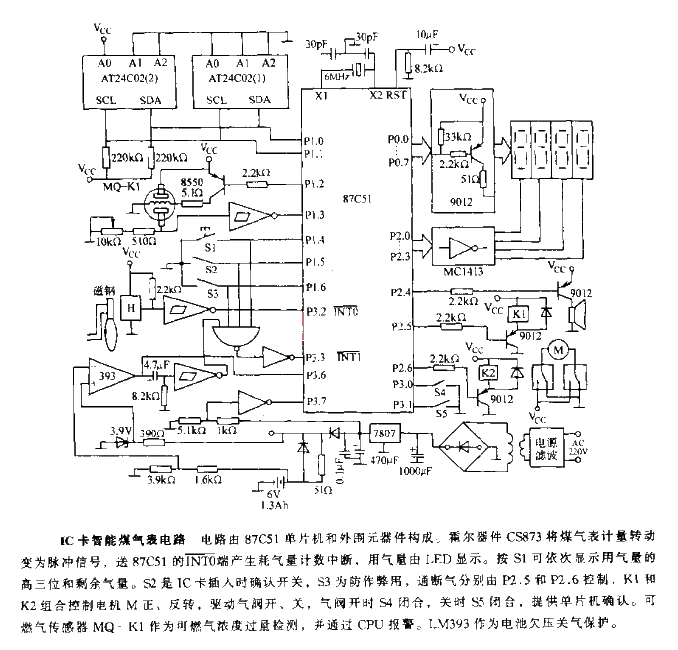

IC card smart gas meter circuit

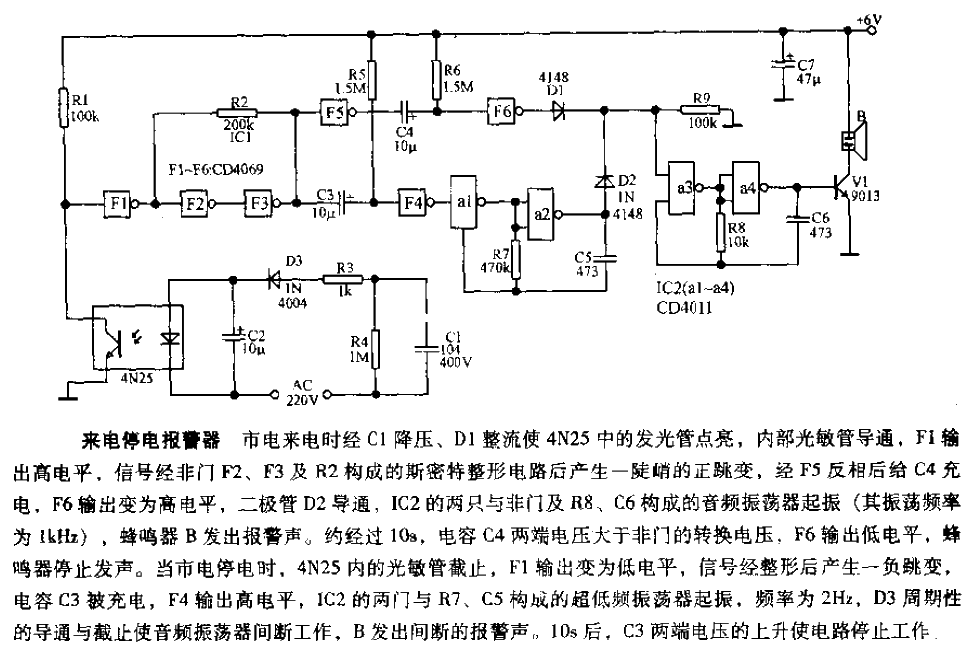

Incoming power outage alarm

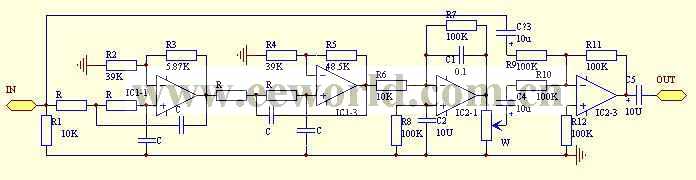

Excellent performance two-channel subwoofer circuit

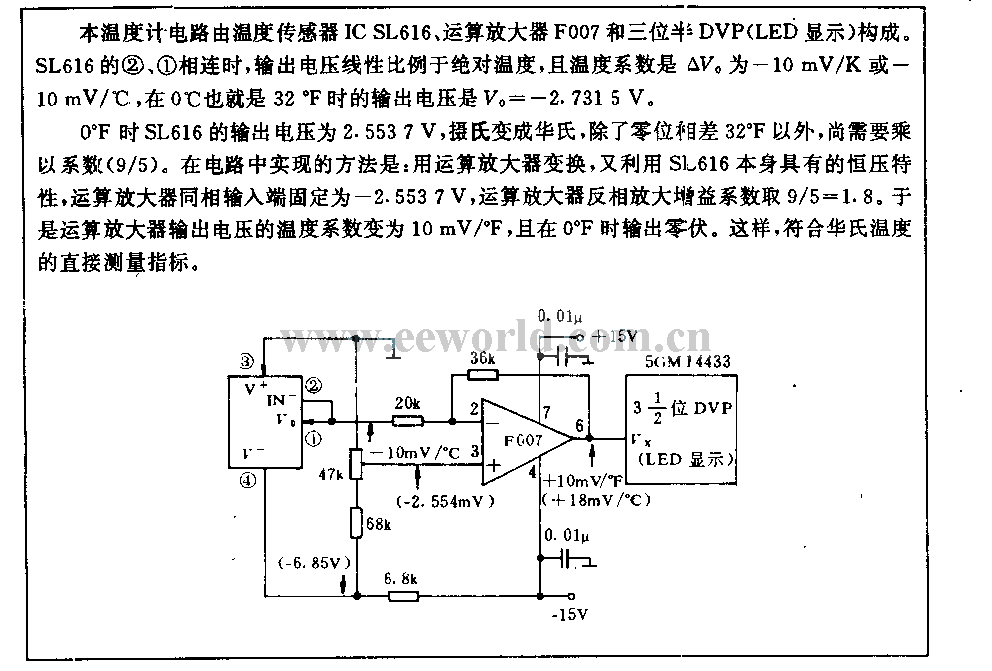

Fahrenheit Thermometer Circuit
