Interfaces, Relay Modules and Carriers
Isolated DPDT, 35 or 32 DIN Rail
RC2 / RM2 (Double Pole Double Throw)

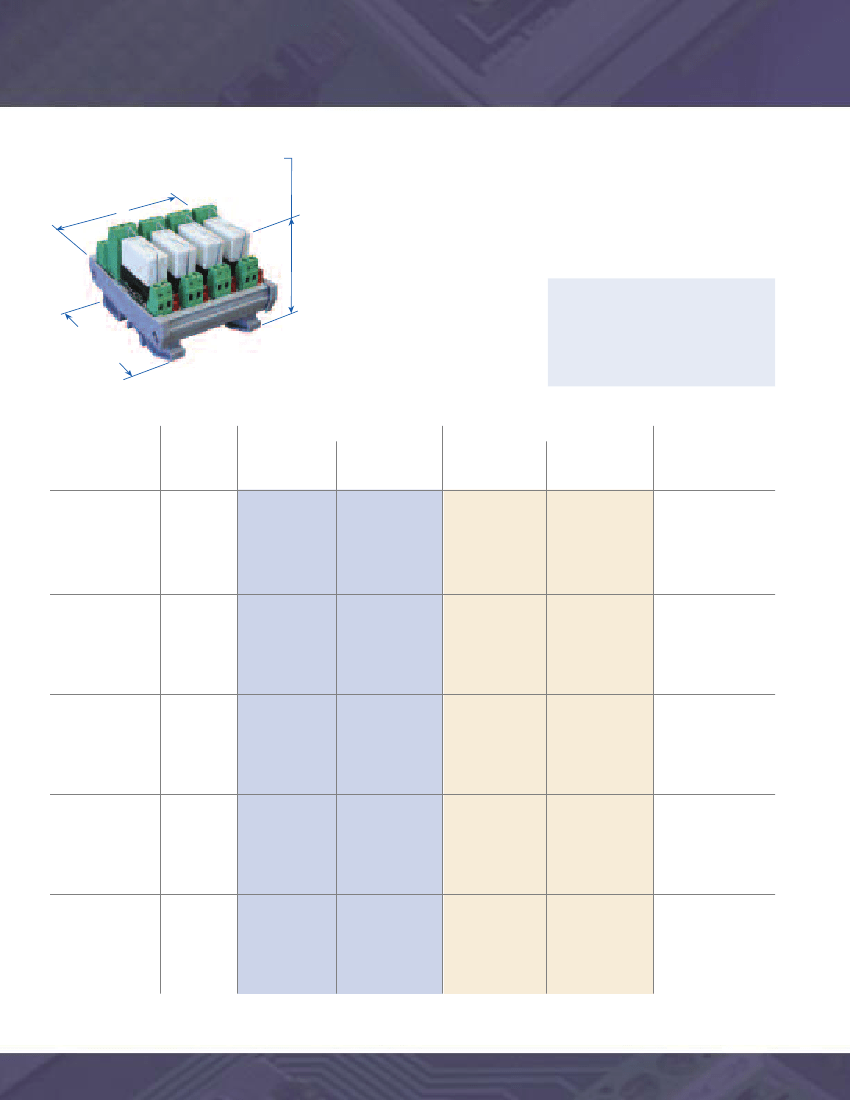

TS35x7.5 71 mm (2.60 in.)
TS32x15 76 mm (2.99 in.)
Isolated channels (no bus) allow control of each relay by a different logic system, if necessary. Mix sourcing
(positive switching, Vcc on/off) and sinking (negative switching, ground on/off) on a single multi-relay
module. Provide spare relay channels for future needs without committing to a specific logic power supply,
and without committing coil-drive power for more than one relay at a time.
Altech Relay Modules provide high density packaging of miniature general purpose relays with Single Pole
Double Throw (Form C) and Double Pole Double Throw (2 Form C) contact configurations and low current
AC and DC coils. Load your own relays in our RC Relay Carrier, or order the RM Relay Module complete with
relays.
Call us with your custom module requirements!
• Screw-Cage Clamp Connections
• Spring Clamp Terminals
• LED Coil Voltage Indicator
• Reverse DC Polarity LED Protection
• Surge Suppression with DC Coil
• DIN Rail Mount, Panel Mount Available
L
Technical Information
Current ..................8 A
Voltage (max) ........250V AC / 24V DC
Wire Range ...........0.5-4 mm
2
/ 30-14 AWG
Torque ...................0.5-4 Nm / 4 lbs-in.
Stripping Length ...8 mm
DPDT
Number of Channels
1 Channel
Coil Voltage
12V DC
24V DC
110V AC
220V AC
2 Channel
12V DC
24V DC
110V AC
220V AC
4 Channel
12V DC
24V DC
110V AC
220V AC
8 Channel
12V DC
24V DC
110V AC
220V AC
16 Channel
12V DC
24V DC
110V AC
220V AC
m )
m in .
87 .43
(3
Screw terminal
Carrier Only
Module
with Relays
Part Number
Part Number
8945.5
8951.5
8953.5
8954.5
8949.6
8951.6
8953.6
8954.6
8955.5
8956.5
8957.5
8959.5
8955.6
8956.6
8957.6
8959.6
8963.5
8972.5
8995.5
8999.5
8945.2
8951.2
8953.2
8954.2
8949.3
8951.3
8953.3
8954.3
8955.2
8956.2
8957.2
8959.2
8955.3
8956.3
8957.3
8959.3
8963.2
8972.2
8995.2
8999.2
Spring terminal
Carrier Only
Module
with Relays
Part Number
Part Number
8945.5/S
8951.5/S
8953.5/S
8954.5/S
8949.6/S
8951.6/S
8953.6/S
8954.6/S
8955.5/S
8956.5/S
8957.5/S
8959.5/S
8955.6/S
8956.6/S
8957.6/S
8959.6/S
8963.5/S
8972.5/S
8995.5/S
8999.5/S
8945.2/S
8951.2/S
8953.2/S
8954.2/S
8949.3/S
8951.3/S
8953.3/S
8954.3/S
8955.2/S
8956.2/S
8957.2/S
8959.2/S
8955.3/S
8956.3/S
8957.3/S
8959.3/S
8963.2/S
8972.2/S
8995.2/S
8999.2/S
Module Length (L)
in mm (in)
21 (0.83)
21 (0.83)
21 (0.83)
21 (0.83)
40 (1.57)
40 (1.57)
40 (1.57)
40 (1.57)
79 (3.11)
79 (3.11)
79 (3.11)
79 (3.11)
157 (6.18)
157 (6.18)
157 (6.18)
157 (6.18)
311 (12.24)
311 (12.24)
311 (12.24)
311 (12.24)
18
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
DATA SUBJECT TO CHANGE WITHOUT NOTICE
