G8P-1A4P-DC9 datasheet, PDF - EEWORLD Datasheet

G8P-1A4P-DC9: CategoryMechanical and electronic products relay; File Size6MB，20 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric View All

G8P-1A4P-DC9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	G8P-1A4P-DC9	-	-	View	Buy Now

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	OMRON
Reach Compliance Code	unknown
ECCN code	EAR99
body width	27.7 mm
body height	20.1 mm
Body length or diameter	32.1 mm
Maximum coil current (DC)	0.093 A
Coil operating voltage (DC)	6.75 V
Coil power	900 mW
Coil release voltage (DC)	0.9 V
Coil resistance	97 Ω
Maximum coil voltage (DC)	9 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	30A@250VAC
Maximum contact current (AC)	30 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	G8PT
Installation features	PANEL MOUNT
operating hours	15 ms
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
physical size	32.1mm x 27.7mm x 20.1mm
Guideline	CSA; UL; VDE
Relay action	MOMENTARY
Relay function	SPST

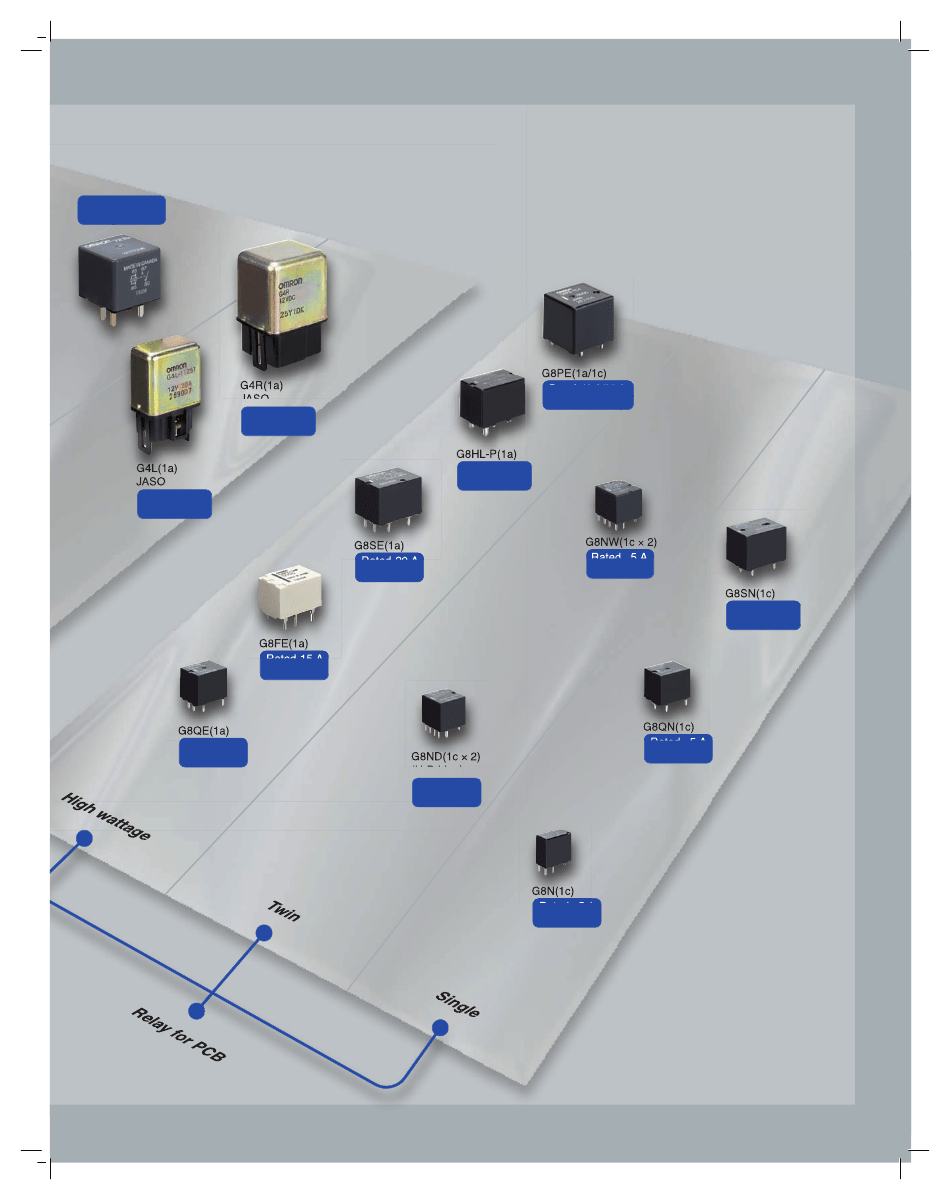

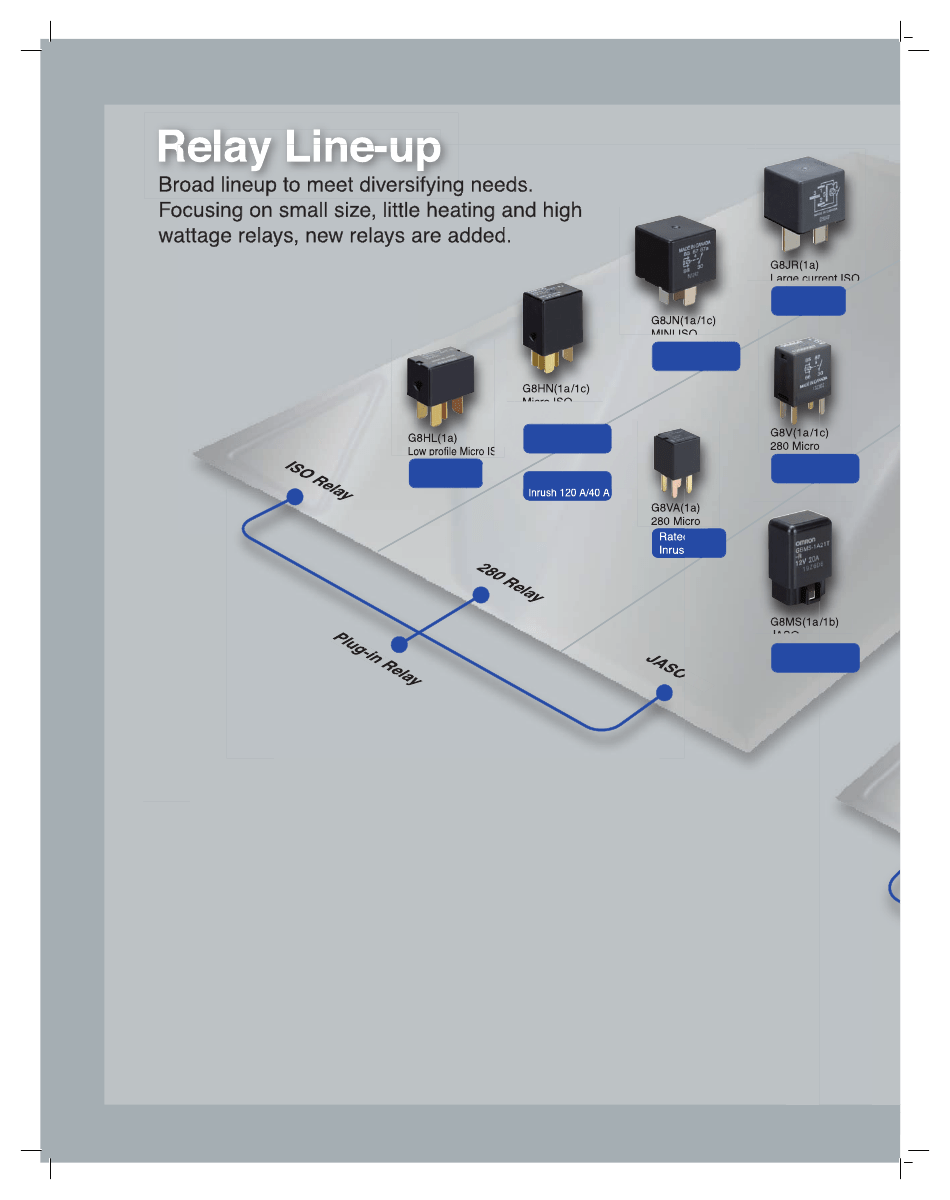

Relay type	POWER/SIGNAL RELAY
release time	10 ms
surface mount	NO
Termination type	SOLDER
