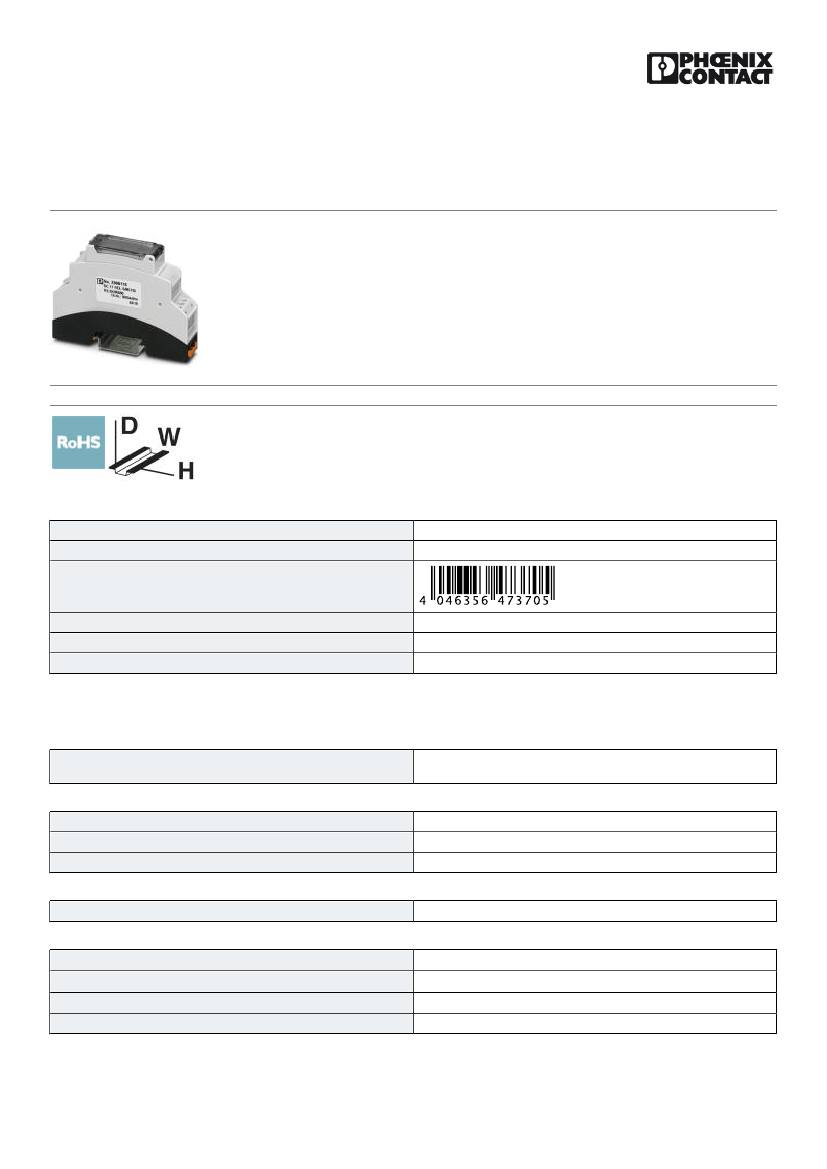

Relay Module - BC 17 REL-S/MSTB/R3,3K/R680 - 2900116
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Relay module, standard interface for fire alarm systems, with a firmly soldered miniature relay, 1 N/C contact,
input voltage: 24 V DC
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356473705
85364190
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
17.8 mm
90 mm
61 mm
Ambient conditions
Ambient temperature (operation)
-20 °C ... 50 °C
Coil side
Nominal input voltage U
N
Input voltage range in reference to U
N
Typical input current at U
N
Protective circuit
24 V DC
0.8 ... 1.1
10 mA
Bridge rectifier Bridge rectifier, varistor
11/15/2016 Page 1 / 2
https://www.phoenixcontact.com/hq/products/2900116
Relay Module - BC 17 REL-S/MSTB/R3,3K/R680 - 2900116
Technical data
Coil side
Capacitor Capacitor
Operating voltage display
LED
Contact side
Contact type
Contact material
Note
Maximum switching voltage
Limiting continuous current
1 N/C contact
AgSnO
2
, gold-plated
A 680 Ω resistor is connected in series and a 3.3 kΩ resistor is
connected parallel to the output
30 V AC
max. 3 A
General
Mounting position
Assembly instructions
any
In rows with zero spacing
Standards and Regulations
Designation
Standards/regulations
Rated insulation voltage
Rated surge voltage/insulation
Degree of pollution
Overvoltage category
Air clearances and creepage distances
EN 50178
50 V
0.5 kV / basic insulation
2
II
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
