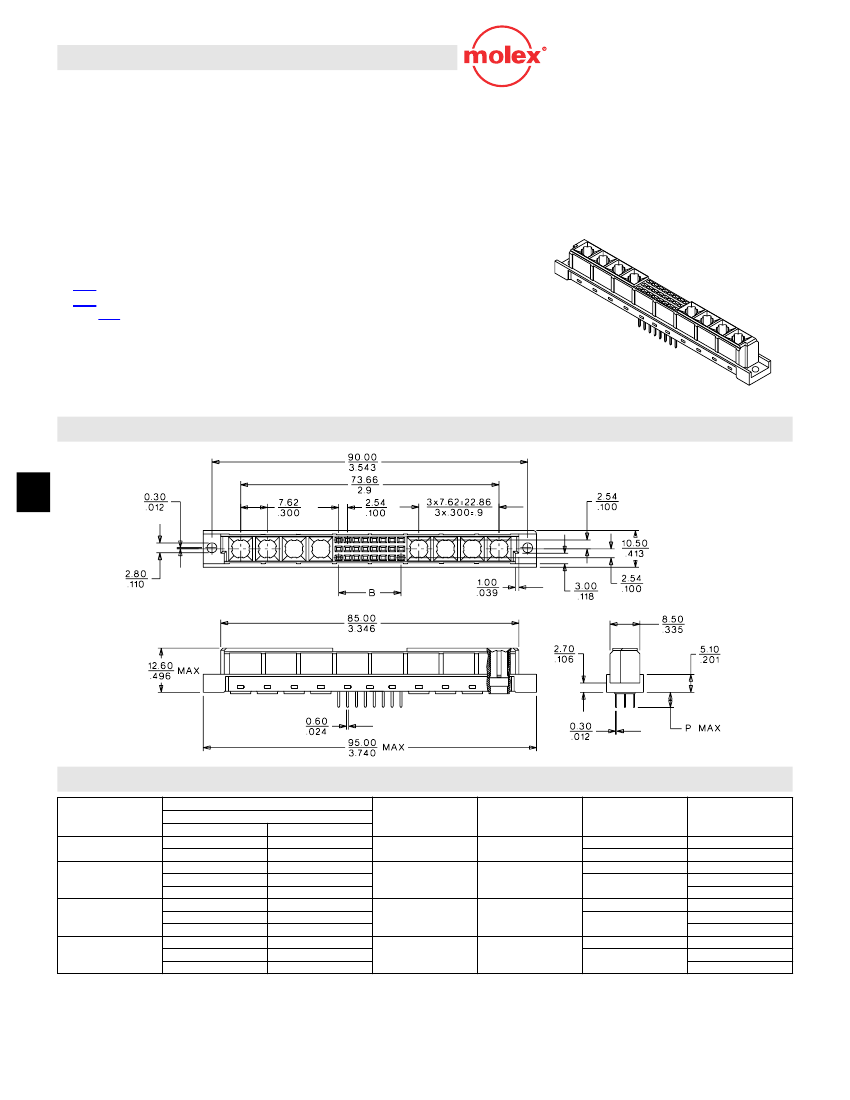

Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | compliant |
| Other features | STANDARDS: DIN 41612; IEC 603-2, TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM |
| body width | 0.413 inch |
| subject depth | 0.496 inch |
| body length | 3.74 inch |
| Body/casing type | PLUG |
| Connector type | BOARD EURO CONNECTOR |
| Contact arrangement | S42C6 |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| Contact resistance | 20 mΩ |
| Contact style | HYBRID |
| DIN compliance | YES |
| Durability | 400 Cycles |
| Filter function | NO |
| IEC compliance | YES |
| maximum insertion force | .9174 N |
| insulator material | GLASS FILLED POLYESTER |
| MIL compliance | NO |
| Manufacturer's serial number | 85048 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Loaded row name | A,B,C |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| polarization key | ENDS |
| Rated current (signal) | 1.5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.114 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 48 |
| UL Flammability Code | 94V-0 |
| 85048-0878 | 85048-0555 | 85048-1316 | 85048-0323 | |
|---|---|---|---|---|
| Description | Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug | Board Euro Connector, 64 Contact(s), 3 Row(s), Female, Straight, Solder Terminal | Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, Solder Terminal | Board Euro Connector, 80 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, |
| Maker | Molex | Molex | Molex | Molex |
| Reach Compliance Code | compliant | unknown | unknown | unknown |
| Other features | STANDARDS: DIN 41612; IEC 603-2, TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM | STANDARDS: DIN 41612; IEC 603-2, TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM | STANDARDS: DIN 41612; IEC 603-2, TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM | STANDARDS: DIN 41612; IEC 603-2, TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM |
| Connector type | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| DIN compliance | YES | YES | YES | YES |
| Filter function | NO | NO | NO | NO |
| IEC compliance | YES | YES | YES | YES |
| MIL compliance | NO | NO | NO | NO |
| Manufacturer's serial number | 85048 | 85048 | 85048 | 85048 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 3 | 3 | 3 | 3 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 48 | 64 | 32 | 80 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
