DP16V2424A15F

Description
DP16 VER 24P 24DET 15F M9*5MM
CategoryPassive components
File Size146KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

DP16V2424A15F Online Shopping

Suppliers Part Number Price MOQ In stock
DP16V2424A15F - - View Buy Now

DP16V2424A15F Overview

DP16 VER 24P 24DET 15F M9*5MM

DP16V2424A15F Parametric

Parameter NameAttribute value
Rotation typecontinuous
Encoder typeTerminal encoder
Includes switchno
sealno
partone
Adjustment typeSpindle
Number of pulses24
Adjust positiontop
Number of brakes24
Shaft typeflat
Termination typeA printed circuit board
installation anglevertical
Installation methodsurface mount
Dimensions (mm)17.3 x 16 x 6.5
Operating Speed (Max) (RPM)60

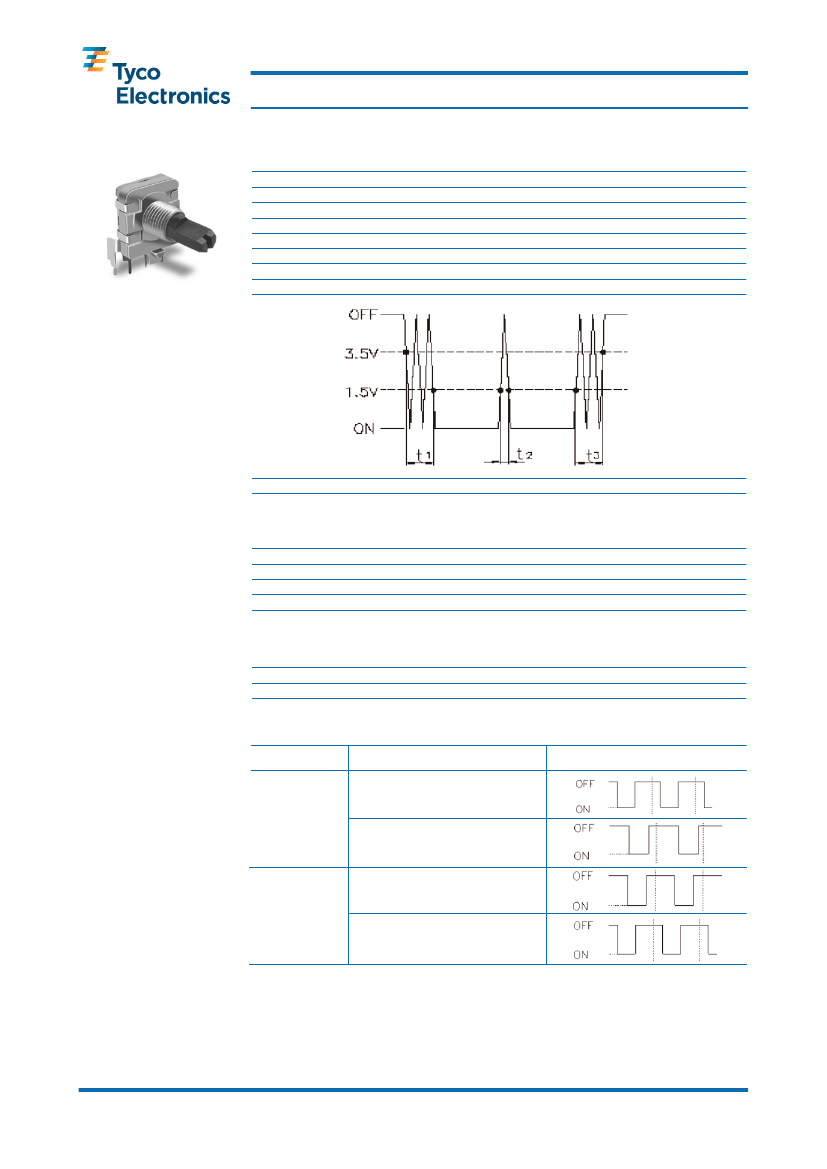

16mm Rotary Encoder
Type DP16 Series
Type DP16 Series
Characteristics -
Electrical
Pulses:
Contact Rating:
Dielectric Strength:
Insulation Resistance (min):
Operating Speed (RPM):
Electrical Travel:
Rotational Noise:
Chattering:
16mm Rotary incremental encoder for
use in electronic equipment.
Can be supplied with customisation to
standard options
12 & 24
5VDC @ 5mA
50VAC / 1mA, 1 minute
10M ohms at 50VDC
60 RPM
Continuous
t2 = 2.0 ms max (see below)
t1 & t3 = 3.0 ms max (see below)
Key Features
16mm Rotary Encoder
Incremental Type
Various Shaft Lengths
Pulse Options
Detent Options
Code Off area V = 3.5V or more. Code on area V=1.5V or less
Characteristics -
Mechanical
Total Mechanical Travel:
Detents:
Shaft Type:
Shaft Length (from Mounting Surface):
Continuous
0, 12, 24
F – Flatted
15, 20, 25
Characteristics -
Environmental
Operating Temperature
Rotational Life
-10 ~ +70 degrees C
15,000 Cycles
Output Signal Format
Shaft Rotational
Direction
Signal
Format
A (Terminal A-C)
Clockwise
B (Terminal B-C)
A (Terminal A-C)
Anticlockwise
B (Terminal B-C)
Literature No. 1-1773449-1
Issued: 02-08

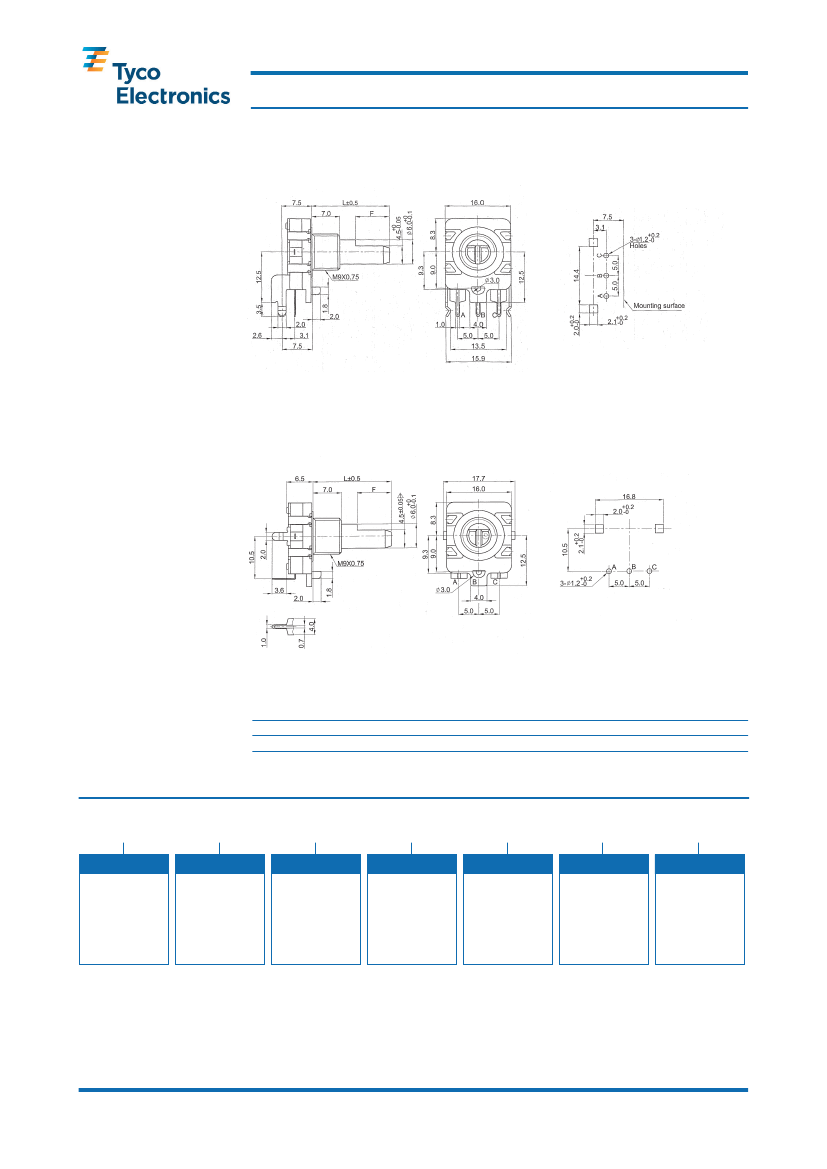

Dimensions are shown for
reference purposes only.
Dimensions are in
millimetres unless
otherwise specified.
Specifications subject to
change.
