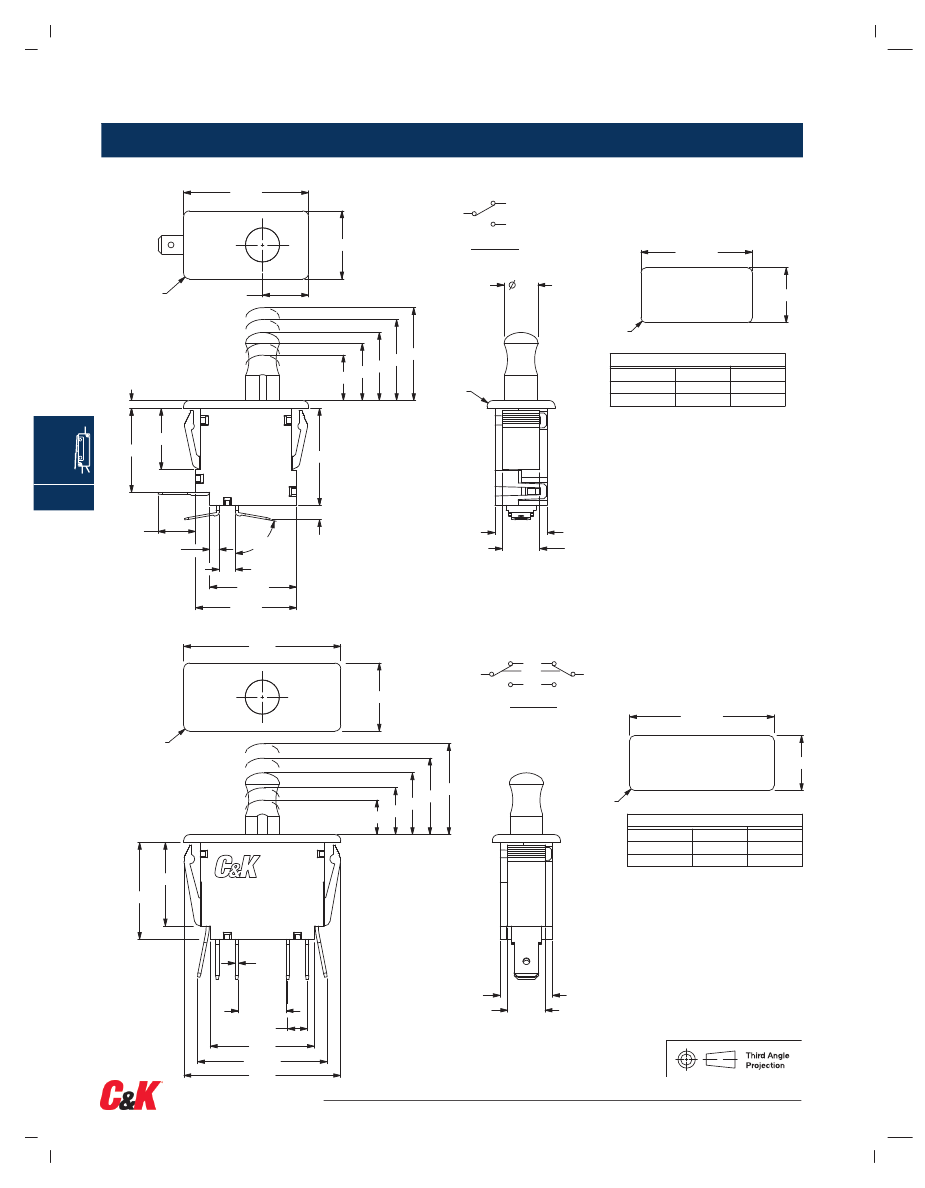

DS Series
Interlock Pushbutton Switches
Features/Benefits
•
Snap-in mounting
•
Reliable snap action mechanism
•
Latch or momentary
•
RoHS compliant
•
Halogen free material
Typical Applications
•
Interlock switch
•
Detection switch
•
Circuit interrupt
UL61058-1
Specifications
Materials
FUNCTION: Single pole double throw / Double pole double throw HOUSING, COVER, ACTUATOR, KNOB: PA 66/6 halogen free, UL94V-0
MOUNTING TYPE: Snap in style
NO & NC FIXED TERMINALS: Copper alloy
COMMON TERMINALS: Copper alloy, silver plate
Electrical
CONTACTS: Silver alloy / F5 rating gold plated over silver alloy
ELECTRICAL LIFE: see ratings chart below
RETURN SPRINGS: Stainless steel
DIELECTRIC STRENGTH: 1500 V (50-60 Hz @ sea level)
INSULATION RESISTANCE: 100 M
Ω
min.
INITIAL CONTACT RESISTANCE: 30 milli-ohms
Operating Environment
OPERATING TEMPERATURE: -40˚C to +85˚C
J
Snap-acting
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box.
D
Designation
DS
DS Series
Number of Poles
SPDT
1
2
DPDT
Rating
F5
F7
D6
D7*
0.1 (0.5)A @ 125/250 V AC 50/60 Hz 50E3
0.1A G.P. @ 125/250 V AC 50/60 Hz 50E3
0.1 (0.5)A @ 125/250 V AC 50/60 Hz 10E4
0.1A G.P. @ 125/250 V AC 50/60 Hz 10E4
10 (4)A @125/250 V AC 50/60 Hz 50E3
10A G.P. @ 125 / 250 V AC 1/3HP @ 125/250 V AC
50/60 Hz 10E3
16A G.P. @125/250 V AC 3/4HP 125/250 V AC
50/60 Hz 10E3
16 (6) A @125/250 V AC 50/60 Hz 10E3
* Note - 16A version has Q3 terminals only
International Rating Symbols
10E3
10E4
50E3
10(4)
GP
Cycles 10,000
Cycles 100,000
Cycles 50,000
Current rating: First number represents resistive rating.
Second number represents inductive (motor) rating
General purpose rating UL1054
Dimensions are shown: mm
Specifications and dimensions subject to change
S
Housing Color
NONE
White
B
Black
Terminals
Q1
4.8 x 0.5
Q2
4.8 x 0.8
Q3
6.3 x 0.8
Actuator Style
A
Momentary, Short button
B
Momentary, Long button
C
Momentary/Pulled out button (not available on D7 rating)
31 oct 16
J–85
www.ck-components.com
DS Series
Interlock Pushbutton Switches
NUMBER OF POLES
1
SPDT
31.75
COM
NC
NO
17.3
SCHEMATIC
DIM "A"
8.6
R1.5
11.7
DIM "B"
R1.27
MAX
3
4
5
PANEL MOUNTING
PANEL THICKNESS
DIM "A" mm
28.32
28.58
DIM "B" mm
13.97
13.97
1.14
2.54
2
1
2
R1.5
OPERATING POSITION (PUSH)
FREE POSITION ON AT REST
OPERATING POSITION (PULL)
PUSH OVER TRAVEL MAX
MAX TRAVEL (PULL)
15.54
21.35
24.6
COM
NC
9.55
2.38 REF
2X 80°
4.15
22.05
25.65
3.67
J
Snap-acting
N0
13.3
9.5
2
DPDT
39.9
NC2
COM2
NO2
NO1
NC1
COM1
17.3
SCHEMATIC
DIM "A"
4X R1.5
DIM "B"
5
4X R1.27
PANEL MOUNTING
PANEL THICKNESS
DIM "A" mm
36.70
36.96
DIM "B" mm
13.97
13.97
1
PUSH OVER TRAVEL MAX
2
3
4
OPERATING POSITION (PUSH)
FREE POSITION ON AT REST
OPERATING POSITION (PULL)
MAX TRAVEL (PULL)
1.14
2.54
21.2
COM
2
NC2
N0 2
N0 1
NC1
24.6
COM
1
0.8
TYP
13.3
12.15
2X 4.95
26.4
35 MAX
39.8
Dimensions are shown: mm
Specifications and dimensions subject to change
9.5
31 oct 16
J–86
www.ck-components.com
