88901342

Description
Timers MBA3F PM ANALG TIMER 24VDC 3 TO 60 SEC
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size130KB,3 Pages
ManufacturerCrouzet
Download Datasheet Parametric View All

88901342 Online Shopping

Suppliers Part Number Price MOQ In stock
88901342 - - View Buy Now

88901342 Overview

Timers MBA3F PM ANALG TIMER 24VDC 3 TO 60 SEC

88901342 Parametric

Parameter NameAttribute value
Product CategoryTimers
ManufacturerCrouzet
RoHSDetails
ProductAnalog Timer
TypeSolid State Timer
Timing Range3 s to 60 s
Display TypeAnalog
Accuracy+/- 0.2 %
Operating Temperature Range- 20 C to + 60 C
Current Rating200 mA
FeaturesTransistor
Mounting StylePanel
Operating Supply Voltage24 VDC
Factory Pack Quantity1
Termination StyleScrew
Unit Weight1 oz
22/11/2013
www.crouzet.com
MBA Ø 22 panel mounted timers MBA3F Part number 88901342
Solid state output
Panel-mounted pushbutton-type timer
Function A delay on energisation
10 timing ranges : 0.05 s to 60 min
 Supply 24 V DC and 110 →240 V DCAC 50 →60 Hz
Fast adjustment of timing period on PLCs (compatible with IEC1131)
IP 65
Part numbers
Type
88 901 342
MBA3F
Functions
A
Time ranges
3 s →60 s
Output
State
Nominal rating
200 mA
Supply voltage
24 V DC
Specifications
Repetition accuracy (with constant parameters)
Display precision
Maximum reset time by de-energisation MBA3F during
timed delay
Maximum reset time by de-energisation MBA3F after
timing
Maximum reset time by de-energisation MBA2F after
timing
Maximum reset time by de-energisation MBA2F after
timing
Solid state open collector PNP output
Voltage drop at terminals
Nominal rating
Leakage current
Electrical life (number of operations)
Protection against polarity inversions
Protection against load short circuits
Display of output state by LED : output in operation
Display of output state by LED : Power on
Dielectric strength (V rms)
Ripple
Temperature limits use (°C)
Temperature limits stored (°C)
Varistor protection against overvoltage
Drift Temperature
Drift Voltage
Conformity to standards VDE 0435 / ICE 255 / ICE 1131 /
ICE 801 4
Protection class according to NFC C 20010-IEC 529-DIN
40050 Panel-mounted
Protection class according to NFC C 20010 - IEC 529 - DIN
40050 Terminal
Housing material
Terminal capacity Single-wire
Terminal capacity Multi-wire with ferrule
Terminal screws
Tightening torque (Nm)
Weight (g)
+/-0,2 %
±5%
7 ms
5 ms
60 ms
30 ms
MBA2F : ≤ 5 V AC
MBA3F : ≤ 3 V DC
MBA2F : 400 mA at 200C (derating 5 mA/ °C)
MBA3F : 200 mA at 20 °C (derating 1.5 mA/ °C)
MBA2F : ≤ 5 mA AC
MBA3F : ≤ 0,1 mA DC
> 10
8
1500 V / 50 Hz / 1 min
± 10 %
-20 →+60
-20 →+80
+/- 0,05 %/ °C
+/- 0,2 %/V
IP65
IP10
Self-extinguishing
1 x 4 mm
2
1 x 2,5 mm
2
M3
0,5 Nm
27

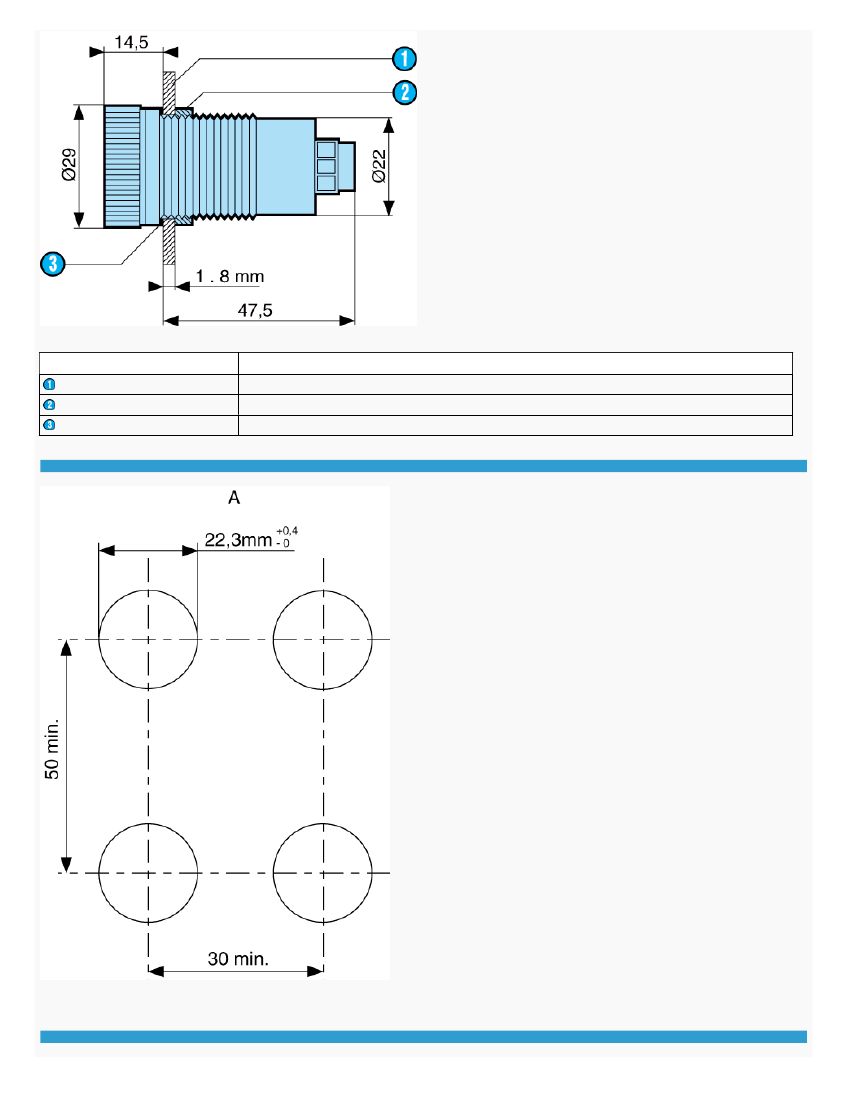

Dimensions (mm)

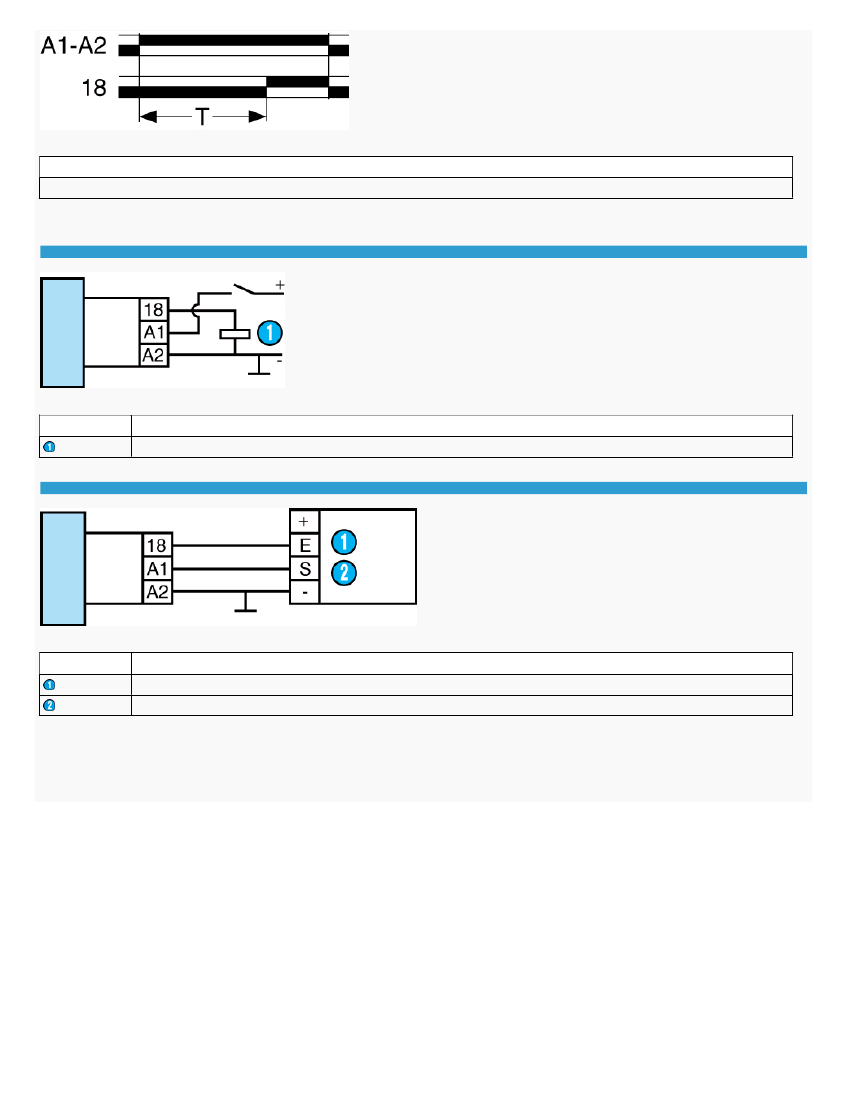

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
Significant figures and calculation rules
The data obtained through measurement often need to be sorted, analyzed, and calculated to obtain the measurement results. In order to reasonably express the measurement results, it is necessary to co...
