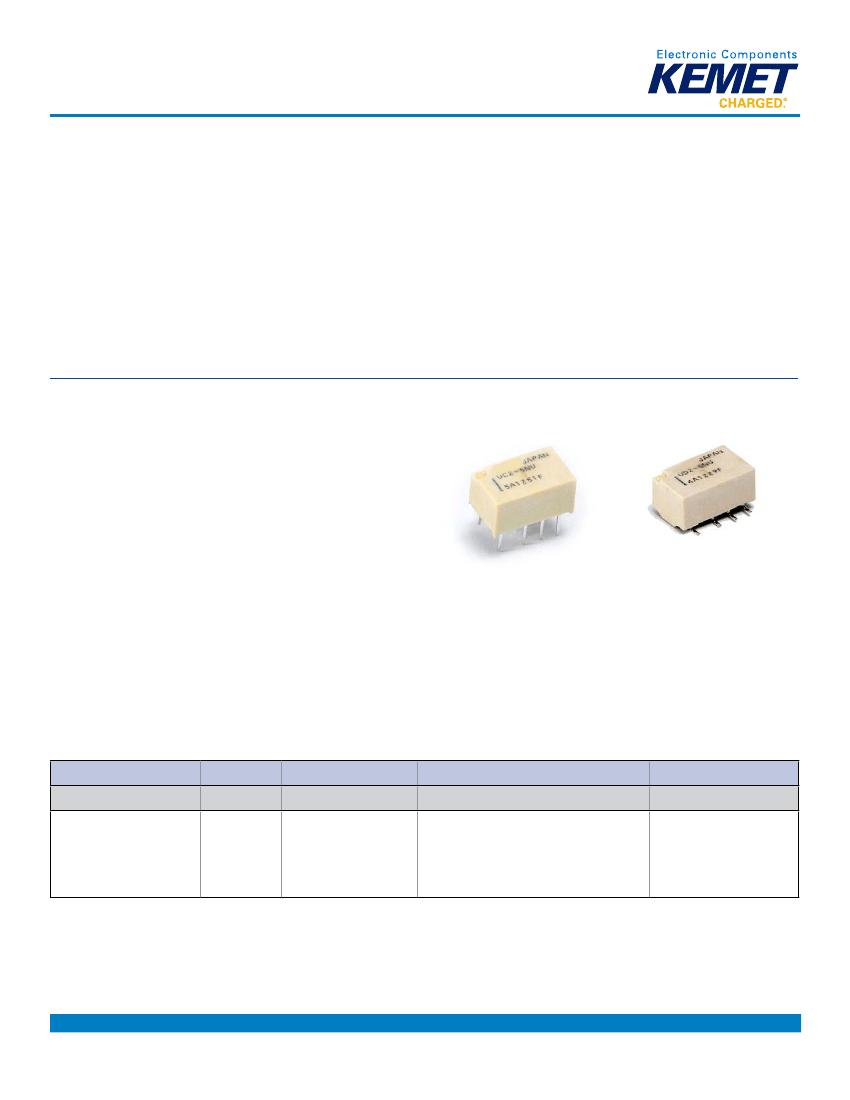

Miniature Signal Relays

UC2/UD2 Series

Overview

The KEMET UC2/UD2 miniature signal relays offer a super

compact case size in a flat package. Minimal board space

is consumed with either a through-hole or surface mount

configuration. These relays are recognized by UL and CSA,

while also being compliant with Part 68 of the FCC’s 1,500

V surge capacity.

Applications

•

Electronic switching systems

PBX

Terminal equipment

Telephone systems

Benefits

• Low power consumption (< 140 mW)

• Super compact and lightweight

• Flat package for dense mounting

• Low magnetic interference

• Tube or embossed tape and reel packaging

• UL recognized (E73266) and CSA certified (LR46266)

• Surface mount and through-hole options

Part Number System

UD2-

Series

Coil Voltage

Latch Type

Blank = Non-latch type

S = Single coil latch type

Lead Type

NU = Standard

NE = Low power consumption (Non-latch)

NUN = Minimum footprint

NEN = Low power consumption (Non-latch),

Minimum footprint

-L

Packaging

Blank = Tube

-L = Embossed tape on reel

UC2- = Through-hole mount 3 = 3 VDC

UD2- = Surface mount

4.5 = 4.5 VDC

5 = 5 VDC

12 = 12 VDC

One world. One KEMET

R7005_UC2_UD2 • 8/8/2017
