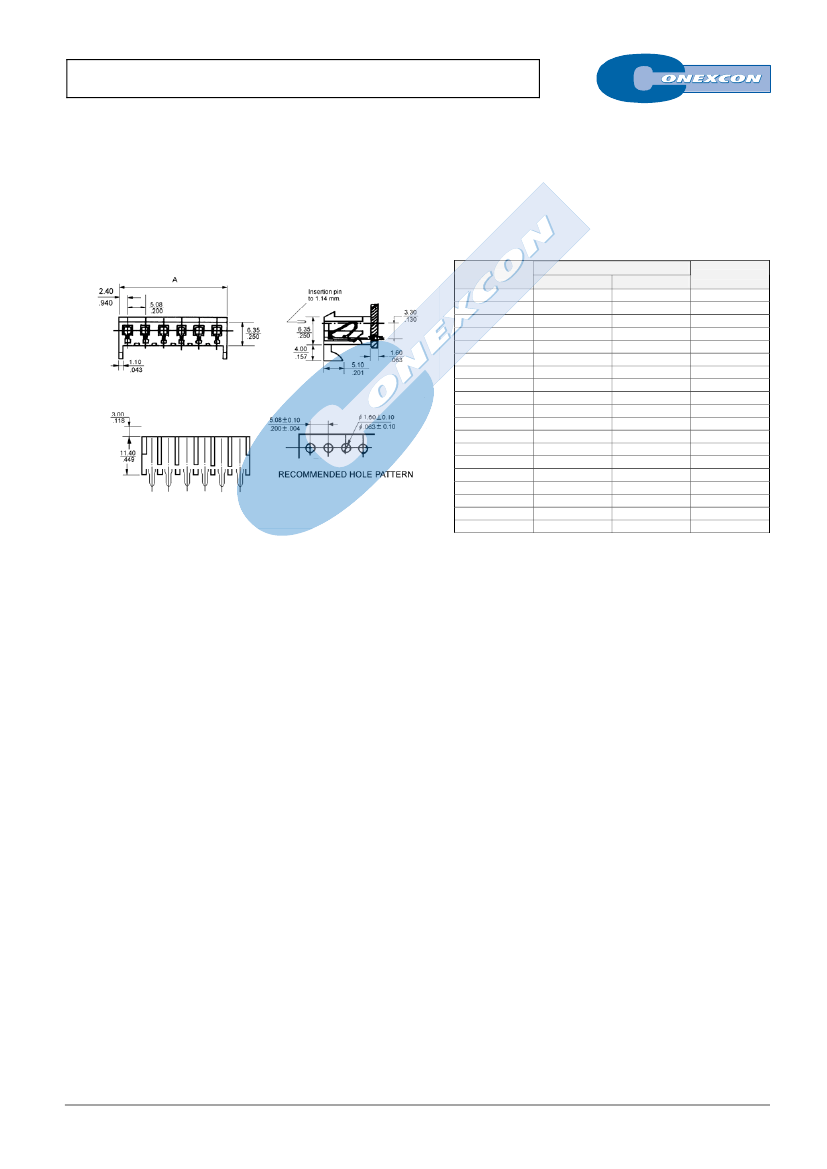

Board Connector, 14 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Plug
| Parameter Name | Attribute value |
| Reach Compliance Code | unknow |
| body width | 0.407 inch |
| subject depth | 0.449 inch |
| body length | 2.8 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN |
| Contact completed and terminated | TIN |
| Contact point gender | FEMALE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 60 Cycles |
| maximum insertion force | 14.6784 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | NYLON |
| Manufacturer's serial number | 1507 |
| Plug contact pitch | 0.2 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| PCB contact pattern | RECTANGULAR |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 5.08 mm |
| Termination type | SOLDER |
| Total number of contacts | 14 |
| Evacuation force-minimum value | 1.4734 N |
| Base Number Matches | 1 |
| 1507-2142 | 1507-2042 | 1507-2052 | 1507-2092 | 1507-2032 | 1507-2112 | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 14 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Plug | Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Plug | Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Plug | Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Plug | Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Plug | Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Plug |
| Reach Compliance Code | unknow | unknown | unknown | unknown | unknown | unknown |
| body width | 0.407 inch | 0.407 inch | 0.407 inch | 0.407 inch | 0.407 inch | 0.407 inch |
| subject depth | 0.449 inch | 0.449 inch | 0.449 inch | 0.449 inch | 0.449 inch | 0.449 inch |
| body length | 2.8 inch | 0.8 inch | 1 inch | 1.8 inch | 0.6 inch | 2.2 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN | SN | SN | SN | SN | SN |
| Contact completed and terminated | TIN | TIN | TIN | TIN | TIN | TIN |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| Dielectric withstand voltage | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V |
| Durability | 60 Cycles | 60 Cycles | 60 Cycles | 60 Cycles | 60 Cycles | 60 Cycles |
| maximum insertion force | 14.6784 N | 14.6784 N | 14.6784 N | 14.6784 N | 14.6784 N | 14.6784 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | NYLON | NYLON | NYLON | NYLON | NYLON | NYLON |
| Manufacturer's serial number | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Plug contact pitch | 0.2 inch | 0.2 inch | 0.2 inch | 0.2 inch | 0.2 inch | 0.2 inch |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Guideline | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 14 | 4 | 5 | 9 | 3 | 11 |
| Evacuation force-minimum value | 1.4734 N | 1.4734 N | 1.4734 N | 1.4734 N | 1.4734 N | 1.4734 N |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - |
| Maker | - | Conexcon Group | Conexcon Group | Conexcon Group | Conexcon Group | Conexcon Group |
