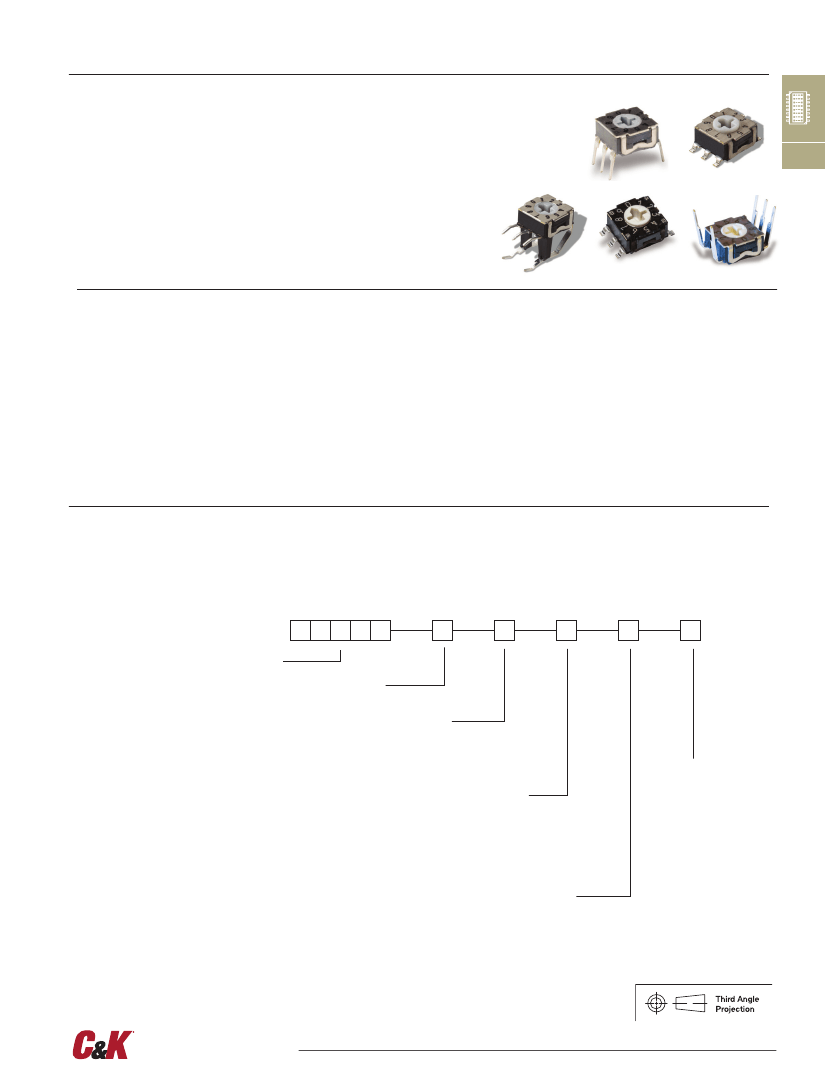

RTE Series
Low Profile Rotary DIP Switches
Features/Benefits
•
Thru-hole and surface mount
•
•
•
•
•
models
Miniature size with robust
metal cover in black or
silver nickel finish
4, 10, & 16 positions
Large choice of codings
Vertical or reverse versions
RoHS compliant
Typical Applications
•
Timers, automation components
•
Computer and peripherals
•
Alarms, access control,
smoke detectors
•
Instrumentation
H
DIP
Specifications
CONTACT RATING:
Gold: 100 mA max. 10µ A min. 30 V DC max. 20 mVDC min.
MECHANICAL LIFE: 20,000 actuations
CONTACT RESISTANCE: 100 mΩ max. initial;
150 mΩ after life
INSULATION RESISTANCE: 10
10
Ω min. initial
DIELECTRIC STRENGTH: 300 Vrms 1 mn
OPERATING TEMPERATURE: -25°C to 85°C.
STORAGE TEMPERATURE: -40°C to 85°C.
PACKAGING: N or R terminations in tube.
V termination in box. G termination in reel, 750 pieces per
reel. G termination with flush actuator, 1250 pieces per reel.
COVER: Brass, nickel plated (black or silver)
BASE: PPS
ACTUATOR: LCP
MOVABLE CONTACTS: Bronze, gold plated.
STATIONARY CONTACTS: Brass, gold plated.
TERMINALS: See page I-28 to I-29
O-RING: Silicone
Note:
Specifications and materials listed above are for switches with standard options. For
information on specific and custom switches, consult Customer Service Center.
Solderability: Wave soldering 260º/10 s.
SMT are reflow compatible according to C&K lead free specification for SMT
components PS-LF-001.
How To Order
Materials
The Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete listing
of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.
NOTE: Some of the configurations may not be available or could require some development.
R T E

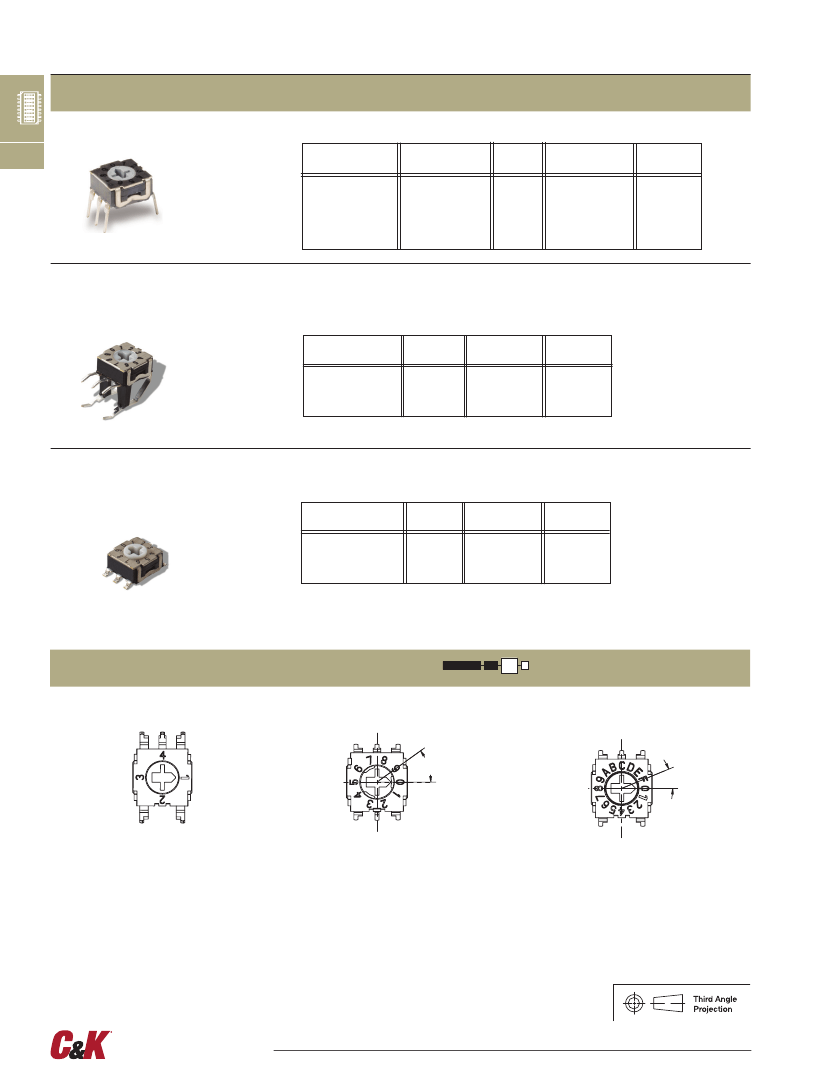

Number of Positions
RTE04
2
RTE10
3
RTE16
3
ESD Protection and top plate
0
Without ESD - standard plate
1
With ESD - standard plate
4

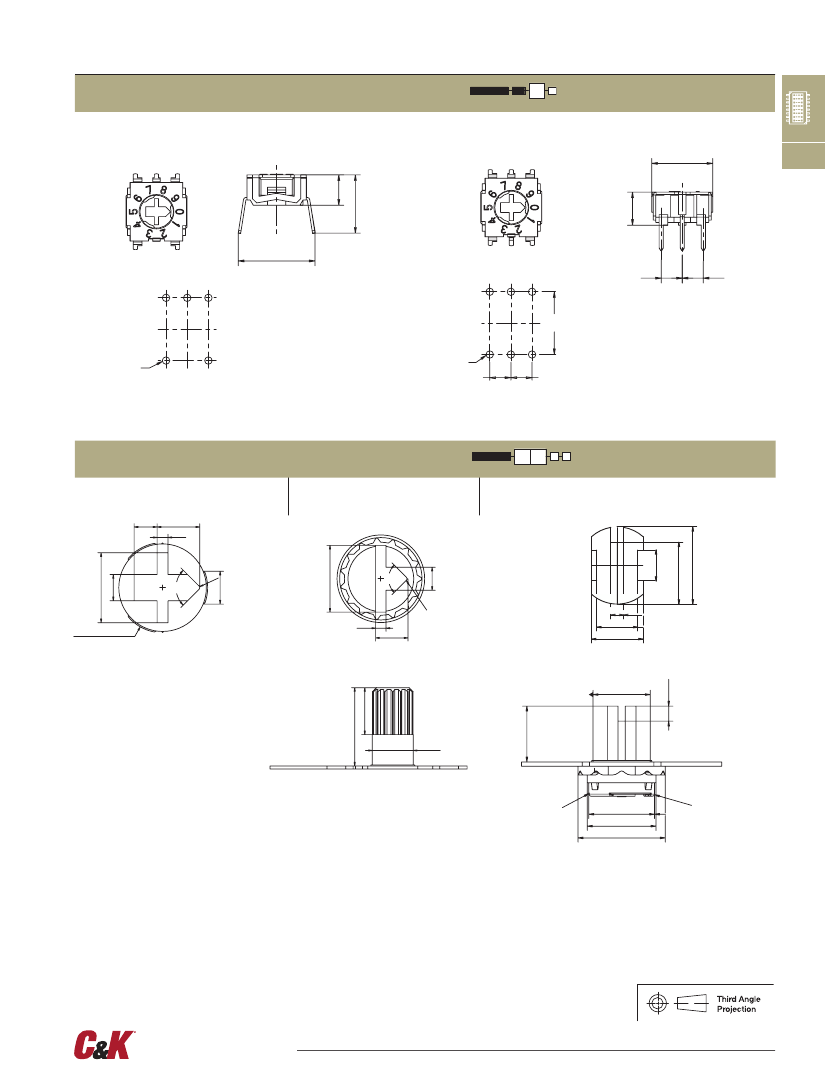

Actuator
B
Without ESD - black plate
0
Flush, screwdriver slot
1
Extended shaft
2, 5
2
Shaft for button
2, 5, 6

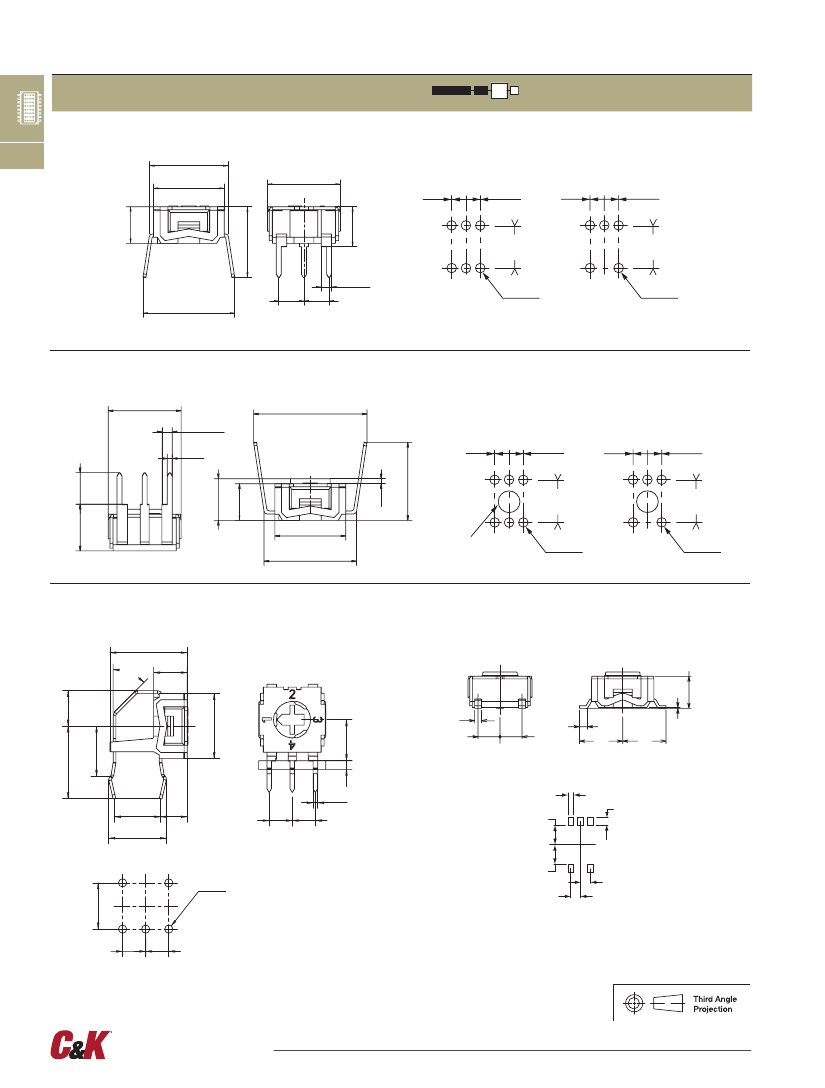

Terminations
N
Thru-hole
V
Right angle
G
Surface mount
M
Manual
8
R
Reverse, thru-hole

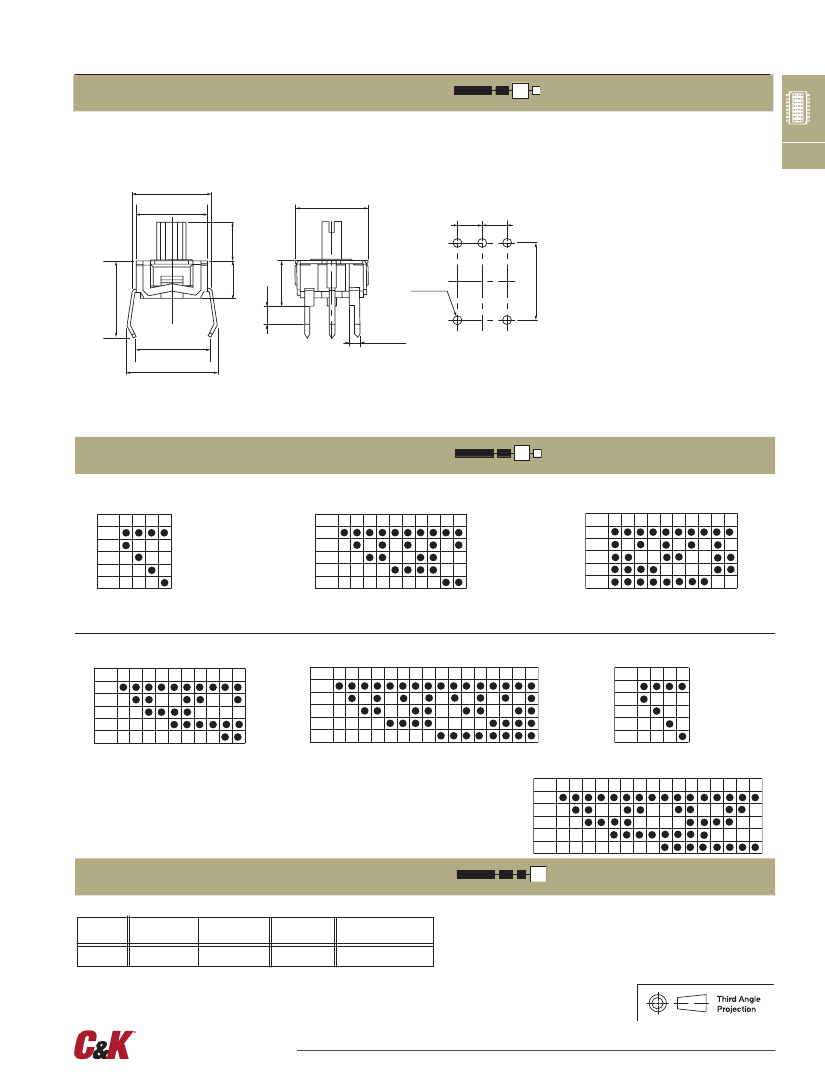

Switch Function
0
Single pole
3
1
BCD code
2
BCD complement code
9
3
Grey Code
10
4
Hexadecimal code
11
7
Grey Code
12
Contact/Terminal Material
4
Gold/ lead free tin
2 - RTE04 version only available with screwdriver slot acuator "0"
3 - Single pole function not available for RTE10/RTE16
4 - ESD protection available with “N” thru-hole termination only
5 - Not available in surface mount
6 - Buttons ordered separately
8 - Manual - available for RTE10/RTE16 with actuator option “2” only
9 - BCD complement code for RTE10, not available with terminations “G” & “M”
10 - Grey Code - for RTE10 only
11 - Hexidecimal code for RTE16 only
12 - Grey code for RTE16 only
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H–25
www.ckswitches.com
