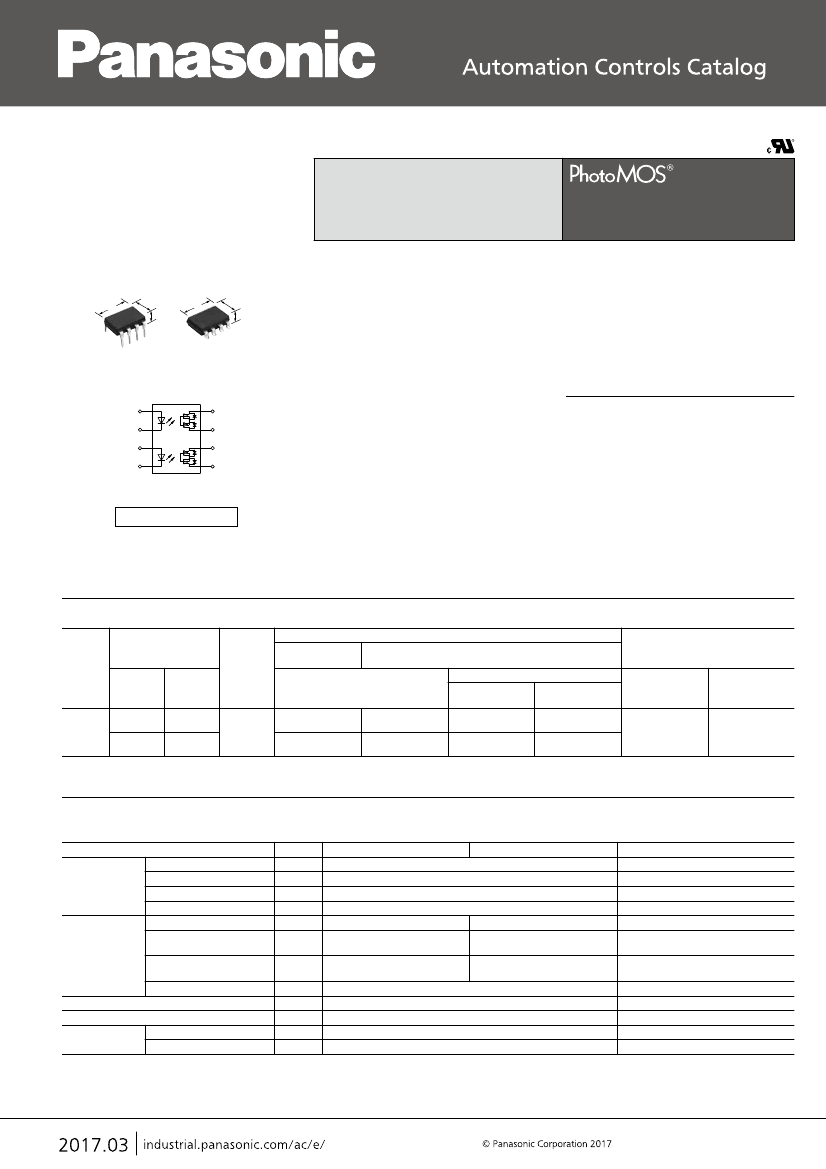

DIP8-pin type featuring
low on-resistance
200V/400V load voltage
RF 2 Form A
Low on-resistance (AQW22❍N)
FEATURES
9.78
.385
6.4
.252
3.9
.154
9.78
.385
6.4
.252
3.6
.142
(Height includes standoff)
mm
inch
1
2
3
4
8
7
6
5
RoHS compliant
1. 2-channels (Form A) type with high
response speed, low leakage current
and low on-resistance.
2. Applicable for 2 Form A use as well
as two independent 1 Form A use
3. Low capacitance between output
terminals ensures high response
speed:
The capacitance between output
terminals is small; Typ. 10 pF.
This enables for a fast operation speed of
Typ. 0.2 ms.
4. High sensitivity and low on-
resistance:
Max. 0.07 A of load current can be
controlled with input current of 5 mA.
The on-resistance is less than our
conventional models.
5. Low-level off state leakage current
6. Controls low-level analog signals:
PhotoMOS features extremely low
closed-circuit offset voltages to enable
control of small analog signals without
distortion.
TYPICAL APPLICATIONS
• Measuring instruments
Scanner, IC checker, Board tester, etc.
• Telephones
• Computer input machines
• Industrial robots
TYPES
Part No.
Output rating*
Package
Load
voltage
AC/DC
dual use
200 V
400 V
Load
current
50 mA
DIP8-pin
40 mA
AQW224N
AQW224NA
AQW224NAX
AQW224NAZ
Through hole
terminal
Tube packing style
AQW227N
AQW227NA
Surface-mount terminal
Tape and reel packing style
Picked from the
Picked from the
1/2/3-pin side
4/5/6-pin side
AQW227NAX
AQW227NAZ
Packing quantity
Tube
1 tube contains:
50 pcs.
1 batch contains:
500 pcs.
Tape and reel
1,000 pcs.
*Indicate the peak AC and DC values.
Note: The surface mount terminal indicator “A” and the packing style indicator “X” or “Z” are not marked on the device.
RATING
1. Absolute maximum ratings
(Ambient temperature: 25°C
77°F)
Item
LED forward current
LED reverse voltage
Peak forward current
Power dissipation
Load voltage (peak AC)
Continuous load current
Output
Peak load current
Power dissipation
Total power dissipation
I/O isolation voltage
Ambient
temperature
Operating
Storage
I
peak
P
out
P
T
V
iso
T
opr
T
stg
Symbol
I
F
V
R
I
FP
P
in
V
L
I
L
AQW227N(A)
50 mA
5V
1A
75 mW
200 V
0.05 A
(0.07 A)
0.15 A
400 V
0.04 A
(0.05 A)
0.12 A
AQW224N(A)
Remarks
Input
f = 100 Hz, Duty factor = 0.1%
Peak AC, DC
( ): in case of using only 1 channel
100 ms (1 shot),
V
L
= DC
800 mW
850 mW
1,500 Vrms
–40 to +85°C
–40 to +185°F
–40 to +100°C
–40 to +212°F
(Non-icing at low temperatures)
–1–
ASCTB57E 201703-T
RF 2 Form A Low on-resistance (AQW22❍N)
2. Electrical characteristics
(Ambient temperature: 25°C
77°F)
Item
LED operate current
Input
LED turn off current
LED dropout voltage
On resistance
Maximum
Output
Typical
Output capacitance
Maximum
Off state leakage current
Turn on time**
Transfer
characteristics
Turn off time**
I/O capacitance
Initial I/O isolation resistance
Maximum
Typical
Maximum
Typical
Maximum
Typical
Maximum
Minimum
I
Leak
T
on
T
off
C
iso
R
iso
C
out
15 pF
*10 nA
0.2 ms
0.5 ms
0.08 ms
0.2 ms
0.8 pF
1.5 pF
1,000 MΩ
Typical
Maximum
Minimum
Typical
Typical
Maximum
Typical
R
on
Symbol
I
Fon
I
Foff
V
F
30
Ω
50
Ω
10 pF
AQW227N(A)
0.9 mA
3.0 mA
0.4 mA
0.8 mA
1.25 V (1.14 V at I
F
= 5 mA)
1.5 V
70
Ω
100
Ω
AQW224N(A)
Condition
I
L
= Max.
I
L
= Max.
I
F
= 50 mA
I
F
= 5 mA
I
L
= Max.
Within 1 s
I
F
= 0
V
B
= 0
f = 1 MHz
I
F
= 0
V
L
= Max.
I
F
= 5 mA
I
L
= Max.
I
F
= 5 mA
I
L
= Max.
f = 1 MHz
V
B
= 0
500 V DC
*Available as custom orders (1 nA or less)
**Turn on/Turn off time
Input
90%
3. Recommended operating conditions
(Ambient temperature: 25°C
77°F)
Please use under recommended operating conditions to obtain expected characteristics.
Item
LED current
Load voltage (Peak AC)
AQW227N(A)
Continuous load current
Load voltage (Peak AC)
AQW224N(A)
Continuous load current
Symbol
I
F
V
L
I
L
V
L
I
L
1ch
2ch
1ch
2ch
Number of
used channels
Min.
5
—
—
—
—
Max.
30
160
0.07
0.05
320
0.05
0.04
Unit
mA
V
A
V
A
Output
Ton
Toff
10%
■
These products are not designed for automotive use.
If you are considering to use these products for automotive applications, please contact your local Panasonic Corporation
technical representative.

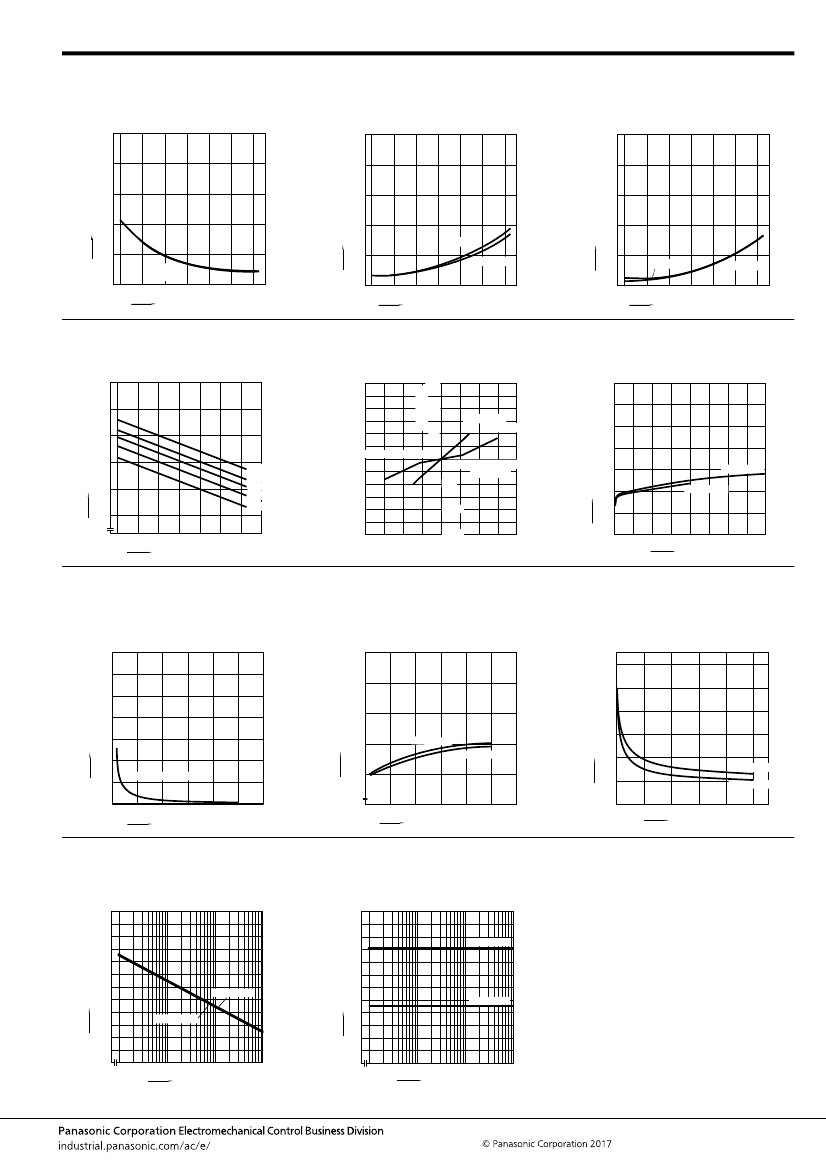

REFERENCE DATA
1. Load current vs. ambient temperature
characteristics
Allowable ambient temperature: –40 to +85°C
–40 to +185°F
When using 2 channels
140
120
Load current, mA
100
80
60
40
20
0
–40 –20
0
20
40
60
80 85 100
AQW227N
AQW224N
2. On resistance vs. ambient temperature
characteristics
Measured portion: between terminals 5 and 6,
7 and 8; LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
120
100
On resistance,
Ω
80
60
40
20
0
AQW224N
3. Turn on time vs. ambient temperature
characteristics
LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
1.0
0.8
Turn on time, ms
0.6
0.4
AQW227N
AQW224N
AQW227N
0.2
–40 –20
Ambient temperature,
°C
0
20
40
60 80 85
Ambient temperature,
°C
0
–40
–20
0
20
40
60
80 85
Ambient temperature,
°C
–2–
ASCTB57E 201703-T
RF 2 Form A Low on-resistance (AQW22❍N)
4. Turn off time vs. ambient temperature
characteristics
LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
0.5
LED operate current, mA
5. LED operate current vs. ambient
temperature characteristics
Load voltage: Max. (DC);
Continuous load current: Max. (DC)
5
6. LED turn off current vs. ambient temperature
characteristics
Load voltage: Max. (DC);
Continuous load current: Max. (DC)
5
LED turn off current, mA
0.4
Turn off time, ms
4
4
0.3
3
3
0.2
2
AQW227N
1
AQW224N
2
0.1
AQW224N
AQW227N
–40
–20
0
20
40
60
80 85
1
AQW224N
0
–40
–20
0
20
40
AQW227N
60
80 85
0
0
–40
–20
0
20
40
60
80 85
Ambient temperature,
°C
Ambient temperature,
°C
Ambient temperature,
°C
7. LED dropout voltage vs. ambient
temperature characteristics
Sample: All types;
LED current: 5 to 50 mA
1.5
LED dropout voltage, V
1.4
1.3
1.2
1.1
1.0
0
–40 –20
0
20
40
60
80 85
8. Current vs. voltage characteristics of output
at MOS portion
Measured portion: between terminals 5 and 6,
7 and 8; Ambient temperature: 25°C
77°F
Current, mA
150
100
50
AQW227N
AQW224N
9. Off state leakage current vs. load voltage
characteristics
Measured portion: between terminals 5 and 6,
7 and 8; Ambient temperature: 25°C
77°F
10
–6
Off state leakage current, A
–4
50mA
30mA
20mA
10mA
5mA
–3
–2
–1
1
–50
–100
–150
2
3
4
Voltage, V
10
–9
AQW224N
AQW227N
10
–12
0
100
200
300
Load voltage, V
400
Ambient temperature,
°C
10. Turn on time vs. LED forward current
characteristics
Measured portion: between terminals 5 and 6,
7 and 8; Load voltage: Max. (DC);
Continuous load current: Max. (DC);
Ambient temperature: 25°C
77°F
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
AQW224N·AQW227N
11. Turn off time vs. LED forward current
characteristics
Measured portion: between terminals 5 and 6,
7 and 8; Load voltage: Max. (DC);
Continuous load current: Max. (DC);
Ambient temperature: 25°C
77°F
0.22
12. Output capacitance vs. applied voltage
characteristics
Measured portion: between terminals 5 and 6,
7 and 8; Frequency: 1 MHz, 30mVrms;
Ambient temperature: 25°C
77°F
12
Turn off time, ms
0.18
Output capacitance, pF
Turn on time ms
10
8
6
4
AQW227N
2
0
AQW224N
0
20
40
60
80
100
Applied voltage, V
0.14
AQW224N
AQW227N
0.06
0
0.10
10
20
30
40
50
60
0
10
20
30
40
50
60
LED forward current, mA
LED forward current, mA
13. Isolation vs. frequency characteristics
(50
Ω
impedance)
Measured portion: between terminals 5 and 6,
7 and 8;
Ambient temperature: 25°C
77°F
14. Insertion loss vs. frequency characteristics
(50
Ω
impedance)
Measured portion: between terminals 5 and 6,
7 and 8;
Ambient temperature: 25°C
77°F
6
100
Isolation, dB
80
60
40
20
0
Insertion loss, dB
5
4
3
AQW224N
AQW224N
AQW227N
AQW227N
2
1
0
10
4
10
5
10
Frequency, H
Z
6
10
7
10
4
10
5
10
6
Frequency, H
Z
10
7
–3–
ASCTB57E 201703-T
