Light Touch Switches/EVQP0/Q2//EVPBF
6 mm Square Thin Type SMD
Light Touch Switches
6mm Square Middle Travel SMD Light
Touch Switch
Type:
EVQP0
EVQQ2
EVPBF
■
Recommended Applications
●
●
●
●
Operating switches for other electronic equipment
Operation switches for PC mouse
Car audio systems
Game
●
External dimensions : 6.5 mm
×
6.0 mm, Height 1.8 mm
(Excluding the push plate)
●
External dimensions : 6.0 mm
×
6.0 mm, Height 2.5 mm
(Excluding the push plate, Middle Travel)
●
With or without ground terminal, height, operating force
●
Overstroke travel
●
Middlestroke travel type
■
Features
■
Explanation of Part Numbers
6 mm Square Thin Type SMD Light Touch Switches
1
2
3
4
5
6
7
8
9
Product Code
4th & 5th
P0
Q2
Height
Type
Overstroke travel
Short push travel
Push Plate Color
6mm Square Middle Travel SMD Light Touch Switch
1
2
3
4
5
6
7
8
9
(10)
(11)
(12)
Product Code
Type
Heigh
Packing
■
Specifications
Overstroke Travel
Middlestroke Travel
Snap action/Push-on type SPST
Rating
10 μA 2 Vdc to 20 mA 15 Vdc (Resistive load)
Contact Resistance
100 mΩ max.
500 mΩ max.
Insulation Resistance
100 MΩ min. (at 100 Vdc)
Electrical
Dielectric Withstanding Voltage
250 Vac for 1 minute
Bouncing
10 ms max. (ON, OFF)
0.5 N, 1.0 N, 1.3 N,
Operating Force
0.6 N, 1.0 N
2.0 N
1.6 N, 2.6 N, 3.5 N
Mechanical
0.25 mm (0.2 mm : 0.5N,
0.3 mm
0.25 mm
Travel
1.0N)
0.5 N : 2000000 cycles min.
1.0 N, 1.3 N, 1.6 N : 1000000 cycles min. 0.6 N : 2000000 cycles min.
Endurance Operating Life
1000000 cycles min.
2.6 N : 200000 cycles min. 1.0 N : 1000000 cycles min.
3.5 N : 100000 cycles min.
Operating Temperature
–40 °C to +85 °C
–40 °C to +85 °C (Bulk)
Storage Temperature
–20 °C to +60 °C (Taping)
H=2.0 mm
4000 pcs. Embossed Taping (Reel Pack)
H=3.5mm 3000 pcs.
Minimum Quantity/Packing Unit
Embossed Taping (Reel Pack)
H=2.5 mm, 3.1 mm
2000 pcs. Embossed Taping (Reel Pack)
H=2.0 mm
20000 pcs.
Quantity/Carton
15000 pcs.
H=2.5 mm, 3.1 mm 10000 pcs.
Note: Non washable
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02
Travel Type
Type
Short Push Travel
Apr. 2015

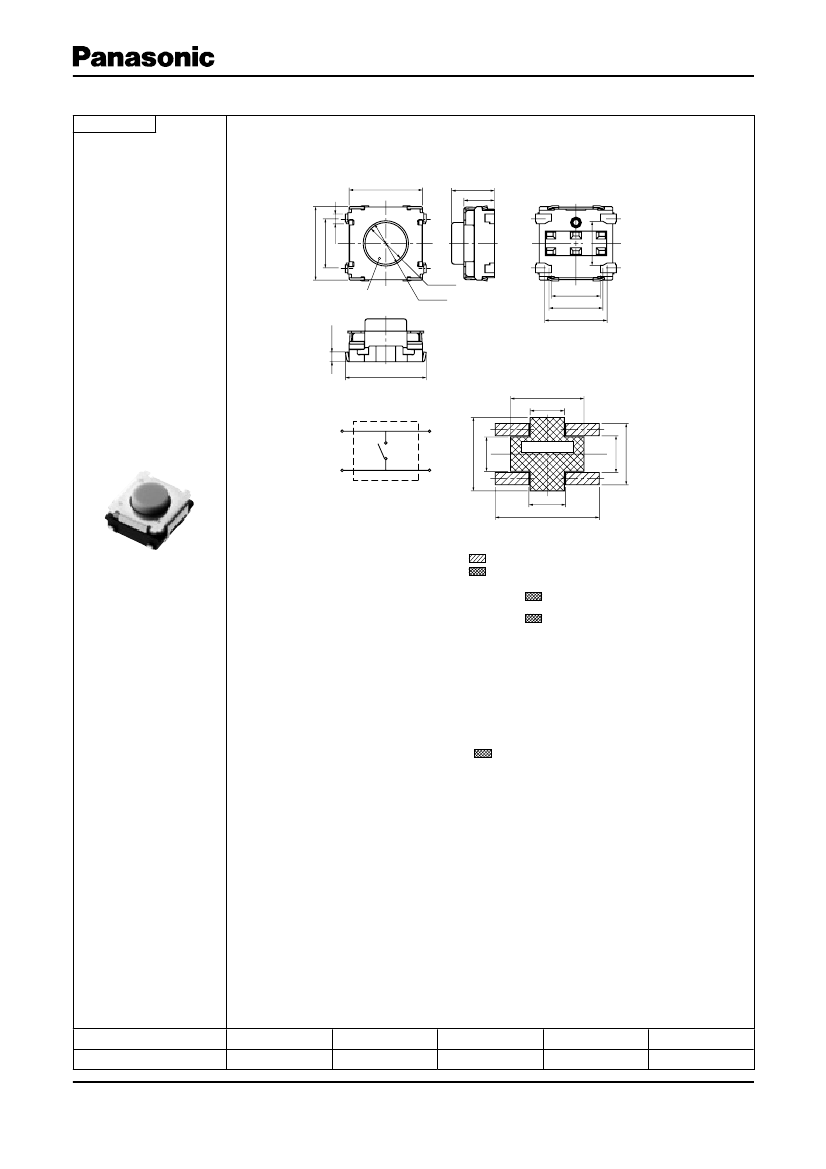

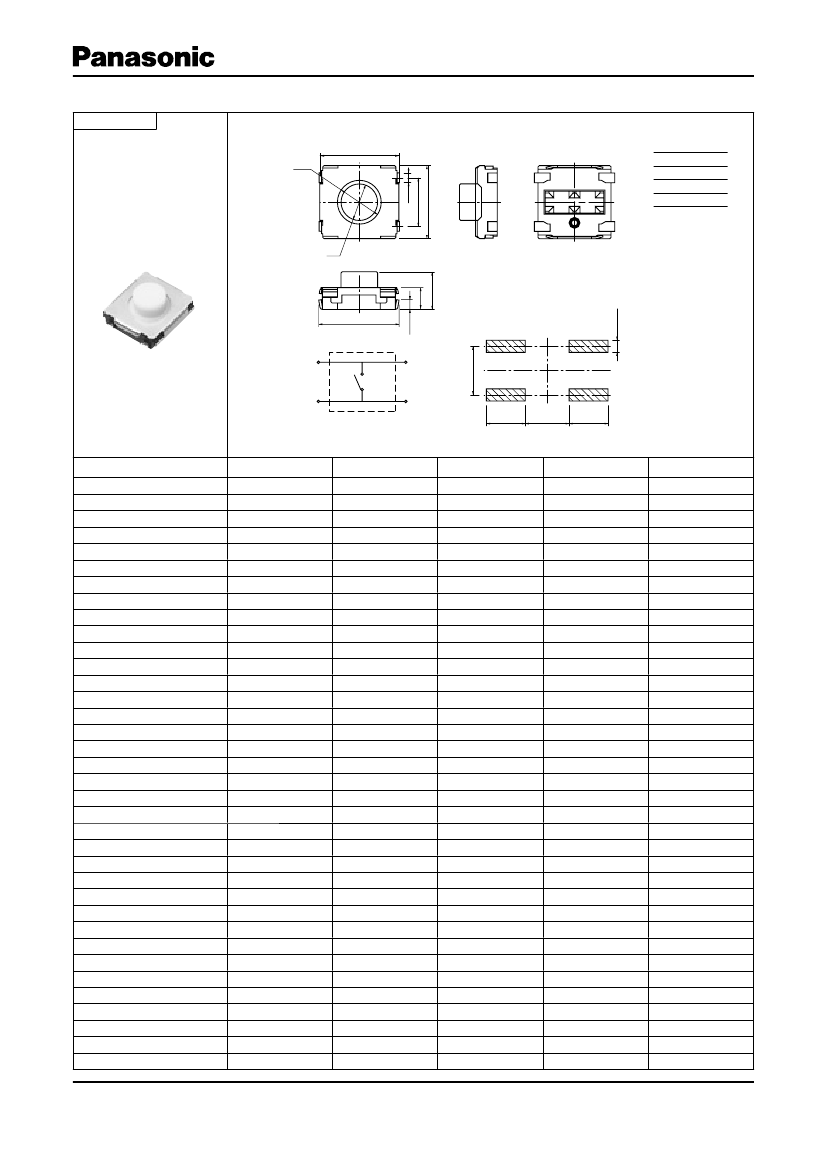

Light Touch Switches/EVQP0/Q2//EVPBF
■
Dimensions in mm (not to scale)
No. 1
EVQP0
Overstroke travel : 0.3 mm
With J-bent terminals
(General dimension tolerance : ± 0.2)
( )dimensions are reference dimensions.
6.5
f3
0.8
4.0
6.0
B
B'
A
f2
1.8
2.5
A'
(6.6)
(0.8)
B
B'
A
Circuit Diagram
A'
4.0
(3.2)
(3.6)
(3.2)
PWB land pattern for reference
Part Numbers
EVQP0N02B
EVQP0P02B
EVQP0Q02Q
EVQP0S02Q
Operating Force
0.6 N
0.6 N
1.0 N
1.0 N
Height
2.5 mm
2.5 mm
2.5 mm
2.5 mm
Push Plate Color Ground Terminal
Blue
Blue
Gray
Gray
Without
With
Without
With
1 min.
Operating Life
2000000 cycles
2000000 cycles
1000000 cycles
1000000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02
Apr. 2015
Light Touch Switches/EVQP0/Q2//EVPBF
■
Dimensions in mm (not to scale)
No. 2
EVQQ2
Short travel 0.25 mm
With J-bent terminals
(General dimension tolerance : ± 0.2)
( )dimensions are reference dimensions.
6.5
f3.8
B
0.8
4.0
6.0
B'
Height
H
2.0±0.2
2.5±0.2
3.1±0.2
A
f3
A'
1.8
H
(6.6)
A
A'
(3.2)
Circuit Diagram
(3.6)
(3.2)
4.0
B
B'
PWB land pattern for reference
Part Numbers
EVQQ2B01W
EVQQ2B02W
EVQQ2B03W
EVQQ2D01W
EVQQ2D02W
EVQQ2D03W
EVQQ2F01W
EVQQ2F02W
EVQQ2F03W
EVQQ2H01W
EVQQ2H02W
EVQQ2H03W
EVQQ2K01W
EVQQ2K02W
EVQQ2K03W
EVQQ2M01W
EVQQ2M02W
EVQQ2M03W
EVQQ2P01W
EVQQ2P02W
EVQQ2P03W
EVQQ2S01W
EVQQ2S02W
EVQQ2S03W
EVQQ2U01W
EVQQ2U02W
EVQQ2U03W
EVQQ2W01W
EVQQ2W02W
EVQQ2W03W
EVQQ2Y01W
EVQQ2Y02W
EVQQ2Y03W
EVQQ2201W
EVQQ2202W
EVQQ2203W
Operating Force
0.5 N
0.5 N
0.5 N
0.5 N
0.5 N
0.5 N
1.0 N
1.0 N
1.0 N
1.0 N
1.0 N
1.0 N
1.3 N
1.3 N
1.3 N
1.3 N
1.3 N
1.3 N
1.6 N
1.6 N
1.6 N
1.6 N
1.6 N
1.6 N
2.6 N
2.6 N
2.6 N
2.6 N
2.6 N
2.6 N
3.5 N
3.5 N
3.5 N
3.5 N
3.5 N
3.5 N
H=Height
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
Push Plate Color Ground Terminal
White
Without
White
Without
White
Without
White
With
White
With
White
With
White
Without
White
Without
White
Without
White
With
White
With
White
With
White
Without
White
Without
White
Without
White
With
White
With
White
With
White
Without
White
Without
White
Without
White
With
White
With
White
With
White
Without
White
Without
White
Without
White
With
White
With
White
With
White
Without
White
Without
White
Without
White
With
White
With
White
With
1 min.
(0.8)
Operating Life
2000000 cycles
2000000 cycles
2000000 cycles
2000000 cycles
2000000 cycles
2000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
200000 cycles
200000 cycles
200000 cycles
200000 cycles
200000 cycles
200000 cycles
100000 cycles
100000 cycles
100000 cycles
100000 cycles
100000 cycles
100000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02
Apr. 2015
Light Touch Switches/EVQP0/Q2//EVPBF
■
½状寸法 (mm)
No. 3
EVPBF
Middlestroke Travel 0.25 mm
With J-bent terminals
(General dimension tolerance : ± 0.2)
( )dimensions are reference dimensions.
6.0
3.5
2.5
B
A
f3.4
f3.7
(4.0)
(4.4)
(5.1)
6.0
4.0
0.8
A'
Knob
(0.8)
(6.6)
(6.0)
(2.8)
B'
B
(6.0)
(2.8)
3.0
5.0
No sordering
A'
A
3.0
8.5
PWB land pattern for reference
: Recommended land pattern area.
: No soldering area.
• Any land pattern or via holes shall not be
provided at
area.
• If it's necessary to design land pattern or
via holes at
area,
please apply resist to them to protect their
metal part completely.
• If their metal parts are not protected
completely,short circuit failure may occur
by solder ball.
• Beside, there should be convexoconcave by
designing additional pattern,
it may cause swith tilt, influence on
solder-ability or flux intrusion
after reflow soldering.
• Therefore, please study any influence of
additional land pattern or via holes at
area in advance.
Circuit Diagram
Part Numbers
EVPBFAC1A000
Operating Force
2.0 N
Height
3.5 mm
Push Plate Color Ground Terminal
Gray
Without
(3.6)
B'
Operating Life
1000000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02
Apr. 2015

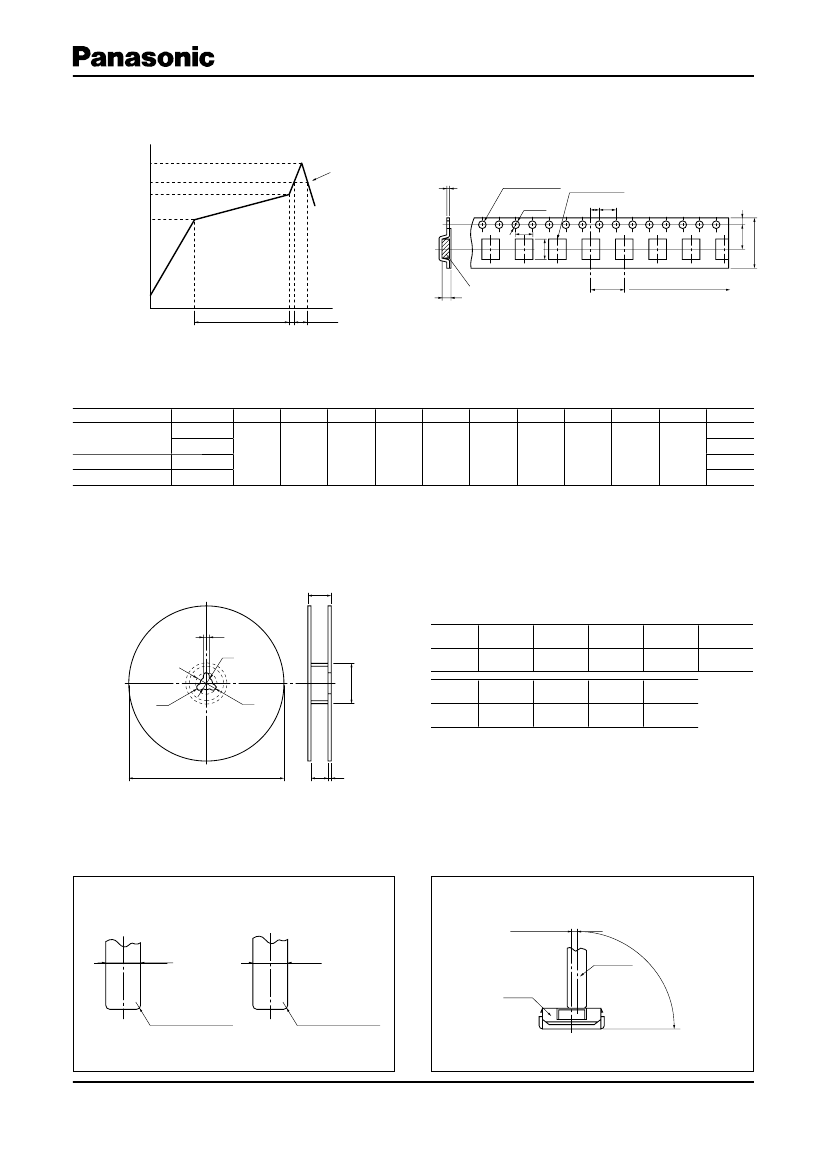

Light Touch Switches/EVQP0/Q2//EVPBF
■
Recommended Reflow Soldering Conditions
●
Embossed Carrier Taping
MAX.
260
Operation Top (°C)
230
180
150
A
B
Fan or Normal Temp.
Tape width=12.0 mm
t
1
Feeding hole
fD
0
Chip pocket
P
2
P
0
E
t
2
90±30
Soldering Time (s)
40±10
Chip component
P
1
Tape running direction
Unit: mm
Part No.
EVQQ2
EVQP0
EVPBF
Height
2.0
2.5/3.1
2.5
3.5
6.7±0.2
7.4±0.2
12.0±0.3
5.5±0.1 1.75±0.10 8.0±0.1
2.0±0.1
4.0±0.1
1.5
+0.1
0
0.30±0.05
A
B
W
F
E
P
1
P
2
P
0
D
0 Dia
t
1
t
2
2.2±0.2
3.2±0.2
2.8±0.2
3.7±0.1
T
E
C
B
Item
A
B
C
013.0±0.5
t
—
D
021.0±1.0
r
—
E
2.0±0.5
Rate (mm)
0380.0±2.0 080.0±1.0
Item
Rate (mm)
W
13.5±1.0
T
17.5±1.0
r
D
A
W
t
(Normal Temp.)
●
Standard Reel Dimensions in mm (not to scale)
■
Recommended Shape of Test Pole
2 mm Type
2.5 mm, 3.1 mm, 3.5 mm Type
■
Recommended Operating Conditions
0.3 mm max.
f3
+0
–0.5
f4
+0.5
–0
Leaning angle range
90 °±4 °
(vertical direction)
Test pole
Switch
R0.1 mm±0.05 mm
R0.1 mm±0.05 mm
Mounting surface
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02
Apr. 2015
F
W
