FK20VS-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> FK20VS-5

FK20VS-5: DescriptionHIGH-SPEED SWITCHING USE; CategoryDiscrete semiconductor The transistor; File Size57KB，5 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric View All

FK20VS-5 Overview

HIGH-SPEED SWITCHING USE

FK20VS-5 Parametric

Parameter Name	Attribute value
Maker	Mitsubishi
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	250 V
Maximum drain current (Abs) (ID)	20 A
Maximum drain current (ID)	20 A
Maximum drain-source on-resistance	0.24 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	150 W
Maximum pulsed drain current (IDM)	60 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

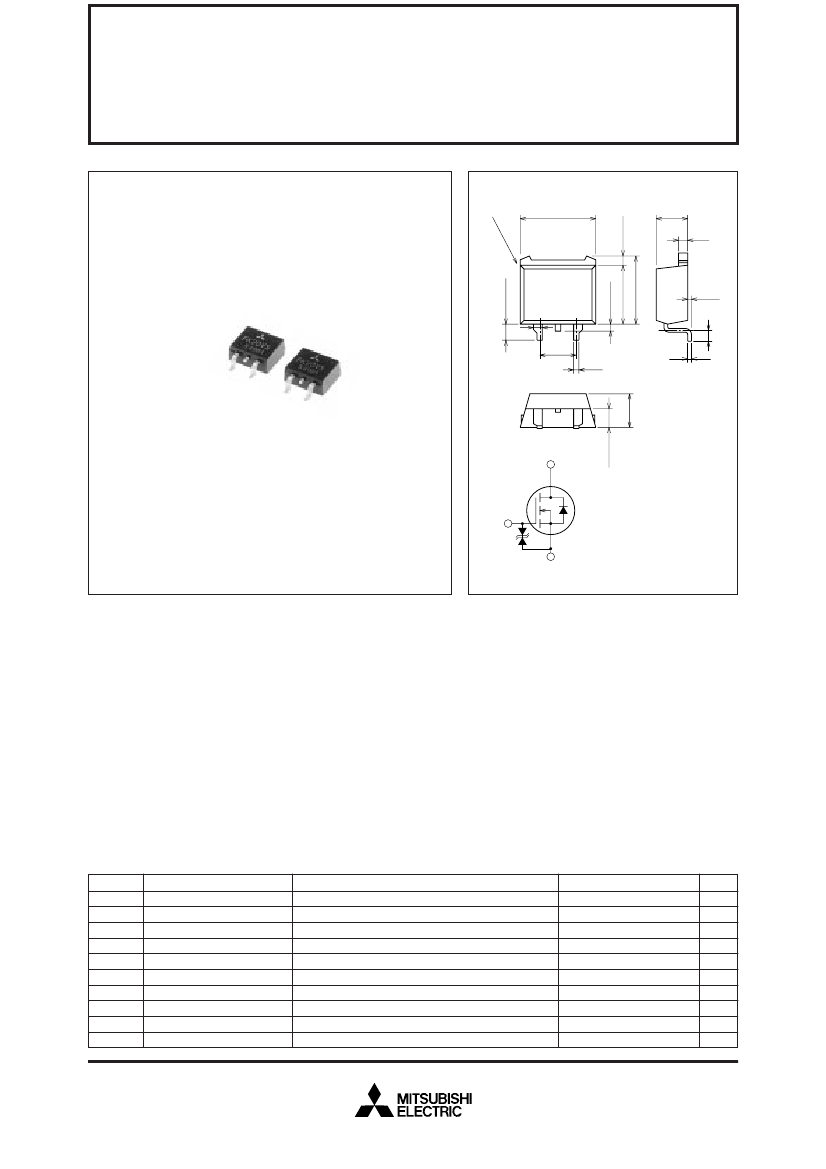

MITSUBISHI Nch POWER MOSFET

FK20VS-5

HIGH-SPEED SWITCHING USE

FK20VS-5

OUTLINE DRAWING

1.5MAX.

Dimensions in mm

4.5

1.3

10.5MAX.

1.5MAX.

8.6 ± 0.3

9.8 ± 0.5

3.0

+0.3

–0.5

+0.3

–0

0.8

0.5

q w e

2.6 ± 0.4

¡V

DSS ................................................................................

250V

¡r

DS (ON) (MAX) ..............................................................

0.24Ω

¡I

D .........................................................................................

20A

¡Integrated

Fast Recovery Diode (MAX.) ........150ns

GATE

DRAIN

SOURCE

DRAIN

TO-220S

APPLICATION

Servo motor drive, Robot, UPS, Inverter Fluorecent

lamp, etc.

MAXIMUM RATINGS

Symbol

DSS

GSS

stg

—

(Tc = 25°C)

Parameter

Drain-source voltage

Gate-source voltage

Drain current

Drain current (Pulsed)

Source current

Source current (Pulsed)

Maximum power dissipation

Channel temperature

Storage temperature

Weight

= 0V

Conditions

Ratings

250

±30

150

–55 ~ +150

1.2

4.5

Unit

°C

Feb.1999

Typical value

(1.5)
