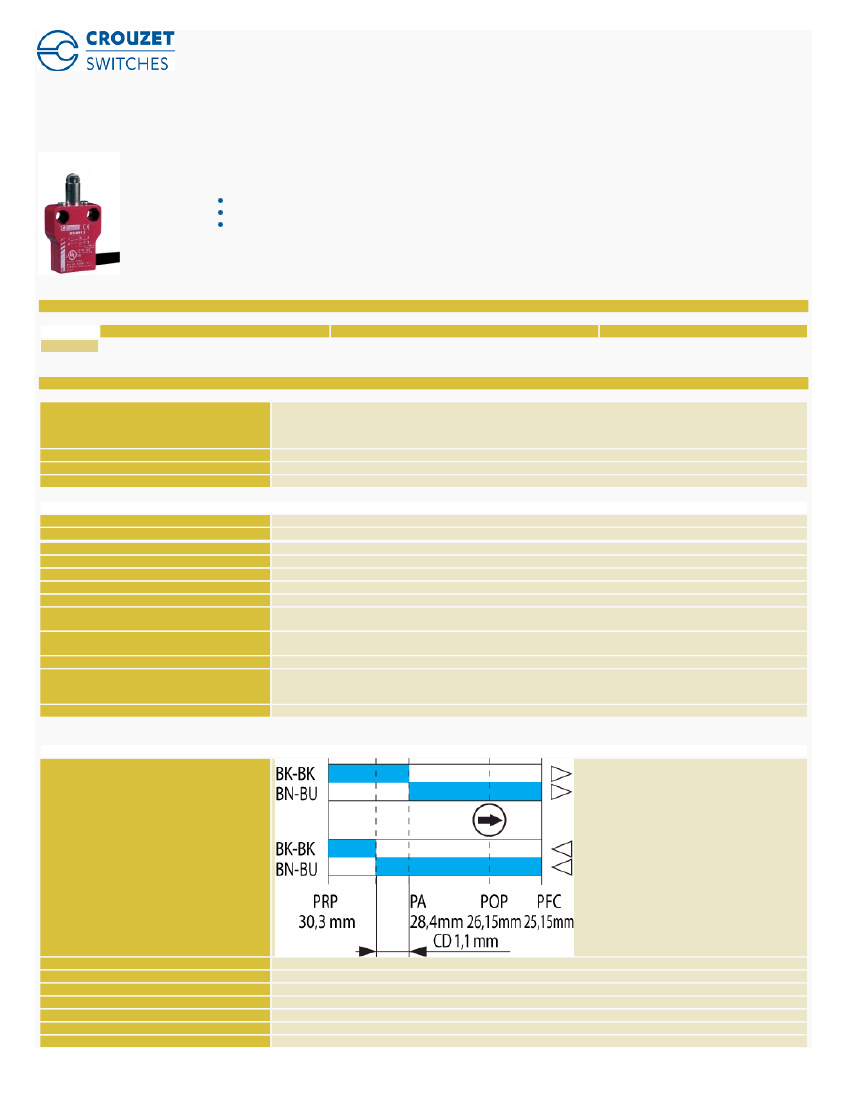

83880 with cable output Metal roller plunger Part number 83885103
IP 66/67
Metal case
cUL approval
Part numbers
Type
83 885 103
Metal roller plunger
Characteristics
Plunger with 90° roller
Type of output
Cable length 3 m
Specifications
Conformity to standards
IEC / EN 60947.5.1
Dimensional conformity : NFC 63145
Low voltage directive : 73/23/EEC and 93/68/EEC
Electric shock protection : NFC 20030 or IEC 60536 class 1, degree of pollution 3
Protection against electric shocks
Degree of protection IEC 60529
Degree of protection according to NEMA 250
Type 1, 3, 4, 6, 13
Electrical characteristics
Connection
Operating temperature (°C)
Assigned impulse voltage (Uimp) - V
Assigned insulation voltage Ui (V)
Thermal current I (A)
Low-load switching - Minimum voltage (V)
Low-load switching - Minimum current (mA)
Assigned working characteristics (EN 60 947.5.1, UL
508)
Use category according to IEC 947.5.1
Use category according to UL 508
Electrical protection
-25 →+70 °C
2500
500
10
10
100
A300 = AC15 250 V 6 A
Q150 = DC13 24 V 8 A
AC15=250 V/6 A
DC13=24 V/8 A
A300 - Q150
Integral earth wire
Short-circuit protection device : IEC/EN 60947.5.1
Fuse 6 AgC
UL 508, UL 50
Approvals
Mechanical characteristics
Sequence
Snap action
Minimum operating force (N)
Minimum operating force (Nm)
Minimum total travel force (N)
Minimum total travel force (Nm)
Min. positive opening travel (N)
Min. positive opening travel (Nm)
Mechanical life (millions of operations)
10
-
30
-
28
-
10
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
Vertical approach speed
Horizontal approach speed (30° cam)
Weight (g)
1 mm/min →0,5 m/s
1 mm/min →0,3 m/s
200
www.crouzet.com
Principles
Function

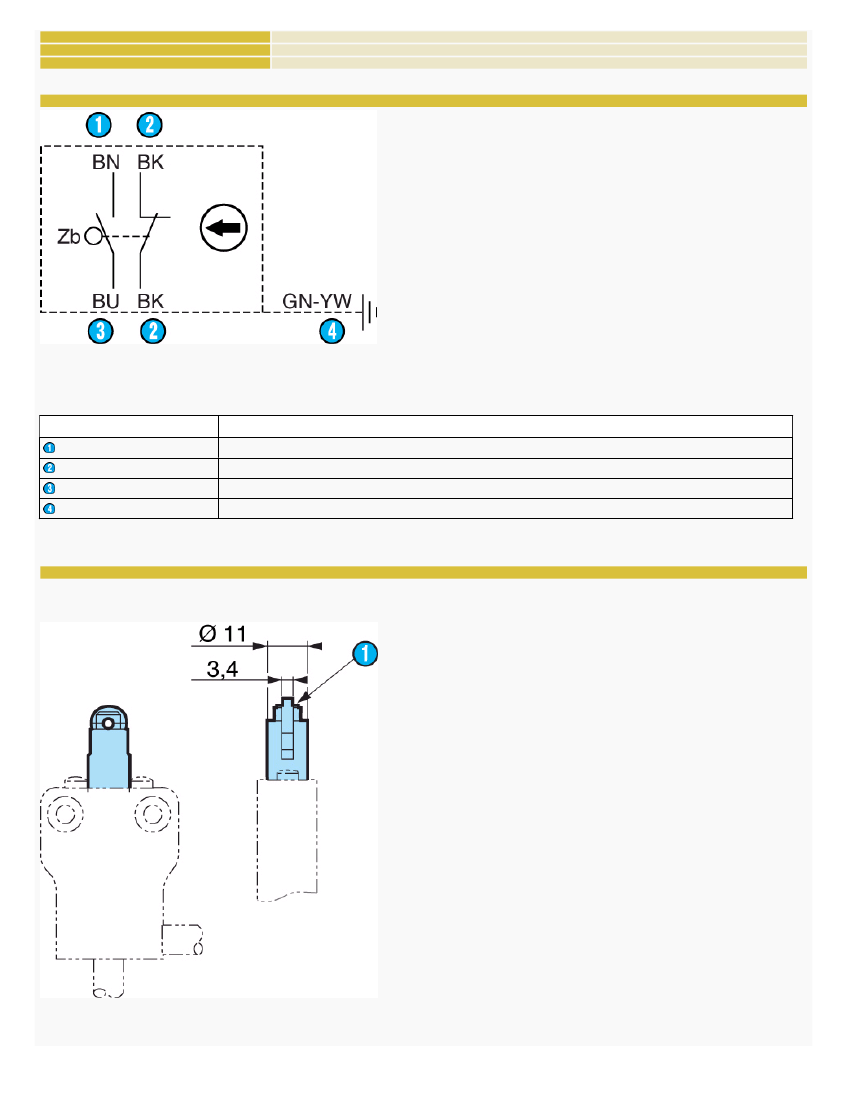

Four-terminal double break two-way contact element (form Zb) with positive opening NC contacts. The 2 moving contacts are electrically isolated from one another.
N
o
Legend
Brown
Black
Blue
Green-yellow

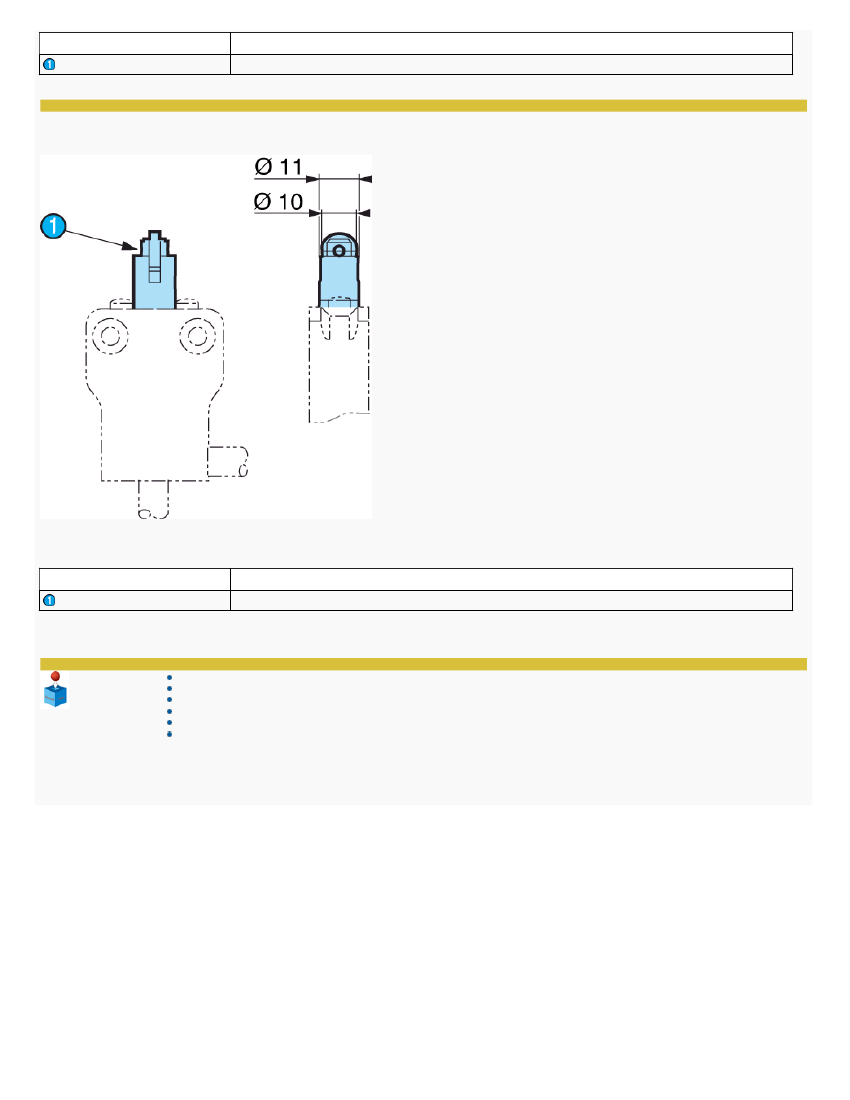

Dimensions (mm)
Product
83 881 1
83 881 0
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
