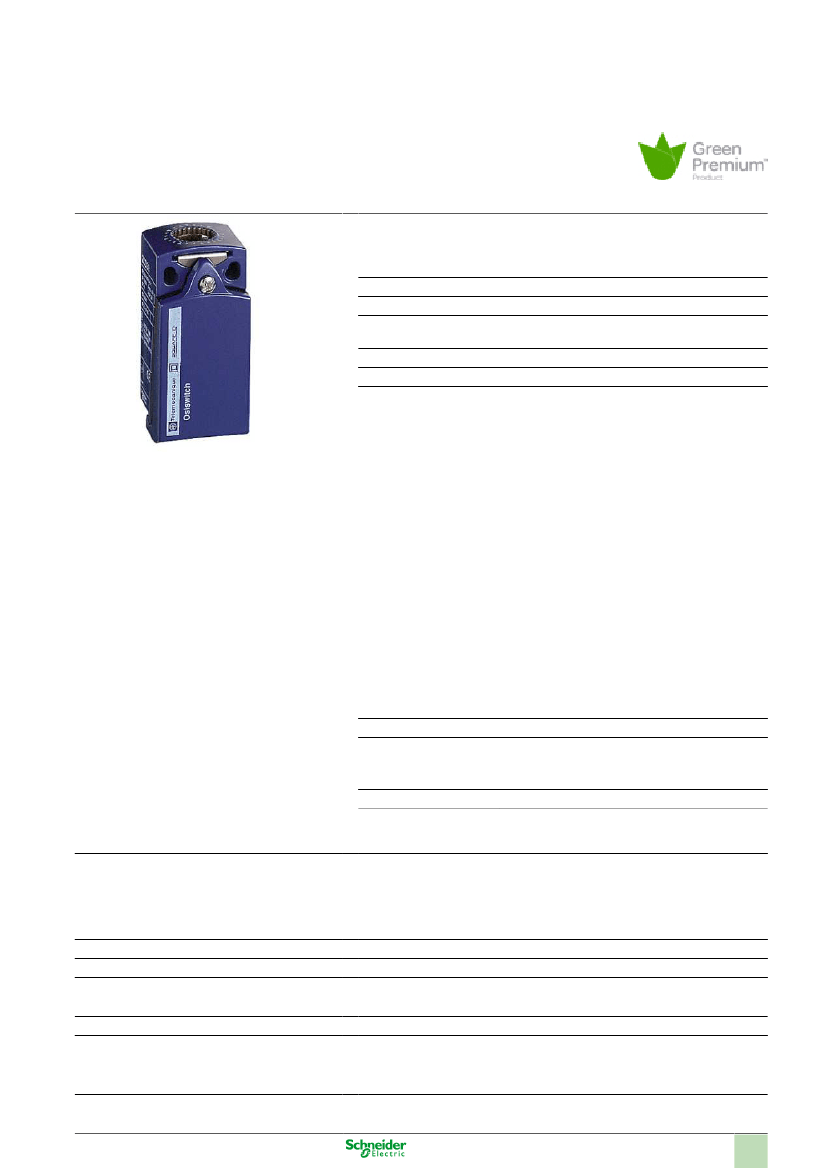

Product data sheet

Characteristics

ZCD37

limit switch body ZCD - compact - 2NC+1NO -

slow-break

Product availability: Non-Stock - Not normally stocked in distribution facility

Main

Commercial Status

Range of product

Series name

Product or component

type

Device short name

Design

Body type

Associated head

Commercialised

OsiSense XC

Standard compact

Limit switch body

ZCD

Compact

Fixed

ZCE01

ZCE02

ZCE05

ZCE06

ZCE07

ZCE08

ZCE10

ZCE11

ZCE13

ZCE14

ZCE21

ZCE24

ZCE27

ZCE28

ZCE29

ZCE62

ZCE63

ZCE64

ZCE65

ZCE66

ZCE67

ZCEH0

ZCEH2

Zamak

2 NC + 1 NO

Slow-break, break before make

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.

Body material

Number of poles

Contacts type and

composition

Contacts operation

Complementary

Associated connection component

ZCDEF12

ZCDEG11

ZCDEG13

ZCDEN12

ZCDEP16

ZCDEP20

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm²

Silver plated contacts

With

19.69 ft/s (6 m/s)

R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix

C300, AC-15 (Ue = 240 V, Ie = 0.75 A) conforming to EN/IEC 60947-5-1

appendix A

Electrical connection

Contacts insulation form

Contacts material

Positive opening

Minimum actuation speed

Contact code designation
