P
USHBUTTON
S
WITCHES
M
INIATURE
M
ETAL
P
ANEL
S
EALED
P
USHBUTTON
This rugged panel sealed pushbutton is made of
a special high creep strength non-spark zinc
alloy suitable for use in mining or other
potentially explosive atmospheres where
dust and moisture are problematic.
A
PPLICATIONS
•
•
•
•
•
Communications
Instrumentation
Data processing
Process controls
Transportation/ Material handling
A
CTUAL
S
IZE
K
EY
F
EATURES
:
•
•
•
•
Panel sealed to IP67
Momentary action
Non-spark material
500,000 life cycles @ max power
•
Impact resistant
•
Gold contacts
•
Wide temperature range: –55°C to +125°C
O
RDERING
I
NFORMATION
:
Part Number
59-111
59-112
59-113
59-211
59-212
59-213
59-311
59-312
59-313
Bezel Style
Round
Round
Round
Square
Square
Square
High Round
High Round
High Round
Button Color*
Black
Red
Green
Black
Red
Green
Black
Red
Green
*Consult factory for additional colors.
S
TANDARDS
/ A
GENCY
/ R
ATINGS
:
®
RoHS
COMPLIANT
2002 / 95 / EC
V
D E
IEC
IP67
COMPLIANT
www.itwswitches.com
36
Contact an Authorized Distributor or Factory for Pricing
S
ERIES
59: M
INIATURE
P
ANEL
S
EALED
M
ETAL
P
RODUCT
D

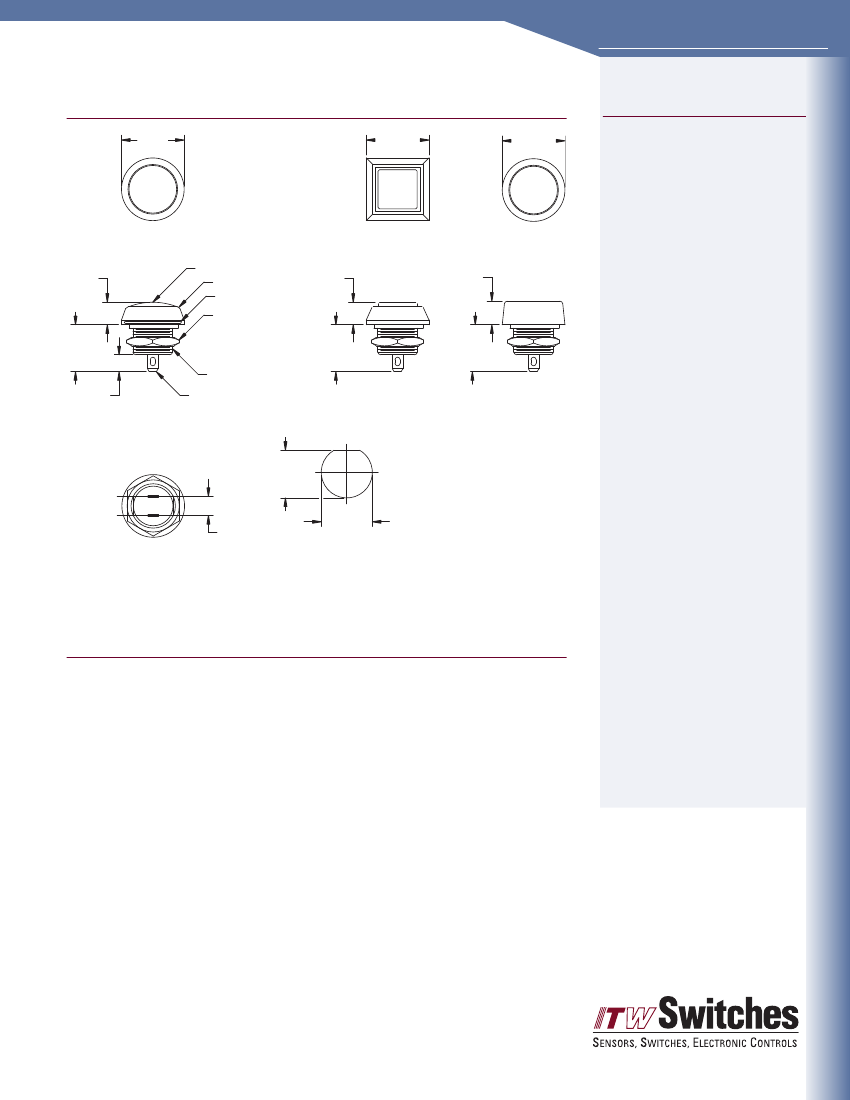

RAWINGS
17.5 ø
----
.69 DIA
17.5 SQ
-----
.69 SQ
17.5 ø
----
.69 DIA
P
USHBUTTON
S
WITCHES
M
ECHANICAL
/ E
LECTRICAL
C
HARACTERISTICS
:
Travel (nom):
2.3mm (.090 in.)
Life (max):
1,000,000 cycles
Operating force (nom):
3N / 306 grams
Contact bounce (nom):
1 millisecond
Panel thickness (max):
3mm (.118 in.)
Dielectric strength:
1000 VAC
Insulation resistance:
1 GΩ
Contact resistance (initial):
50 mΩ (Max)
Current rating (typical):
400mA at 32 VAC resistive
100mA at 50 VDC resistive
125mA at 125 VAC resistive
Shock:
100G
Operating temp range:
-55°C to +125°C
(-67°F to +257°F)
Body material:
zinc alloy, black
Button material:
PBT thermoplastic
Contacts:
gold plated palladium nickel
Terminals:
gold plated brass
7.0
--
.28
BUTTON COLOR
BLACK BEZEL
SEALING "O" RING
(UNDER BEZEL)
BRASS LOCKNUT
7.0
--
.28
7.3
--
.29
13.0
---
.51
M12 X 1.0 BRITISH
ISO METRIC THD
GOLD PLATED BRASS
SOLDER TERM (2)
13.0
---
.51
13.0
---
.51
4.5
-- REF (2)
.18
SQUARE BEZEL
HIGH ROUND BEZEL
ROUND BEZEL
12.95/12.90
---------
.509 ± .001
5.1
--
.20
13.65/13.60 ø
----------
.536 ± .001 DIA
RECOMMENDED PANEL CUT-OUT
P
ANEL
M
OUNTING AND
C
ONSTRUCTION
I
NFORMATION
The series 59 mounts easily into panels of minimum 1.5mm (.060 in.) and
maximum 3mm (.118 in.) thickness. Front panel sealing to IP67 is achieved by a
sealing “O” ring fitted into a premachined groove on the body of the switch
before it is inserted into the panel hole cut-out. It is held onto the panel by means
of a brass hex nut tightened down by a 14mm spanner, to a torque of between
1.5Nm to 3.0Nm to achieve the correct sealing pressure. A “D” flat is provided to
prevent rotation.
Copyright © 2011 ITW Switches 2011
Designs and specifications are subject to change
without notice due to product improvement.
37
800.544.3354
