FM1100-M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FM1100-M

FM1100-M: DescriptionSIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size56KB，2 Pages; ManufacturerFORMOSA; Websitehttp://www.formosams.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FM1100-M Overview

SIGNAL DIODE

FM1100-M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FORMOSA
package instruction	SMA, 2 PIN
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW POWER LOSS
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JESD-30 code	R-PDSO-F2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	100 V
surface mount	YES
technology	SCHOTTKY
Terminal form	FLAT
Terminal location	DUAL

Preview

Download Datasheet

View All

Chip Schottky Barrier Diodes

FM120-M THRU FM1100-M

Silicon epitaxial planer type

Formosa MS

SOD-123

0.161(4.1)

0.146(3.7)

0.012(0.3) Typ.

Features

Plastic package has Underwriters Laboratory

Flammability Classification 94V-O Utilizing Flame

Retardant Epoxy Molding Compound.

For surface mounted applications.

Exceeds environmental standards of MIL-S-19500 /

228

Low leakage current.

0.063(1.6)

0.055(1.4)

0.071(1.8)

0.055(1.4)

0.110(2.8)

0.094(2.4)

0.035(0.9) Typ.

Dimensions in inches and (millimeters)

Mechanical data

Case : Molded plastic, JEDE SOD-123 / MI I SMA

Terminals : Solder plated, s olderable per MIL-STD-750,

Method 2026

Polarity : Indicated by cathode band

Mounting P

osition : Any

Weight : 0.04 gram

MAXIMUM RATINGS

(AT T

=25

C unless otherwise noted)

PARAMETER

Forward rectified current

Forward surge current

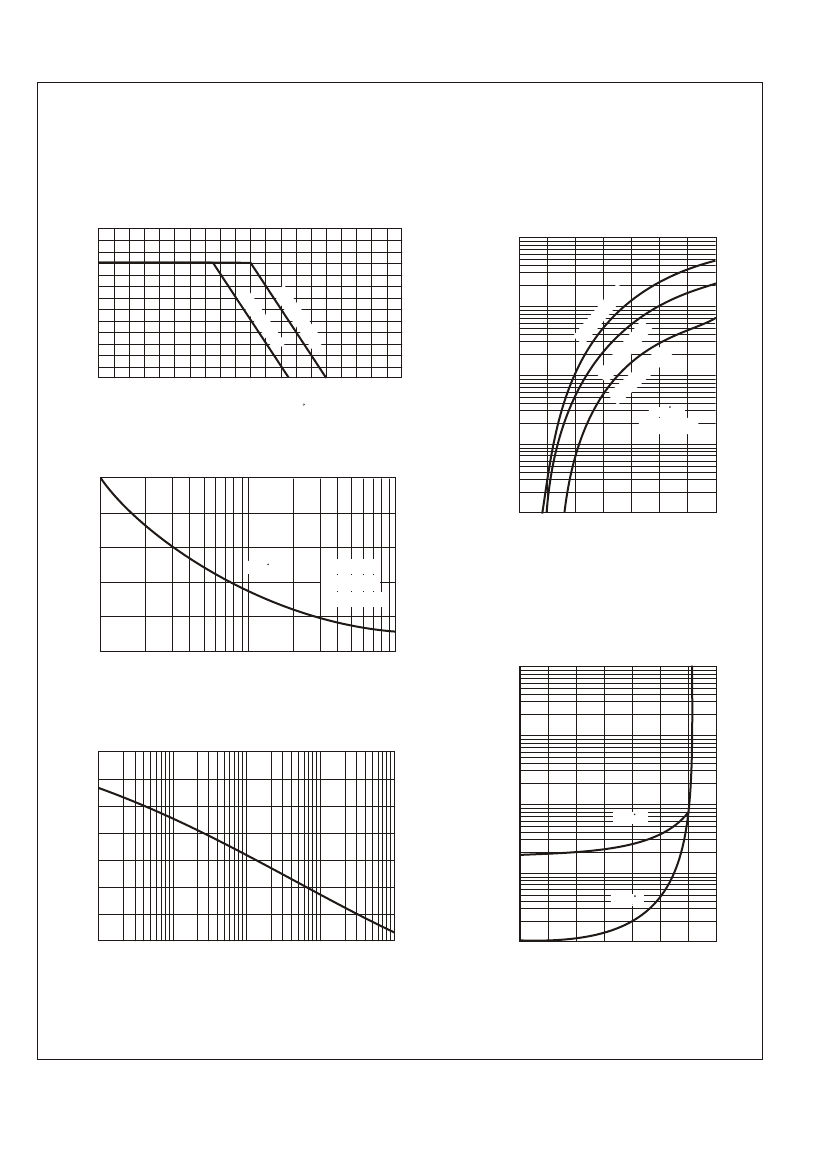

See Fig.1

8.3ms single half sine-wave superimposed on

rate load (JEDEC methode)

= V

RRM

CONDITIONS

Symbol

FSM

MIN.

TYP.

MAX.

1.0

0.5

UNIT

Reverse current

Thermal resistance

Diode junction capacitance

Storage temperature

STG

-55

120

= V

RRM

= 125 C

Junction to ambient

f=1MHz and applied 4vDC reverse voltage

C / w

+150

SYMBOLS

MARKING

CODE

RRM

(V)

RMS

(V)

Operating

temperature

(

(V)

100

(V)

FM120-M

FM130-M

FM140-M

FM150-M

FM160-M

FM180-M

FM1100-M

100

0.50

-55 to +125

*1 Repetitive peak reverse voltage

0.70

-55 to +150

0.85

*2 RMS voltage

*3 Continuous reverse voltage

*4 Maximum forward voltage

FM1100-M Related Products

	FM1100-M	FM120-M	FM130-M	FM140-M	FM150-M	FM160-M	FM180-M
Description	SIGNAL DIODE	SIGNAL DIODE	SIGNAL DIODE	SIGNAL DIODE	SIGNAL DIODE	SIGNAL DIODE	SIGNAL DIODE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.5 V	0.5 V	0.5 V	0.7 V	0.7 V	0.85 V
JESD-30 code	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	125 °C	125 °C	125 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	100 V	20 V	30 V	40 V	50 V	60 V	80 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	FORMOSA	FORMOSA	-	-	FORMOSA	FORMOSA	-
