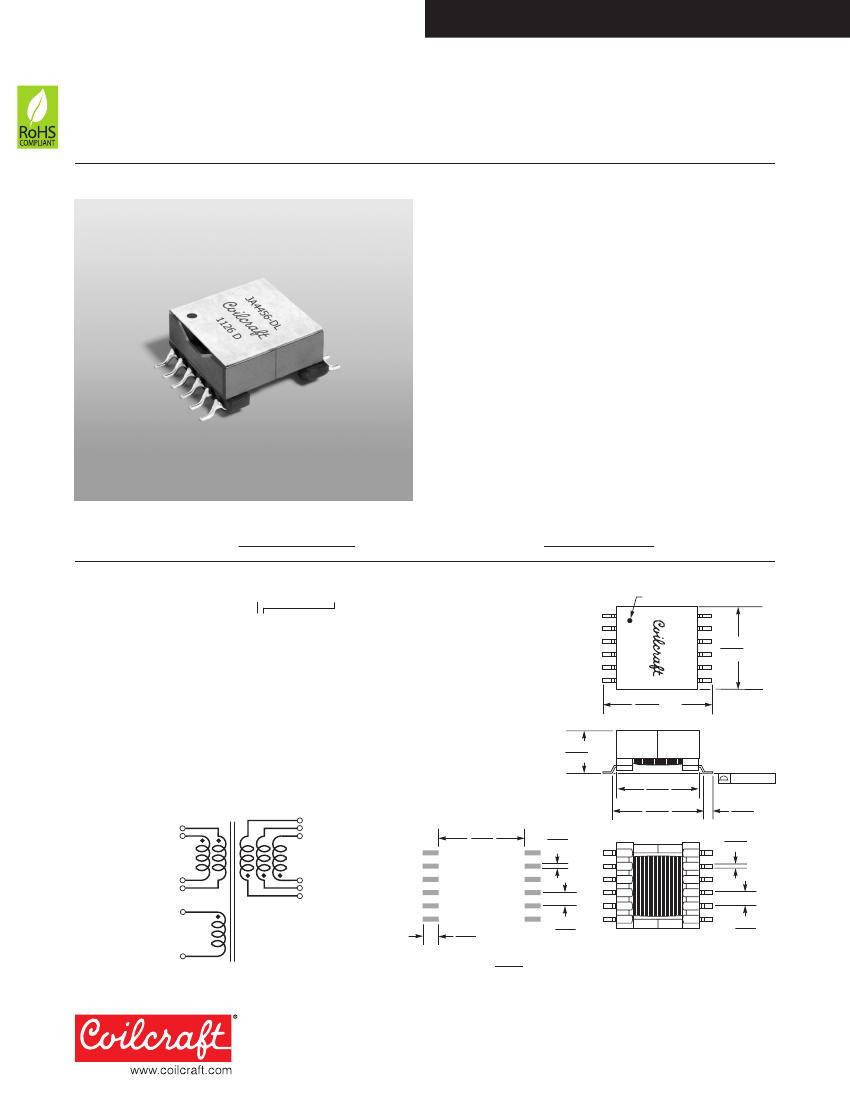

Document 984
Flyback Transformer
For TI TPS23752
POE PD controller
• Developed for Texas Instruments green mode TPS23752 POE
PD controller
• 1500 Vrms, one minute isolation (hipot) primary and bias to
secondary; 500 Vrms, one minute isolation primary to bias;
750 Vrms all pins to the core.
Core material
Ferrite
Terminations
RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight
11.7 g
Ambient temperature
–40°C to +125°C
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
175 per 13″ reel Plastic tape: 44 mm wide, 0.5 mm thick,
32 mm pocket spacing, 12.0 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Part
number
1
JA4456-DL_
Inductance
at 0 A
2
±10% (µH)
70
DCR max (Ohms)
4
pri
sec
bias
0.07
0.0043
0.310
Leakage
inductance
5
max (µH)
0.615
Turns ratios
7
Capacitance
6
max (pF)
pri : sec
pri : bias
158
1
:
0.182
1
:
0.409
Ipk
3
(A)
3.3
Output
8
5 V, 5 A
1. When ordering, please specify
termination
and
packaging
codes:
1
JA4456-DLD
Termination: L
= RoHS tin-silver over tin over nickel over phos bronze.
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel).
B
= Less than full reel. In tape, but not machine ready. To have a leader and trailer added
6
($25 charge), use code letter D instead.
2. Inductance is for the primary, measured at 250 kHz, 0.5 Vrms.
3. Peak primary current drawn at minimum input voltage.
4. DCR for the primary and secondary are with the windings connected in parallel.
5. Leakage inductance is for the primary windings with all the secondary windings shorted.
6 Capacitance is for the primary, measured at 250 kHz, 0.5 Vrms with all secondary pins shorted.
0.50 max
7. Turns ratios are with the primary windings and secondary windings connected in parallel.
12,7
8. Output of the secondary is with all windings connected in parallel. Bias winding output is 12 V, 20 mA.
9. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
7
8
9
Dot indicates pin 1
12
JA4456-DL
7
1.181 max
30,00
XXXXY
0.810 max
20,57
0.827
21,00
0.969
24,60
0.004 /0,10
0.080
2,03
0.028
0,711
1
2
Pri
4
3
5
Sec
10
11
12
1
0.930
23,62
0.050
1,27
6
7
Recommended
Land Pattern
0.130
3,30
Dimensions are in
inches
mm
Bias
6
0.118
3,0
1
12
0.118
3,0
Primary windings and secondary windings
to be connected in parallel on PC board.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 984
Revised 5/17/16
© Coilcraft Inc. 2016
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
