Features
■
1-1/4 ” Rectangular / Multiturn
Cermet / Industrial / Sealed
■
Panel mount option available
■
Listed on the QPL
per MIL-PRF-22097
■
For trimmer applications/processing
guidelines,
click here

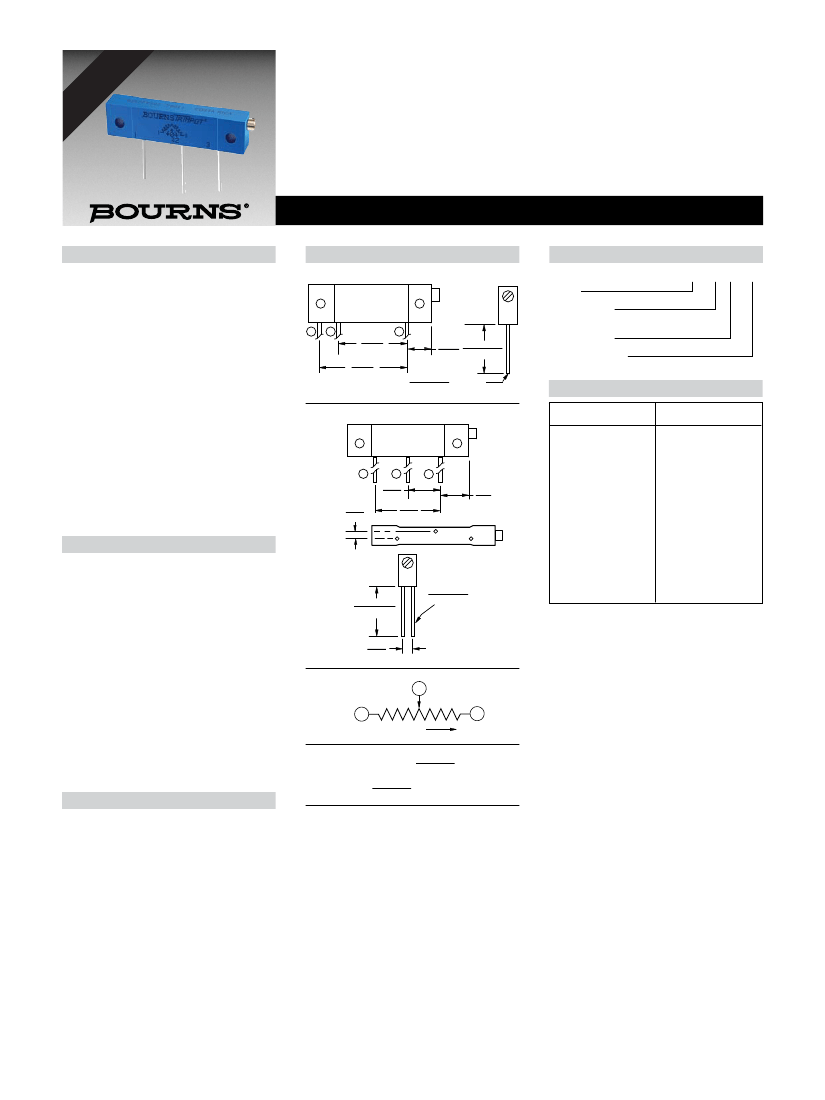

RJ12 - Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
........................ 10 ohms to 1 megohm
(see standard resistance table)
Resistance Tolerance ............ ±10 % std.
Absolute Minimum Resistance
............................1 % or 2 ohms max.
(whichever is greater)
Contact Resistance Variation
...........................1.0 % or 1 ohm max.
(whichever is greater)
Adjustability
Voltage ...................................±0.01 %
Resistance .............................±0.05 %
Resolution.................................... Infinite
Insulation Resistance ............... 500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level ............................... 900 vac
70,000 Feet ............................ 350 vac
Effective Travel .................22 turns nom.
Environmental Characteristics
Power Rating @ 70 °C (400 volts max.)
............................................... 1.0 watt
Power Rating @ 150 °C .............. 0 watt
Temperature Range ....-55 °C to +150 °C
Temperature Coefficient ....±100 ppm/°C
Seal Test ...................... 85 °C Fluorinert*
(pin styles only)
Humidity........ MIL-STD-202 Method 106
(2 %
ΔTR,
10 Megohms IR)
Vibration ....... 20 G (1 %
ΔTR;
1 %
ΔVR)
Shock............ 50 G (1 %
ΔTR;
1 %
ΔVR)
Load Life.. 1,000 hours 1.0 watt @ 70 °C
(3 %
ΔTR;
1% or 1 ohms,
whichever is greater, CRV)
Rotational Life........................200 cycles
(2 %
ΔTR;
1 % or 1 ohm,
whichever is greater, CRV)
Physical Characteristics
Torque............................. 5.0 oz-in. max.
Mechanical Stops ................. Wiper idles
Terminals .Solderable printed circuit pins
Flexible leads ..... (7 strands of 30 AWG)
Weight ......................................... 0.1 oz.
Marking .........Manufacturer’s trademark,
resistance code, terminal
numbers, date code, manufacturer’s
model number and style
Wiper ............... 50 % (Actual TR) ±10 %
Flammability ..........................U.L. 94V-0
Standard Packaging ..... 10 pcs. per tube
Adjustment Tool .............................. H-90
REV. 04/14
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
“Trimpot” is a registered trademark of Bourns, Inc.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Product Dimensions
RJ12FP
How To Order
MIL-PRF-22097
RJ12 F Y 103
Model
Characteristic
F = ±100 ppm/°C Temp. Coeff. Max.
2
1
17.78
(.700)
22.86
(.900)
3
6.60 12.70 ± .79
(.260) (.500 ± .031)
.71 ± .03
DIA. TYP.
(.028 ± .001)
Terminal Style
Resistance Code
Standard Resistance Table
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
25,000
50,000
100,000
200,000
250,000
500,000
1,000,000
Resistance
Code
100
200
500
101
201
501
102
202
502
103
203
253
503
104
204
254
504
105
RJ12FY
1
2.54
(.100)
2
3
7.62
(.300)
17.78
(.700)
6.60
(.260)
12.70 ± .79
(.500 ± .031)
.71 ± .03 DIA. TYP.
(.028 ± .001)
2.54
(.100)
RED
YELLOW
CCW
2
WIPER
1
CLOCKWISE
3
GREEN
CW
DIMENSIONS:
TOLERANCES: ±
0.25
(.010)
MM
(INCHES)
EXCEPT WHERE NOTED
