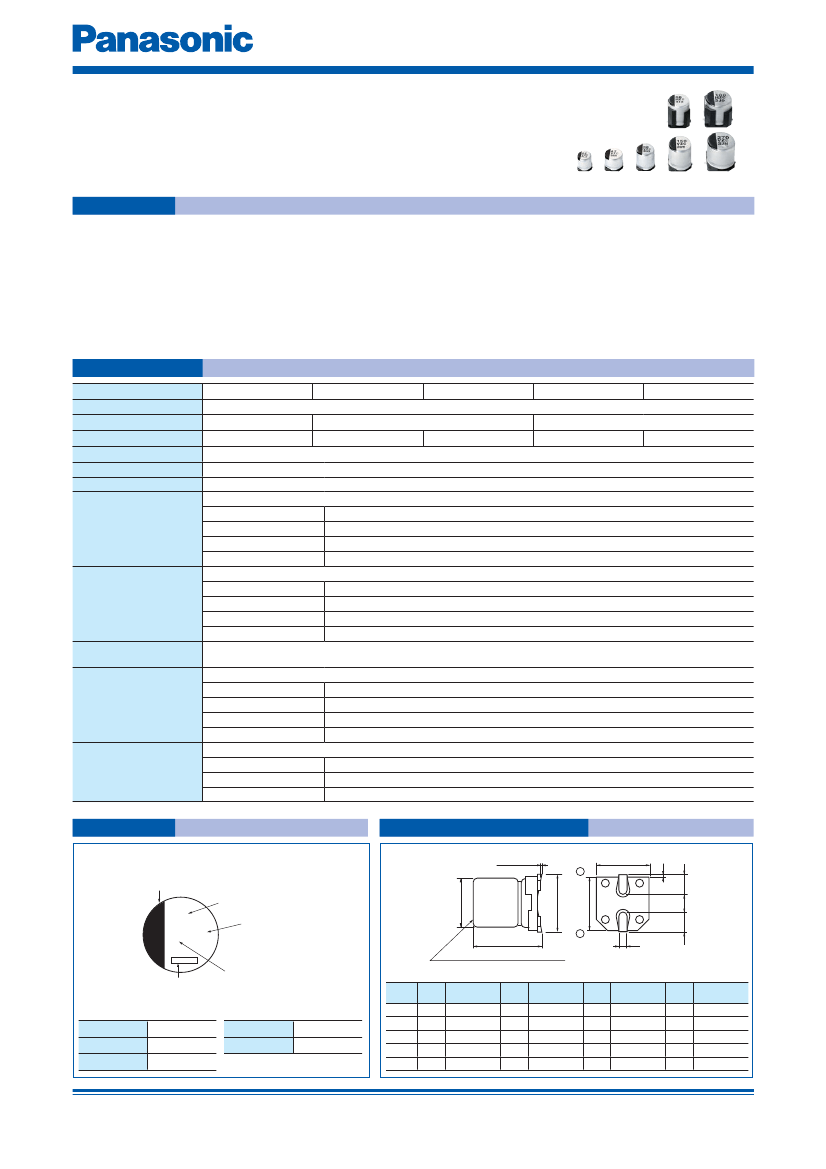

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors
Surface Mount Type
Series :
ZC
Type :
V
High temperature Lead-Free reflow
Features
●
Endurance: 4000 h at 125 °C (High temperature / Long life)
●
Low ESR and high ripple current (85 % over, Lower ESR than current V-TP)
●
High-withstand voltage (25 V.DC to 80 V.DC), Low LC (0.01 CV or 3 μA)
●
Equivalent to conductive polymer type aluminum electrolytic capacitor
(There are little characteristics change by temperature and frequency)
●
Vibration-proof product is available upon request. (08 mm and larger)
●
AEC-Q200 compliant
●
RoHS directive compliant
Specifications
Size code
C
D
D8
F
G
Category temp. range
–55 °C to +125 °C
Rated voltage range
25 V.DC to 50 V.DC
25 V.DC to 63 V.DC
25 V.DC to 80 V.DC
Nominal cap.range
10 μF to 33 μF
10 μF to 56 μF
22 μF to 100 μF
22 μF to 220 μF
33 μF to 330 μF
Capacitance tolerance
±20 % (120 Hz/+20 °C)
DC leakage current
I
<
0.01 CV or 3 (μA) After 2 minutes (whichever is greater)
Dissipation factor (tan
d)

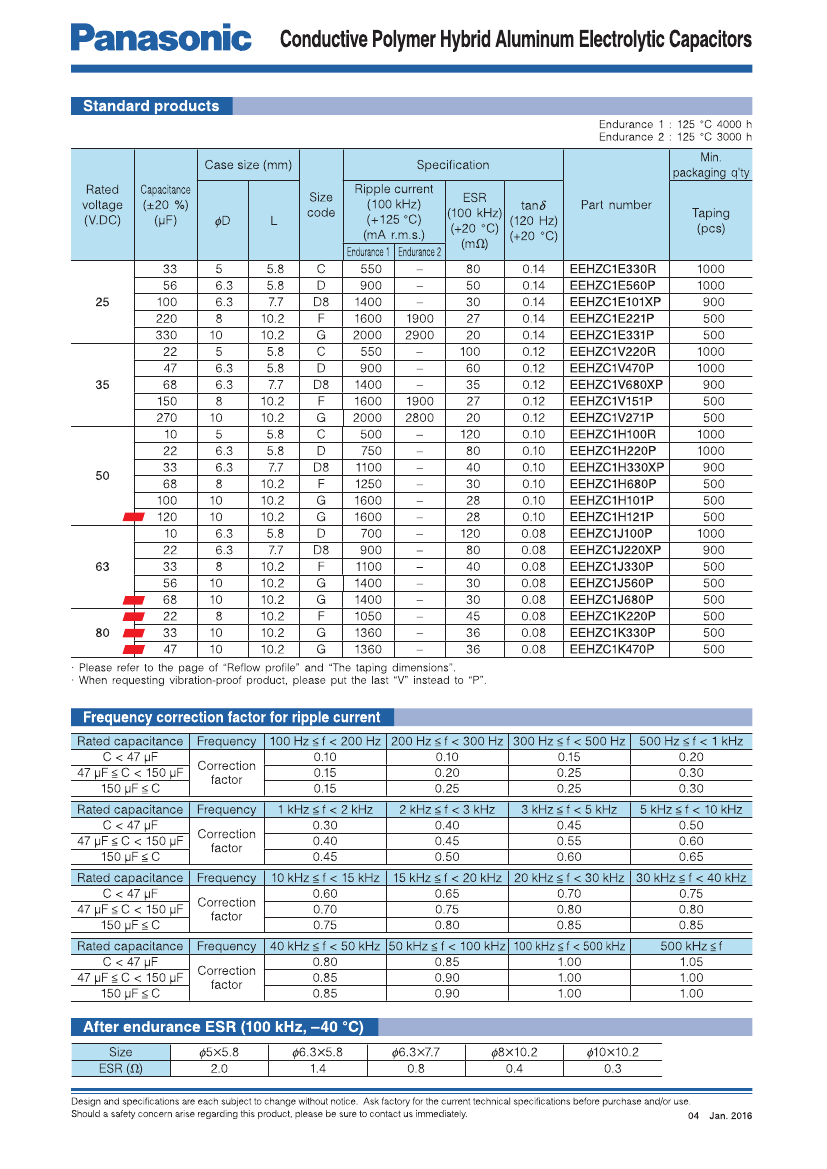

Please see the attached standard products list
125 °C, 4000 h, apply the rated ripple current without exceeding the rated voltage
Capacitance change Within ±30% of the initial value
Endurance 1
tan
d
<
200 % of the initial limit
E. S. R.
<
200 % of the initial limit
DC leakage current Within the initial limit
125 °C, 3000 h, apply the rated ripple current without exceeding the rated voltage
Capacitance change Within ±30% of the initial value
Endurance 2
tan
d
<
200 % of the initial limit
E. S. R.
<
300 % of the initial limit
DC leakage current Within the initial limit
After storage for 1000 hours at +125 °C±2 °C with no voltage applied and then being stabilized at +20 °C,
Shelf life
capacitors shall meet the limits specified in Endurance. (With voltage treatment)
85 °C, 85 % to 95 %, 2000 h, rated voltage applied
Capacitance change Within ±30% of the initial value
Damp heat (Load)
tan
d
<
200 % of the initial limit
E. S. R.
<
200 % of the initial limit
DC leakage current Within the initial limit
After reflow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.
Capacitance change Within ±10% of the initial value
Resistance to
soldering heat
tan
d
Within the initial limit
DC leakage current Within the initial limit
Marking
Example : 25 V.DC 33 μF
Marking color : BLACK
Dimensions (not to scale)
–
0D±0.5
B±0.2
Negative polarity marking (–)
(I)
(I)
( ) Reference size
(P)
W
K
0.3 max.
A±0.2
33
E ZC
Lot number
Capacitance (μF)
Series identification
H
L
Pressure relief (010 and larger)
Rated voltage mark
Size
code
+
(Unit : mm)
D
L
A, B
C
5.0 5.8±0.3 5.3
D
6.3 5.8±0.3 6.6
D8 6.3 7.7±0.3 6.6
F
8.0 10.2±0.3 8.3
G 10.0 10.2±0.3 10.3
H
6.5 max.
7.8 max.
7.8 max.
10.0 max.
12.0 max.
I
2.2
2.6
2.6
3.4
3.5
W
0.65±0.1
0.65±0.1
0.65±0.1
0.90±0.2
0.90±0.2
P
1.5
1.8
1.8
3.1
4.6
K
0.15
0.35
+ 0.20
-
+ 0.15
0.35
- 0.20
0.15
0.35
+ 0.20
-
0.70±0.2
0.70±0.2
Rated voltage mark
E
V
H
25 V.DC
35 V.DC
50 V.DC
J
K
63 V.DC
80 V.DC
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04
Jan. 2016
