Datasheet> All Categories > Passive components> C04UL2R1D-6SN-X0T

Preview

C04UL2R1D-6SN-X0T: CategoryPassive components; File Size231KB，1 Pages; ManufacturerDielectric Laboratories

Download Datasheet Parametric Compare View All

C04UL2R1D-6SN-X0T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C04UL2R1D-6SN-X0T	-	-	View	Buy Now

C04UL2R1D-6SN-X0T Parametric

Parameter Name	Attribute value
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Manufacturer	Dielectric Laboratories
RoHS	Details
Capacitance	2.1 pF
Voltage Rating DC	200 VDC
Dielectric	C0G (NP0)
Tolerance	0.5 pF
Case Code - in	0402
Case Code - mm	1005
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Product	RF Microwave / High Q
Packaging	Reel
Package / Case	0402 (1005 metric)
Factory Pack Quantity	5000
Termination Style	SMD/SMT
Type	Ultra Low ESR, High Q, NP0 RF and Microwave Capacitor
Unit Weight	0.000023 oz

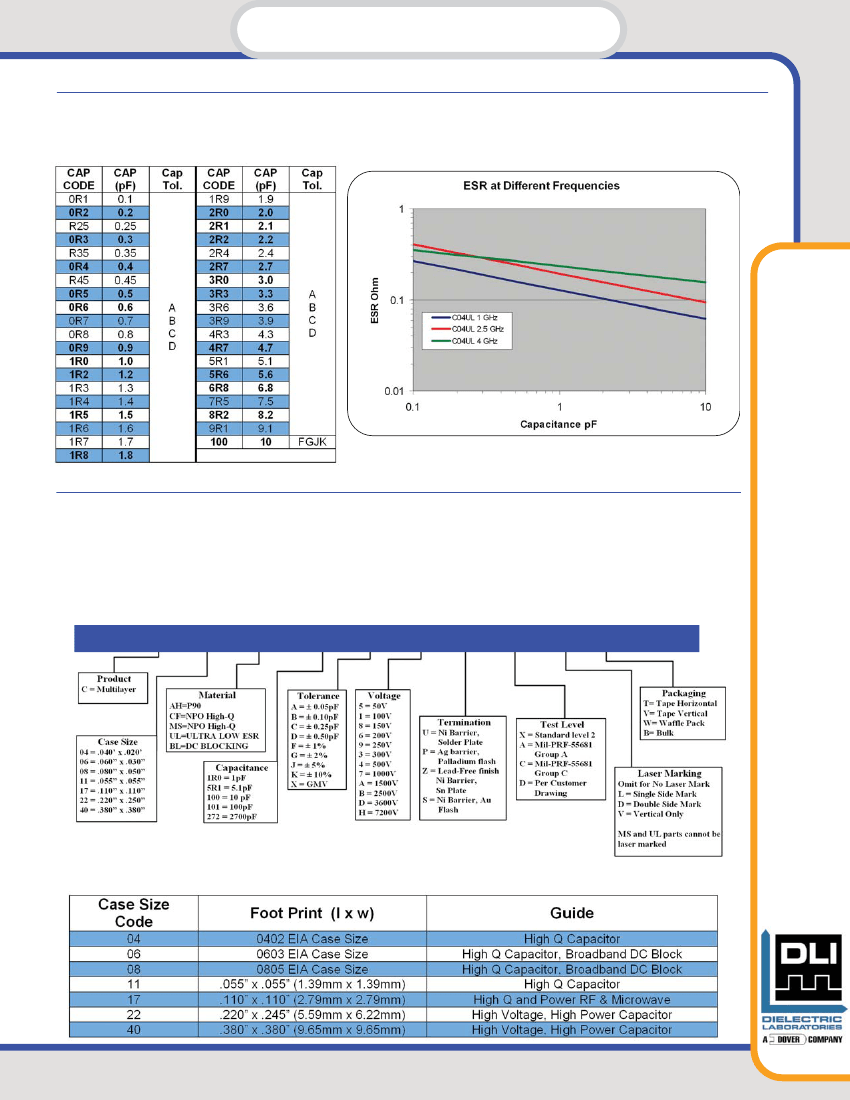

Preview

Download Datasheet

View All

What’s New

C04 0402 Case Size

DLI has added an 0402 case size, high Q product line available in the UL material system. C04

products are only offered in the RoHS compliant ‘S’ termination system (see table on page 6).

Dielectric Laboratories

C08 0805 Case Size

DLI has added an 0805 case size, high Q product line to its highly successful C08 Broadband

Blocking capacitors. This case size is available in UL and MS systems and their RoHS compliant

termination systems. For more information about the new C08 high Q product line, see page 9.

Multilayer Capacitor Part Number Identification

C

17

AH

100

J

4

U

X

-

T

Capacitor Case Size Code

www.dilabs.com

5

C04UL2R1D-6SN-X0T Related Products

	C04UL2R1D-6SN-X0T	C04UL4R7D-6SN-X0T	C04UL0R7D-6SN-X0T	C04UL0R4B-6SN-X0T	C04UL8R2D-6SN-X0T	C04UL1R7D-6SN-X0T	C04UL3R0D-6SN-X0T	C04UL3R9D-6SN-X0T	C04UL1R5B-6SN-X0T
Description			Multilayer Ceramic Capacitors MLCC - SMD/SMT .7pF 200V +/-.50pF Ultra Low ESR	Multilayer Ceramic Capacitors MLCC - SMD/SMT .4pF 200V +/-.10pF Ultra Low ESR	Multilayer Ceramic Capacitors MLCC - SMD/SMT 8.2pF 200V +/-.50pF Ultra Low ESR			Multilayer Ceramic Capacitors MLCC - SMD/SMT 3.9pF 200V +/-.50pF Ultra Low ESR	Multilayer Ceramic Capacitors MLCC - SMD/SMT 1.5pF 200V +/-.10pF Ultra Low ESR
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Manufacturer	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories	Dielectric Laboratories
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Capacitance	2.1 pF	4.7 pF	0.7 pF	0.4 pF	8.2 pF	1.7 pF	3 pF	3.9 pF	1.5 pF
Voltage Rating DC	200 VDC	200 VDC	200 VDC	200 VDC	200 VDC	200 VDC	200 VDC	200 VDC	200 VDC
Dielectric	C0G (NP0)	C0G (NP0)	C0G (NP0)	C0G (NP0)	C0G (NP0)	C0G (NP0)	C0G (NP0)	C0G (NP0)	C0G (NP0)
Tolerance	0.5 pF	0.5 pF	0.5 pF	0.1 pF	0.5 pF	0.5 pF	0.5 pF	0.5 pF	0.1 pF
Case Code - in	0402	0402	0402	0402	0402	0402	0402	0402	0402
Case Code - mm	1005	1005	1005	1005	1005	1005	1005	1005	1005
Maximum Operating Temperature	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
Product	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q	RF Microwave / High Q
Packaging	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel
Package / Case	0402 (1005 metric)	0402 (1005 metric)	0402 (1005 metric)	0402 (1005 metric)	0402 (1005 metric)	0402 (1005 metric)	0402 (1005 metric)	0402 (1005 metric)	0402 (1005 metric)
Factory Pack Quantity	5000	5000	5000	5000	5000	5000	5000	5000	5000
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Type	Ultra Low ESR, High Q, NP0 RF and Microwave Capacitor	Ultra Low ESR, High Q, NP0 RF and Microwave Capacitor	Ultra Low ESR, High Q, NP0 RF and Microwave Capacitor	Ultra Low ESR, High Q, NP0 RF and Microwave Capacitor	Ultra Low ESR, High Q, NP0 RF and Microwave Capacitor	Ultra Low ESR, High Q, NP0 RF and Microwave Capacitor	Ultra Low ESR, High Q, NP0 RF and Microwave Capacitor	Ultra Low ESR, High Q, NP0 RF and Microwave Capacitor	Ultra Low ESR, High Q, NP0 RF and Microwave Capacitor
Unit Weight	0.000023 oz	0.000023 oz	0.000023 oz	0.000023 oz	0.000023 oz	0.000023 oz	0.000023 oz	0.000023 oz	0.000023 oz
