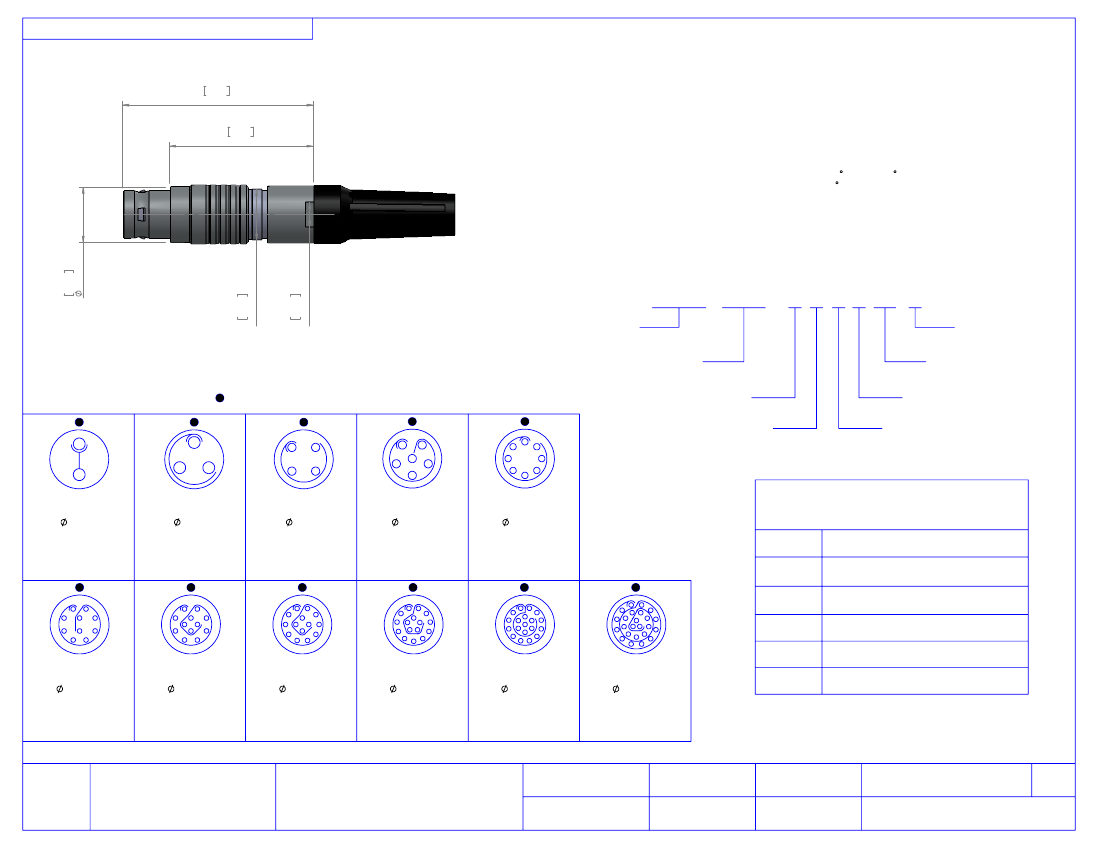

DESCRIPTION: QUIK-LOQ - MALE - CABLE MOUNT
1.890
48.01
1.417
36.00
CHARACTERISSTICS
UNITS = MM [INCHES]
MATERIALS
HOUSING : BRASS
HOUSING PLATING : 196µ" NICKEL MIN.
SHELL & COLLET NUT: BRASS, 196µ" CHROME PLATED MIN.
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
STRAIN RELIEF(BOOT) : THERMOPLASTIC POLYURETHANE
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TOURQUE VALUE : 2.5 Nm [22.1 IN/LBS]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 50
0.591
15.00
0.512
13.00
0.512
13.00
822B YYY - 1 7 3 L YY 1
SERIES
15.00 [0.591]
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
1 = MALE
CABLE MOUNT
1 = GOLD FLASH
COLLET SIZE
**SEE CHART B**
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
CHART A
1
1
= KEY LOCATION
**VIEW FROM TERMINATION END**
1
1
1
CHART B
2 POSITION
14 AWG MAX.
30 AMP MAX.
PIN
= 2.00 [0.079]
CONTACT
RESISTANCE
= 3 mΩ
TEST VOLTAGE
= 2100V
WORKING VOLTAGE
= 700V
3 POSITION
18 AWG MAX.
17 AMP MAX.
PIN
= 1.60 [0.063]
CONTACT
RESISTANCE
= 4 mΩ
TEST VOLTAGE
= 2400V
WORKING VOLTAGE
= 800V
4 POSITION
20 AWG MAX.
15 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 mΩ
TEST VOLTAGE
= 1850V
WORKING VOLTAGE
= 610V
6 POSITION
20 AWG MAX.
12 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 mΩ
TEST VOLTAGE
= 1350V
WORKING VOLTAGE
= 450V
8 POSITION
22 AWG MAX.
10 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1500V
WORKING VOLTAGE
= 500V
COLLET
SIZE
50
60
1
WIRE DIAMETER
4.30 [0.169] ~ 5.20 [0.205]
5.30 [0.209] ~ 6.20 [0.244]
6.30 [0.248] ~ 7.20 [0.283]
7.30 [0.287] ~ 8.20 [0.323]
8.30 [0.327] ~ 9.20 [0.362]
9.30 [0.366] ~ 10.20 [0.402]
1
1
1
1
1
70
80
10 POSITION
22 AWG MAX.
8 AMP MAX.
= 0.90 [0.035]
PIN
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1450V
WORKING VOLTAGE
= 500V
12 POSITION
24 AWG MAX.
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 480V
14 POSITION
24 AWG MAX.
6.5 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 1150V
WORKING VOLTAGE
= 380V
16 POSITION
24 AWG MAX.
6 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 950V
WORKING VOLTAGE
= 315V
19 POSITION
24 AWG MAX.
5 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
26 POSITION
28 AWG MAX.
2 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 mΩ
TEST VOLTAGE
= 950V
WORKING VOLTAGE
= 315V
90
00
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
M. SIGMON
DATE:
02-03-16
SCALE:
N.T.S.
SHEET
1
OF
1
REV:
6
CHECKED:
DATE:
DWG NO.
822BYYY-173LYY1
