FQI46N15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> FQI46N15

FQI46N15: Description150V N-Channel MOSFET; CategoryDiscrete semiconductor The transistor; File Size723KB，9 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

FQI46N15 Overview

150V N-Channel MOSFET

FQI46N15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	TO-262
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Avalanche Energy Efficiency Rating (Eas)	650 mJ
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	150 V
Maximum drain current (Abs) (ID)	45.6 A
Maximum drain current (ID)	45.6 A
Maximum drain-source on-resistance	0.042 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-262AA
JESD-30 code	R-PSIP-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	210 W
Maximum pulsed drain current (IDM)	182.4 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

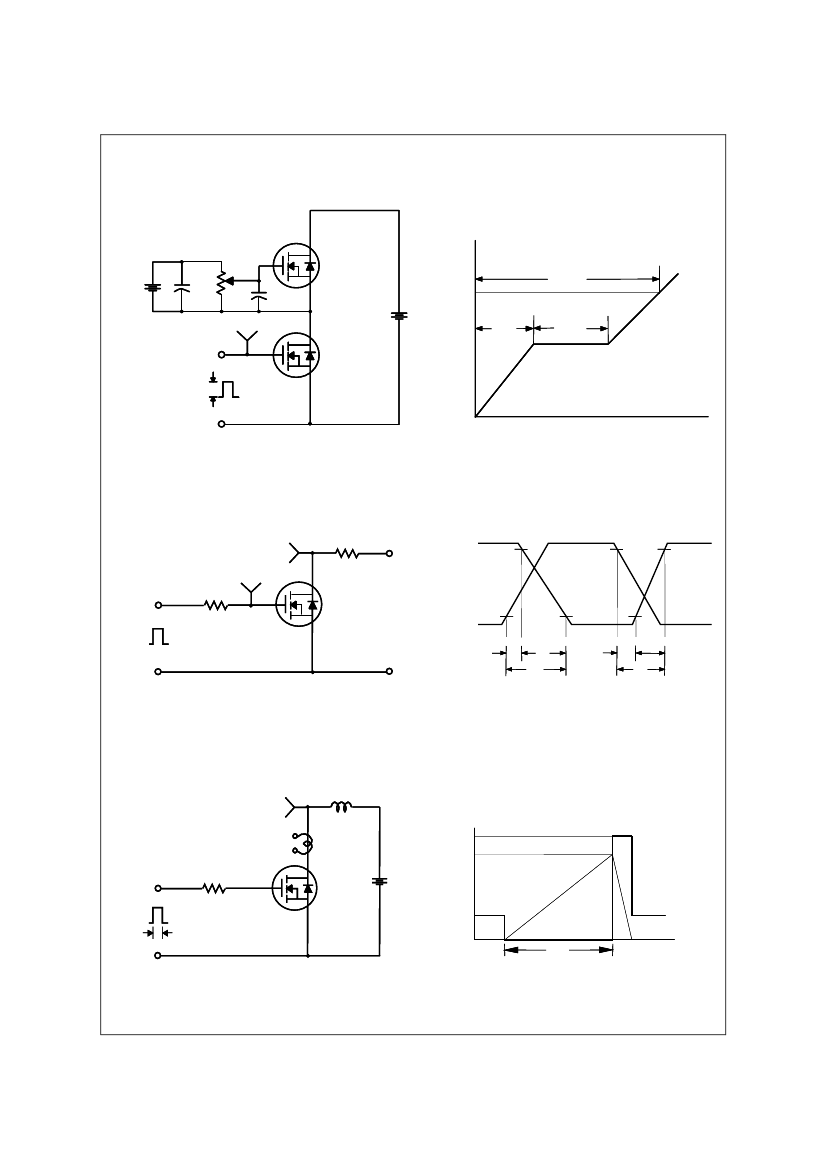

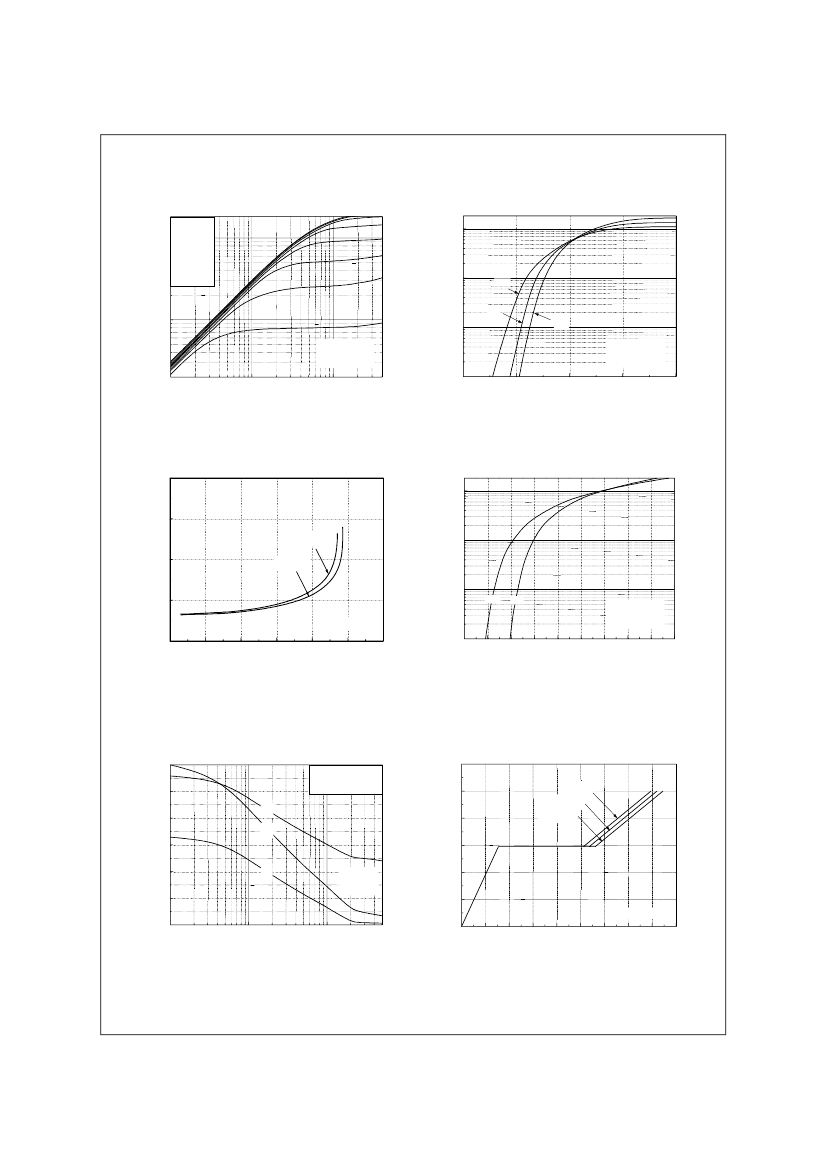

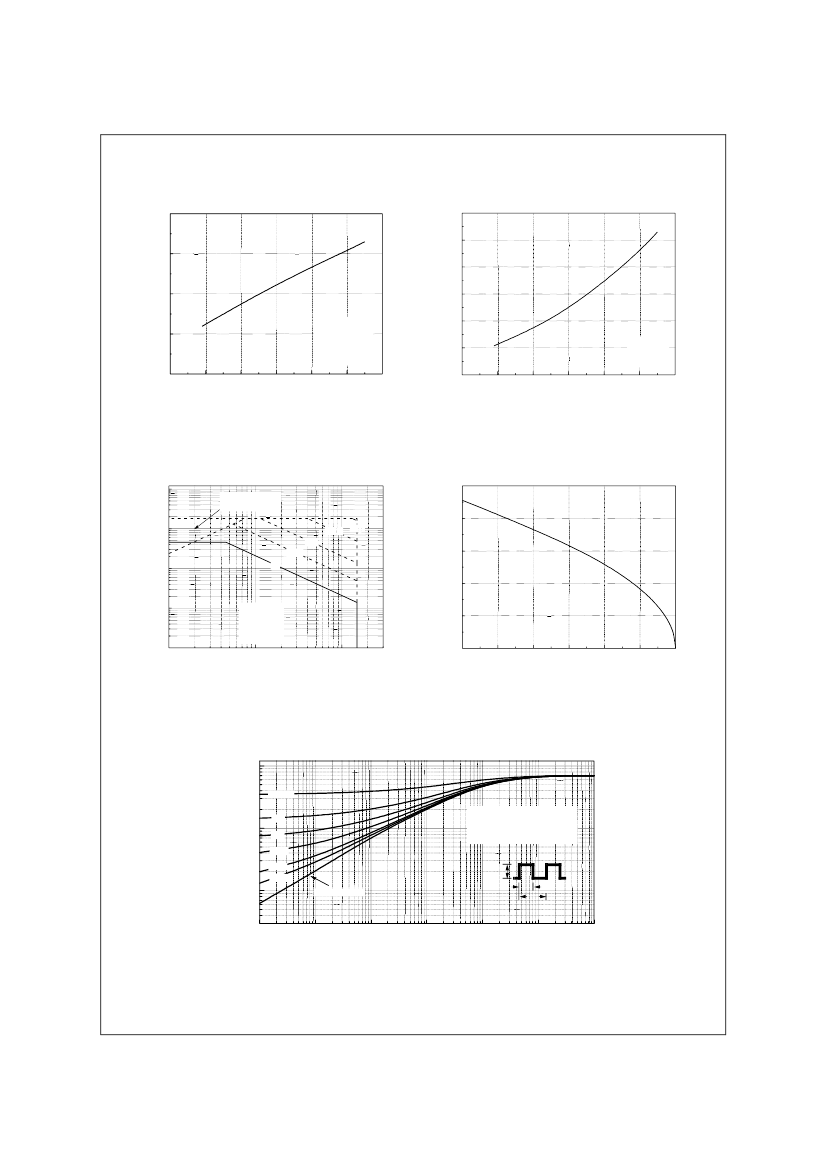

Preview

Download Datasheet

View All

QFET

&' ()*'+,-

.+ +&/Ω0,

.*+,

3' 4

*++4

*++5 !

6 !!$

*7'° 8 9

! "

./':4

.*++:4

*'+

&' (

;/ /

*3/ &

±/'

)

B$:

<)!

-!)!

< @-

!!$

< 2

./':4A

< 2

./':4

"!/':

*$3

('+

&' (

; 7'

/*+

* &;

''C*7'

;++

) " A

) "

(/ '

FQI46N15 Related Products

	FQI46N15	FQB46N15
Description	150V N-Channel MOSFET	150V N-Channel MOSFET
Is it Rohs certified?	incompatible	incompatible
Maker	Fairchild	Fairchild
Parts packaging code	TO-262	TO-263
package instruction	IN-LINE, R-PSIP-T3	SMALL OUTLINE, R-PSSO-G2
Contacts	3	3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Avalanche Energy Efficiency Rating (Eas)	650 mJ	650 mJ
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	150 V	150 V
Maximum drain current (Abs) (ID)	45.6 A	45.6 A
Maximum drain current (ID)	45.6 A	45.6 A
Maximum drain-source on-resistance	0.042 Ω	0.042 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-262AA	TO-263AB
JESD-30 code	R-PSIP-T3	R-PSSO-G2
JESD-609 code	e0	e0
Number of components	1	1
Number of terminals	3	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	175 °C	175 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	210 W	210 W
Maximum pulsed drain current (IDM)	182.4 A	182.4 A
Certification status	Not Qualified	Not Qualified
surface mount	NO	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
