TS53
Vishay Sfernice
Surface Mount Miniature Trimmers
Single-Turn Cermet Sealed
FEATURES
•
0.25 W at 70 °C
•
For PCB version see T53Y series
•
Wide ohmic range (10
Ω
to 1 MΩ)
•
Small size for optimum packing density
•
Suitable for both manual or automatic operation
•
RoHS compliant since data code 0445
The TS53 trimming potentiometer has been designed for
surface mount applications and offers volumetric efficiency
(5 x 5 x 2.7 mm) with high performance and stability.
The TS53 design is suitable for both manual or automatic
operation, and can withstand wave, and reflow soldering
techniques.

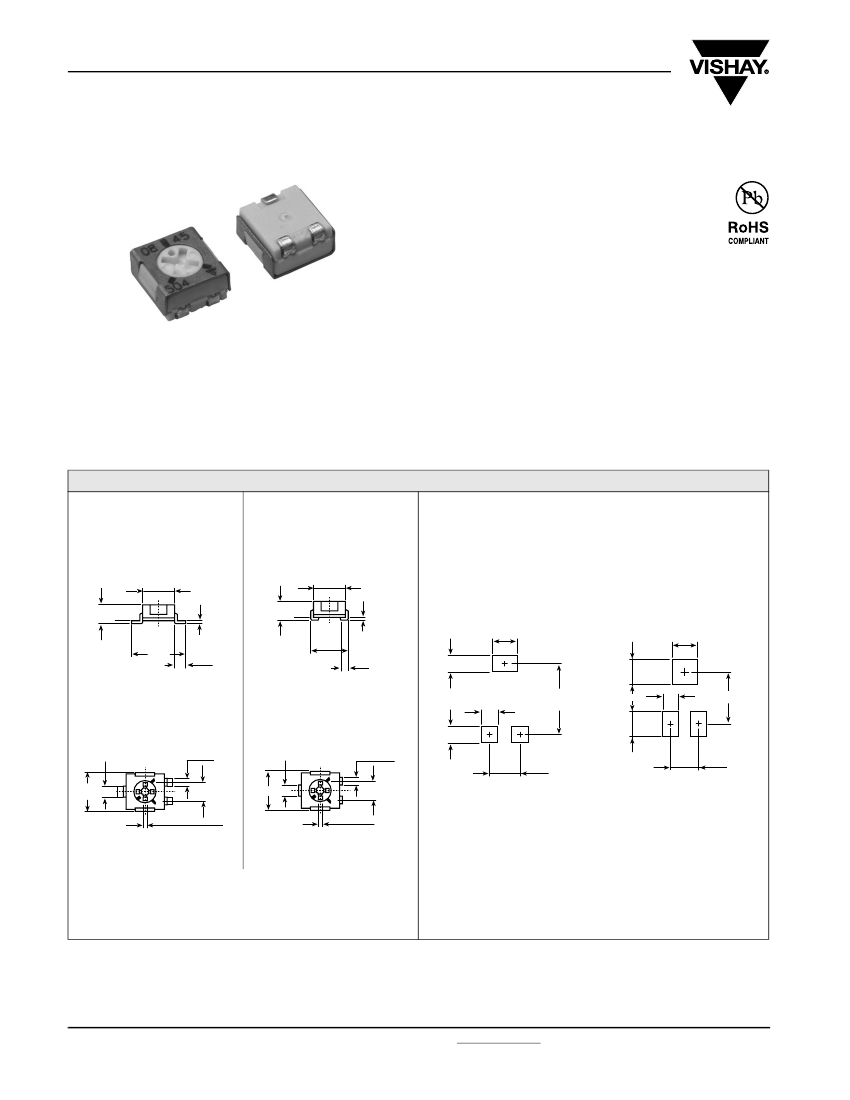

DIMENSIONS
in millimeters (± 0.25 mm)
RECOMMENDED
SOLDERING AREAS
TS53YL
TS53YJ
TS53YL
TS53YJ
5
0.20
2.7
2.7
5
0.20
2
6.4
0.65
5.5
1.1
1.3
b
2
5.5
1.3
2
1.3
c
a
2.3
2.30
c
c
a
2.3
1.3
b
2
4
1 × 0.20
a
b
5
103
A6
0.9 × 0.20
1 x 0.20
b
a
0.9 x 0.20
2.30
c
5
Cruciform screwdriver slot
Ø 2.5, width 0.5
Deep: 0.55
Max. deep (center): 0.7
Tolerances unless otherwise specified ± 0.25 mm
www.vishay.com
18
For technical questions, contact: sfer@vishay.com
Document Number: 51008
Revision: 22-Dec-08
TS53
Surface Mount Miniature Trimmers
Single-Turn Cermet Sealed
ELECTRICAL SPECIFICATIONS
Resistive Element
Electrical Travel
Resistance Range
Standard Series
Tolerance Standard
Cermet
220° ± 15°
10
Ω
to 1 MΩ
1-2-5
± 20 %
Vishay Sfernice
CIRCUIT DIAGRAM
Variation Law
linear
a
(1)
b
(2)
cw
c
(3)
0.25 W at 70 °C
0.25
0.20
POWER IN W
0.15
Power Rating
0.10
0.05
0
0
20
40
60 70
100
120
140
155
AMBIENT TEMPERATURE IN °C
Temperature Coefficient
Limiting Element Voltage (Linear Law)
Contact Resistance Variation
End Resistance (Typical)
Dielectric Strength (RMS)
Insulation Resistance
See Standard Resistance Element Data
200 V
1 % or 3
Ω
0.1 % or 3
Ω
1000 V
1 GΩ
MECHANICAL SPECIFICATIONS
Mechanical Travel
Operating Torque (max. Ncm)
End Stop Torque (max. Ncm)
Net Weight (max. g)
Terminals
270° ± 10°
1.5
3.5
0.15
Pure Sn (e3)
ENVIRONMENTAL SPECIFICATIONS
Temperature Range
Climatic Category
Sealing
MSL Level
- 55 °C to + 125 °C
55/125/56
Sealed container IP67
4
Document Number: 51008
Revision: 22-Dec-08
For technical questions, contact: sfer@vishay.com
www.vishay.com
19
TS53
Vishay Sfernice
Surface Mount Miniature Trimmers
Single-Turn Cermet Sealed
PERFORMANCE
TYPICAL VALUES AND DRIFTS
TESTS
CONDITIONS
1000 hours at rated power
90'/30' - ambient temperature + 70 °C
Phase A dry heat 125 °C
Phase B damp heat
Phase C cold - 55 °C
Phase D damp heat 5 cycles
Temperature 40 °C - RH 93 %
56 days
55 °C to + 125 °C - 5 cycles
100 cycles - rated power
50 g - 11 ms
3 successive shocks in 3 directions
10 - 55 Hz
0.75 mm or 10 g - 6 hours
±2%
±2%
ΔRT
(%)
RT
ΔR
1-2
(%)
R
1-2
±3%
±3%
Load Life
Contact resistance variation:
ΔR
< 1 % Rn
Climatic Sequence
±2%
Dielectric strength: 1000 V RMS
Insulation resistance: > 10
4
MΩ
±1%
± (3 % + 5
Ω)
±1%
±1%
±3%
Long Term Damp Heat
Thermal Shock
Rotational Life (Electrical and Mechanical)
Shock
Vibration
ΔV
1-2
≤
±2%
V
1-3
ΔV
1-2
≤
±1%
V
1-3
ΔV
1-2
≤
±1%
V
1-3
STANDARD RESISTANCE ELEMENT DATA
STANDARD
RESISTANCE
VALUES
Ω
10
20
50
100
200
500
1K
2K
5K
10K
20K
50K
100K
200K
500K
1M
LINEAR LAW
MAX. CUR.
MAX.
MAX.
POWER WORKING THROUGH
AT 70 °C VOLTAGE ELEMENT
W
0.25
V
1.58
2.24
3.54
5.00
7.07
11.2
15.8
22.4
35.4
50.0
70.7
112
158
200
200
200
mA
158
112
71
50
35
22
16
11
7
5
3.5
2.2
1.6
1.0
0.4
0.2
TYPICAL
TCR
- 55 °C
+ 125 °C
ppm/°C
MARKING
VISHAY trademark, ohmic value, manufacturing date.
The ohmic value is indicated by a 3 figure code, the first two
are significant figures, the third one is the multiplier.
Example:
100 = 10
Ω
101 = 100
Ω
102 = 1000
Ω
503 = 50 000
Ω
SOLDERING RECOMMENDATIONS
See Application notes
CAUTION
± 100
Reflow soldering must be done within 72 h while stored
under a max. temperature of 30 °C, 60 % RH after opening
the dry pack envelope.
0.25
0.20
0.08
0.04
RECOMMENDED METHOD OF STORAGE
Dry box storage is recommended as soon as the hermetic
bag has been opened to prevent moisture absorption. The
following conditions should be observed, if dry boxes are not
available:
•
Storage temperature 10 °C to 30 °C
•
Storage humidity
≤
60 % RH max.
After more than 72 h under these conditions, moisture
content will be too high for reflow soldering.
In case of moisture absorption, the devices will recover to the
former condition by drying under the following condition:
192 h at 40 °C + 5 °C/- 0 °C and < 5 % RH (dry air/nitrogen) or
96 h at 60 °C + 5 °C and < 5 % RH for all device containers
(not suitable for reel) or
24 h at 125 °C + 5 °C (not suitable for reel)
www.vishay.com
20
For technical questions, contact: sfer@vishay.com
Document Number: 51008
Revision: 22-Dec-08
TS53
Surface Mount Miniature Trimmers
Single-Turn Cermet Sealed
PACKAGING
On tape and reel of 500 pieces, code R10 (TR500) and 2000 pieces, code R20 (TR2000)
3 solts - width 2 to 120° - ø ext. 23
Ø 12.7
2
Vishay Sfernice
Ø
70
Ø
178
0.3
±2
8
13
5.2
12
7.6
5.5
3.2
1.75
4
2
Ø
1.5
Cover tape panel strength specifications EIA 481 A and CEI 60286-3.
DRYPACK
Devices are packed in moisture barrier bags to prevent the products from moisture absorption during transportation and
storage. Each bag contains a desiccant.
SAP ORDERING INFORMATION
(Part Number 15 digits)
T
S
5
3
Y
L
5
0
4
M
R
1
0
MODEL
STYLE
YL
YJ
OHMIC VALUE
From
10
Ω
to 1 MΩ
504 = 500 kΩ
TOLERANCE
± 20 %
PACKAGING
R10 =
Reel 500 pieces
R20 =
Reel 2000 pieces
SPECIAL
NUMBER
(if applicable)
Given by
VISHAY
for custom
design
PART NUMBER DESCRIPTION
(for information only)
TS53
MODEL
YL
STYLE
500K
VALUE
20 %
TOLERANCE
SPECIAL
TR500
PACKAGING
e3
LEAD (Pb)-FREE
Document Number: 51008
Revision: 22-Dec-08
For technical questions, contact: sfer@vishay.com
www.vishay.com
21
