73780-0134

Description
High Speed / Modular Connectors VERT HDM BKPLANE 72 board-to-board hdr
CategoryThe connector    The connector
File Size30KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

73780-0134 Online Shopping

Suppliers Part Number Price MOQ In stock
73780-0134 - - View Buy Now

73780-0134 Overview

High Speed / Modular Connectors VERT HDM BKPLANE 72 board-to-board hdr

73780-0134 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresSTACKED
body width0.528 inch
subject depth0.551 inch
body length0.952 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability250 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.6116 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
MIL complianceNO
Manufacturer's serial number73780
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number6
Number of rows loaded6
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.098 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts72
UL Flammability Code94V-0
Base Number Matches1

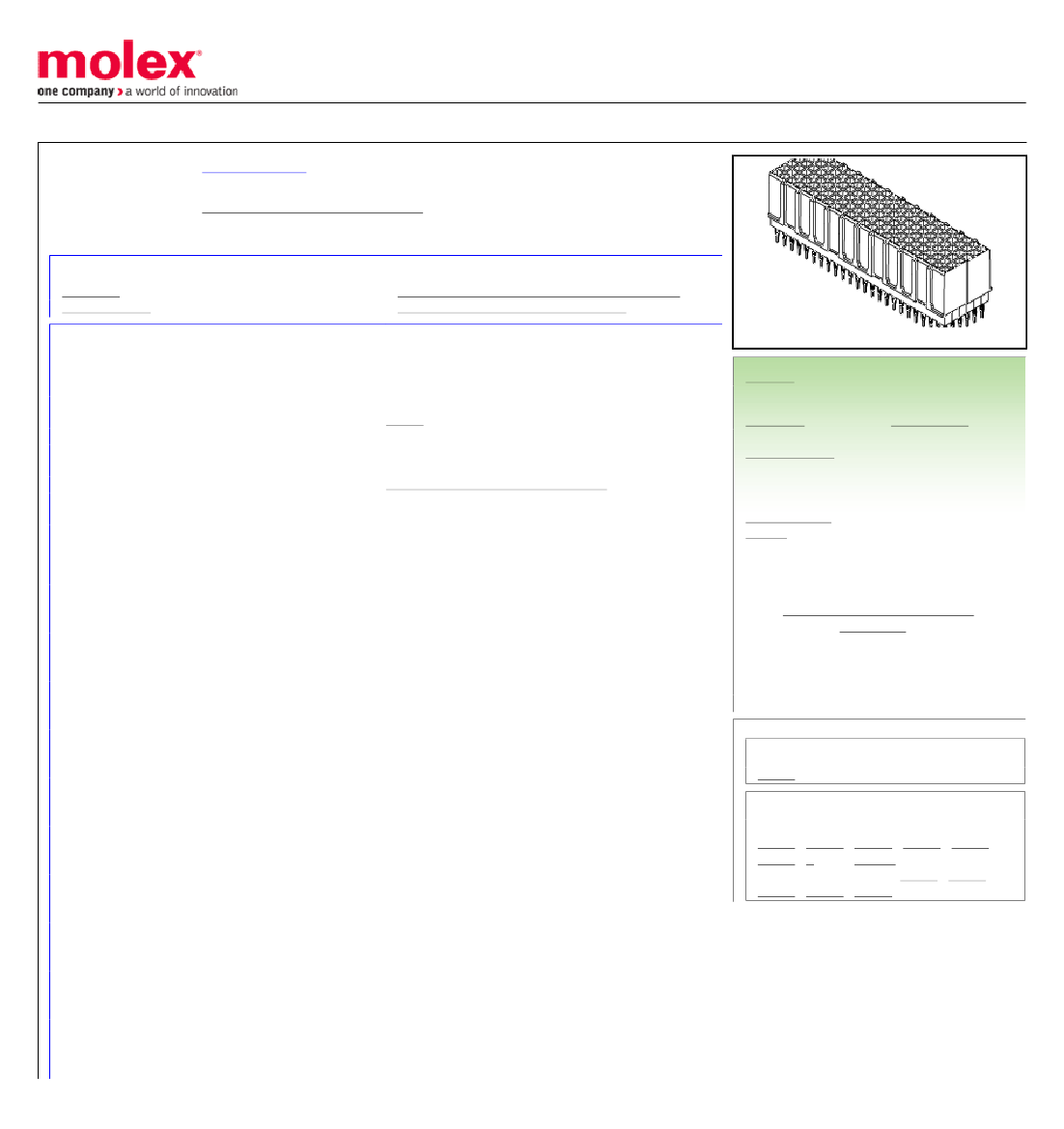

This document was generated on 10/06/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0737800134
Active
HDM® Backplane Connector System
HDM Board-to-Board Daughtercard Receptacle, Vertical, Signal Module, 72 Circuits,
Mounted Height 14.00mm, Pin Length 2.50mm, Solder Tail
Documents:
3D Model
Drawing (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Product Specification PS-73780-999-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
E29179
Backplane Connectors
73780
Daughtercard, Mezzanine
Solder Tail
PCB Receptacle
HDM® Backplane Connector System
HDM
800754772518
72
72
Black
250
No
94V-0
No
None
Copper-Nickel-Tin
Gold
Tin
High Temperature Thermoplastic
10.002/g
12
Open Pin Field
6
Vertical
2.50mm
No
None
1.60mm
Tube
2.00mm
2.00mm
0.762µm
2.540µm
No
Yes
Yes
-55°C to +105°C
Through Hole
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
73780 Series
Mates With
HDM Board-to-Board Backplane Header
73642 , 73643 , 73644 , 73942 , 73943 ,
73944 , 7 4349, 74428. HDM Board-to-
Board Stacking Header 73769 , 73770 ,
73782 , 73783 , 73771
