896-43-008-90-000000: DescriptionModular Connectors / Ethernet Connectors 1X1 TAB DOWN 10/100; CategoryThe connector The connector; File Size465KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

896-43-008-90-000000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	896-43-008-90-000000	-	-	View	Buy Now

896-43-008-90-000000 Overview

Modular Connectors / Ethernet Connectors 1X1 TAB DOWN 10/100

896-43-008-90-000000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	PFOA, PFOS, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	OTHER STACKING CONNECTOR: 4 CONTACTS
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.61 inch
subject depth	0.668 inch
body length	0.492 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	GOLD (30) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	USB, SER A FLAT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	TWO
PCB row number	1+1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.6162 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STAINLESS STEEL
Terminal length	0.115 inch
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

IO

SOCKETS

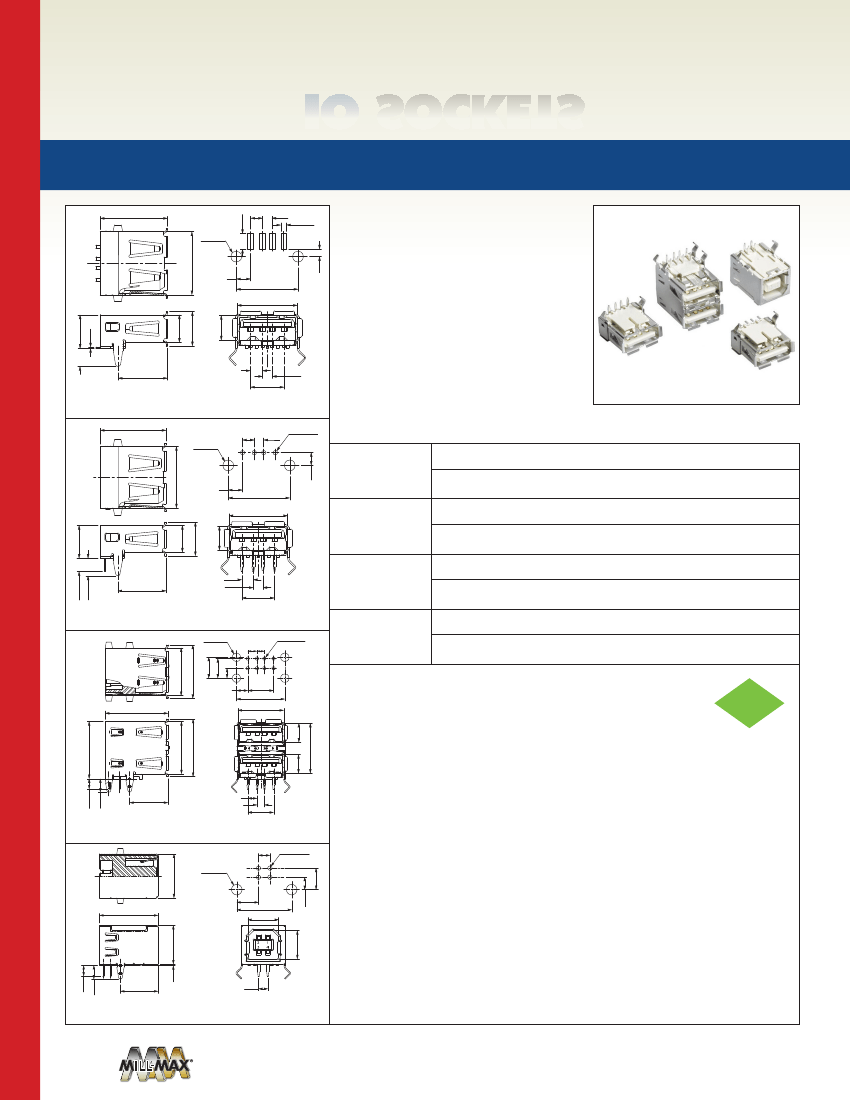

SERIES 896, 897 • UNIVERSAL SERIAL BUS • SOCKETS

.113

.551

.098

(2 PLC)

.079

.044 Typ.

(4X)

•

USB receptacles for through-hole and

surface mount

Ø.091±.003

(2 PLC)

.516

.083

.121

.517

.492

.275

.010

.225

.280

.202

•

Plug retention tabs

Kinked locating legs for secure PCB retention

Fully shielded

Fully compatible with USB 1.0 and 2.0

specifications

ASTM-D-4566

.146

•

Passes 16MHz signal attentuation per

.405

.098

.276

.079

FIG. 1

.551

.098

Ø.091±.003

(2 PLC)

•

Packaged in trays, 150 pieces per tray

Ø.036±.003

(4 PLC)

.079

ORDERING INFORMATION

FIG. 1

FIG. 2

FIG. 3

Type A Receptacle, Single, Surface Mount

896-43-004-00-000000

Type A Receptacle, Single, Through-Hole

896-43-004-90-000000

Type A Receptacle, Double, Through-Hole

896-43-008-90-000000

Type B Receptacle, Single, Through-Hole

897-43-004-90-000000

.516

.121

.517

.492

.225

.280

.275

.112

.146

.405

.098

.079

.276

FIG. 2

Ø.091±.003

(4 PLC)

.224

.098 .079

Ø.036±.003

(8 PLC)

.210

.516

.571

.107

.202

.107

FIG. 4

.121

.668

.276

.517

.492

.115

.146

.405

.098

.079

.276

FIG. 3

.098

Ø.091±.003

(2 PLC)

.107

Ø.036±.003

(4 PLC)

.185

PAGE 148 | IO SOCKETS

.188

.642

.474

.333

.146

.405

.098

FIG. 4

Materials:

RoHS - 2

Terminals: Copper Alloy, Tin-Plated

2011/65/EU

Casing and Shield: Stainless Steel

Insulator material: High temperature thermoplastic rated UL94V-0

Ratings:

Voltage: 30VAC (rms)

Current: 1A max. per contact for 30°C temperature rise

All housing materials rated for “lead-free” soldering up to 260º C

Electrical:

Contact resistance: 30mW max.

Insulation resistance: 1000MW min.

Dielectric withstanding voltage: 750VAC at sea level

Capacitance: 2pF max.

Mechanical:

Random vibration: No discontinuity >1μs per EIA 364-28, cond. V, letter A

Physical shock: No discontinuity >1μs per EIA 364-27, condition H

Durability: 1500 cycles min. per EIA 364-09

Mating force: 35 Newtons max. per EIA 364-13

Unmating force: 10 Newtons min. per EIA 364-13

Environmental:

Thermal shock per EIA 364-32, condition I

Humidity per EIA 364-31, method II, condition A

Temperature life per EIA 364-17, condition 3, method A

Technical Specifications

.610

.560

.615

.202

.474

.115

.015

.418

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

.306

.202

.536
