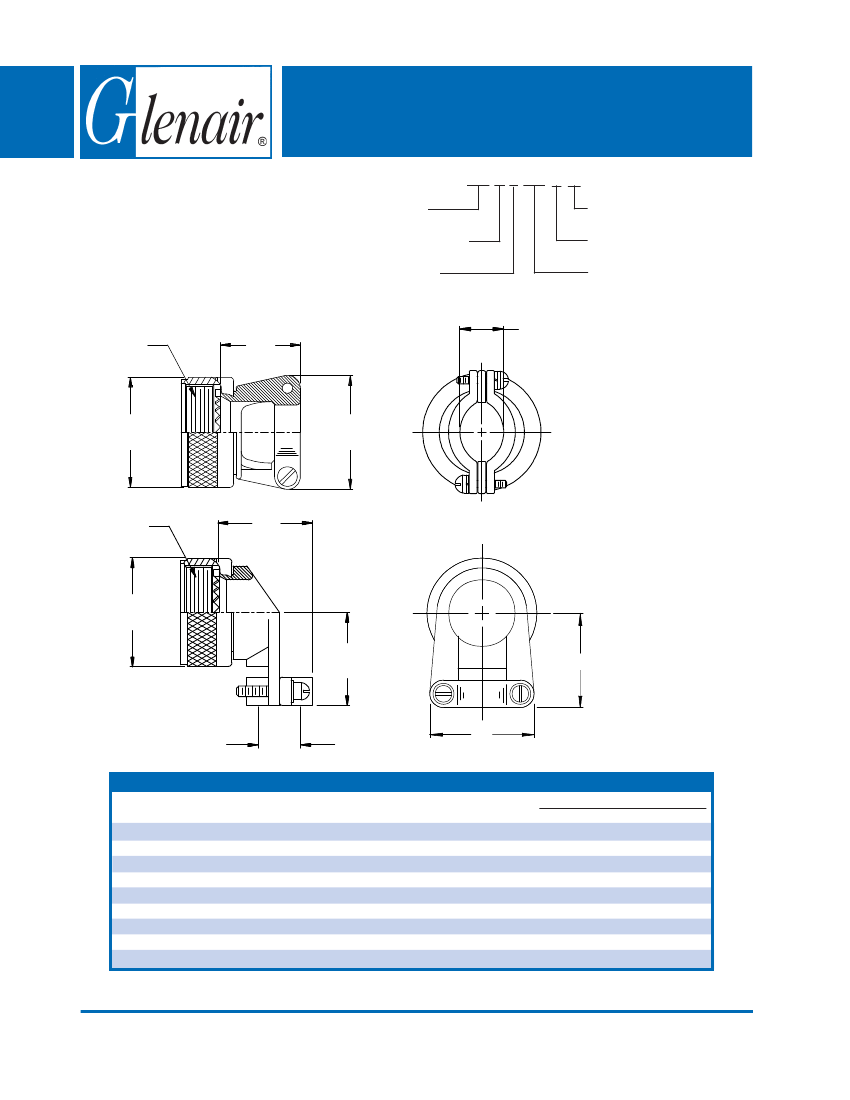

620-012
Strain Relief
Rotatable Coupling - Straight and 90°
620 F S 012 M 16
Product Series
Connector Designator
Angle and Profile
S = Straight
A = 90°
E
(Table III)
Cable
Entry
Shell Size (Table III)
Finish (Table II)
Basic Part No.
62
CONNECTOR
DESIGNATOR
F-L-S
ROTATABLE
COUPLING
A Thread
(Table I)
C (Table I)
F (Table III)
See inside back
cover fold-out or
pages 13 and 14
for Tables I and II.
1. Cable Entry is
defined as the
accommodation entry
for the wire bundle or
cable. Dimensions
are not intended for
inspection criteria.
2. Metric dimensions
(mm) are indicated in
parentheses.
A Thread
(Table I)
G
(Table III)
C (Table I)
H
(Table III)
H (Table III)
Cable
Entry
F
(Table III)
Shell
Size
08
10
12
14
16
18
20
22
24
E
Nom
.555 (14.1)
.665 (16.9)
.790 (20.1)
.790 (20.1)
.915 (23.2)
1.165 (29.6)
1.290 (32.8)
1.415 (35.9)
1.540 (39.1)
TABLE III: CABLE ENTRY
F
G
H
Max
Max
Max
.752 (19.1)
.704 (17.9)
.808 (20.5)
.832 (21.1)
.786 (20.0)
.867 (22.0)
.988 (25.1)
.979 (24.9)
.929 (23.6)
1.046 (26.6) 1.039 (26.4)
.992 (25.2)
1.319 (33.5) 1.188 (30.2) 1.056 (26.8)
1.451 (36.9) 1.300 (33.0) 1.233 (31.3)
1.557 (39.5) 1.425 (36.2) 1.296 (32.9)
1.653 (42.0) 1.550 (39.4) 1.358 (34.5)
1.775 (45.1) 1.675 (42.5) 1.420 (36.1)
CAGE Code 06324
Cable Entry
Closed
Open
.098 (2.5) .234 (5.9)
.153 (3.9) .234 (5.9)
.190 (4.8) .328 (8.3)
.260 (6.6) .457 (11.6)
.283 (7.2) .614 (15.6)
.325 (8.3) .634 (16.1)
.343 (8.7) .698 (17.7)
.381 (9.7) .823 (20.9)
.418 (10.6) .853 (21.7)
Printed in U.S.A.
© 20053 Glenair, Inc.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 62 - Page 8
