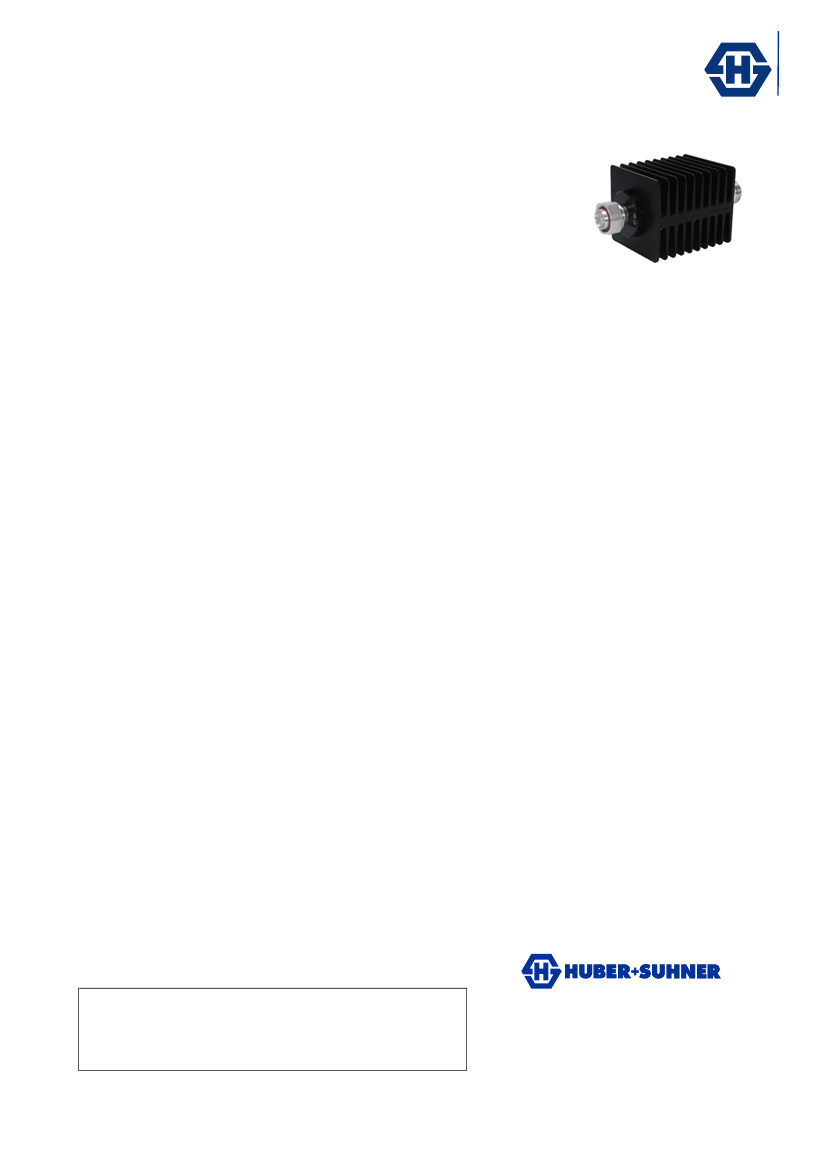

RF ATTENUATOR: Type 5903_716-50-1
Description
Standard Attenuator, High Power
Rev.: F
Product Configuration
Connectors (side 1 / side 2)
Interface standard
Technical Data
Electrical Data
7/16 plug (male) / 7/16 jack (female)
IEC 60169-4_CECC 22190_DIN 47223_VG 95250
Nominal impedance
Nominal attenuation
Frequency range
Frequency sub range (GHz)
Attenuation deviation (±dB)
VSWR max.
Power rating
Mechanical Data
Weight
50
Ω
3 dB
DC to 2.7 GHz
DC to 1.5
1.5 to 2.7
0.5
0.5
1.25
1.35
100 Watt average power up to 25 ˚C ambient temperature, linearly derated to 20 Watt at
125 ˚C ambient temperature.
Free airflow convection necessary to ensure power performances. Unit is unidirectional,
therefore don't swap input with output (note: input is usually on the male side, otherwise
follow instructions on the heatsink)
1000 Watt peak power, 5
µs
pulse, 0.05 % duty cycle
1.27 kg
-55 to 125
compliant
Material
Brass
Brass
Aluminium
PTFE
Brass
Surface Plating
Tri-metal Plating
Tri-metal Plating
Anodized
Surface Plating
Tri-metal Plating
Tri-metal Plating
Anodized
Tri-metal Plating
Environmental Data
Material Data
Operating temperature (˚C)
2002/95/EC (RoHS)
Piece Part
(side 1)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Piece Part
(side 2)
Centre contact
Outer contact
Body
Insulator
Outline drawing
Related Documents
Ordering Information
Single packaging
Material
Copper Beryllium Alloy
Brass
Aluminium
PTFE
DOU-00113257
5903_716-50-1/1--_NE
