74061-1004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 74061-1004

74061-1004: DescriptionLow Signal Relays - PCB ThruHole Hi-Sens SPDT 5DC 150mW Seal; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

74061-1004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74061-1004	-	-	View	Buy Now

74061-1004 Overview

Low Signal Relays - PCB ThruHole Hi-Sens SPDT 5DC 150mW Seal

74061-1004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Factory Lead Time	5 weeks
Is Samacsys	N
Other features	PANEL MOUNTABLE, POLARIZED, NO OF SHIELD CONTACTS: 10
body width	0.85 inch
subject depth	0.484 inch
body length	1.063 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	18 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3892 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	74061
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	15
Number of rows loaded	8
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.143 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	90
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

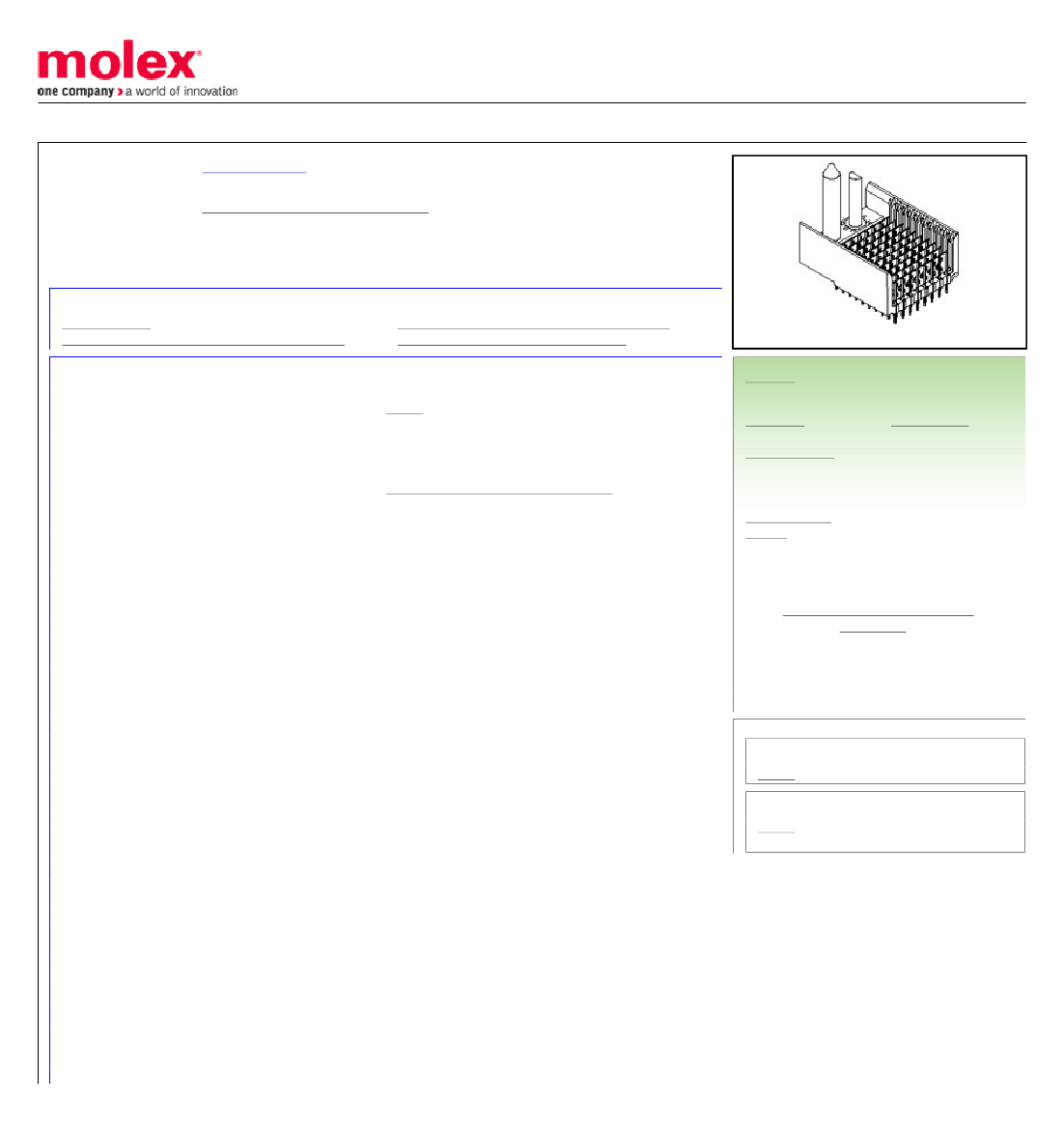

Preview

Download Datasheet

View All

This document was generated on 10/06/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0740611004

Active

VHDM Backplane Connector Systems

2.00mm Pitch VHDM Single-Ended Board-to-Board Backplane Header, Vertical, 8-

Row, Guide Pin Signal Module, Pin End Version, 80 Circuits, Pin Length 5.15mm.

Series:74075 Enables designers to create custom loaded connectors utilizing standard

pin lengths 4.25, 4.75, 5.15 and 6.25mm

Documents:

Drawing (PDF)

Product Specification PS-74031-999-001 (PDF)

General

Product Family

Series

Application

Application Tooling Documents

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Packaging Specification PK-74061-003 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Backplane Connectors

74061

Backplane

TM-622010999

No Keying Position

PCB Header

VHDM Backplane Connector Systems

VHDM

800753253599

Black

200

Yes

None

Beryllium Copper, High Performance Alloy (HPA),

Stainless Steel

Gold

Tin-Lead

High Temperature Thermoplastic

8.375/g

Open Pin Field

Vertical

2.50mm

None

1.80mm

Tube

2.00mm

1.00mm

0.762µm

Yes

105°C max

Through Hole - Compliant Pin

3.0A

Search Parts in this Series

74061 Series

Mates With

74040 VHDM Board-to-Board Daughtercard

Receptacle

Recommended Resources
