Power entry modules without line filter
www.schurter.com/pg05
IEC Appliance Inlet C14 with Circuit Breaker
7764
C14
70° C
- Panel Mount:
Snap-in version, from front side Appliance Inlet, Protection class I, Cir-
cuit breaker type TA35,
- Solder terminals or quick connect terminals
Description
Approvals
- VDE Certificate Number: 40017874
- UL File Number: E88880
- CSA File Number: 1249302
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Material: Housing
PH
A
30
41.6
65.4
R
3
Dimensions
SE
Line Switch
30 mm
3.2
"X"
10 A / 250 VAC; 50 Hz
10 A / 250 VAC; 60 Hz
> 4 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
Solder terminals or quick connect ter-
minals
Snap-in: 1.5/2.5 mm
PA6, black, UL 94V-0
Length of the terminal please find at the order code configuration table
Dimension "X" please ref. to table order code
Connectors
59
- 0
58.8
+0.2
-O
UT
Characteristics
References
Weblinks
- Line switch non-illuminated or illuminated
Thermal overload protection
We recommend for new applications the new type 6135
Appliance Inlet
Circuit Breakers
27.2
27.4
- 0
+0.2
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories, Detailed request for product
C14 acc. to IEC/EN 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 1
2-pole rocker switch, illuminated or non-
illuminated.
Rocker switch, non-illuminated black,
acc. to IEC 61058-1
Technical Details
7764
www.schurter.com/pg05
Config. Code
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
Power entry modules without line filter
The characters are placeholders for the correspondingly keys of selections from the key tables.
Type
protection class 1
Configuration
key
X
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
= Terminals
Terminal L
long solder terminal (L = 8.5 mm)
Blade terminal (6.3 x 0.8 mm)
Configuration
key
3
9
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
= Terminals
Terminal N
long solder terminal (L = 8.5 mm)
Blade terminal (6.3 x 0.8 mm)
Symbols similar as in table A
Configuration
key
3
9
E-
Configuration
key
3
9
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
= Terminals
Terminal Ground
long solder terminal (L = 8.5 mm)
Blade terminal (6.3 x 0.8 mm)
Symbols similar as in table A
AS
Configuration
key
9
Configuration
key
A
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
= Terminal Fuseholder
Terminal Fuseholder
Blade terminal (6.3 x 0.8 mm)
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
= Color
Color
Black
PH
Variants
Config. Code
Description
7764-X-9999-A-425DD
7764, IEC Power Entry Module C14, 70°C, version: 1, L: Blade terminal (6.3 x 0.8 mm), N: Blade terminal (6.3 x 0.8 mm), ground:
Blade terminal (6.3 x 0.8 mm), fuseholder: Blade terminal (6.3 x 0.8 mm), color: Black, design: snap-in (x=panel thickness),
dimension X: 25, features: thermal circuit breaker for rated current 10A, not usedbipolar switch, single pole fuse, 6,3mm blade
terminals, black rocker
7764, IEC Power Entry Module C14, 70°C, version: 1, L: Blade terminal (6.3 x 0.8 mm), N: Blade terminal (6.3 x 0.8 mm), ground:
Blade terminal (6.3 x 0.8 mm), fuseholder: Blade terminal (6.3 x 0.8 mm), color: Black, design: snap-in (x=panel thickness),
dimension X: 25, features: thermal circuit breaker for rated current 10A, not usedbipolar switch, double pole fuse, 6,3mm blade
terminals, rocker green illuminated
7764, IEC Power Entry Module C14, 70°C, version: 1, L: Blade terminal (6.3 x 0.8 mm), N: Blade terminal (6.3 x 0.8 mm), ground:
Blade terminal (6.3 x 0.8 mm), fuseholder: Blade terminal (6.3 x 0.8 mm), color: Black, design: snap-in (x=panel thickness),
dimension X: 25, features: thermal circuit breaker for rated current 15A, not usedbipolar switch, double pole fuse, 6,3mm blade
terminals, rocker green illuminated
7764-X-9999-A-425DI
7764-X-9999-A-425EI
The listet variants should be available from stock Other versions on request www.schurter.com/contact
Connectors
OU
T
Style
Configuration
key
4
snap-in (x=panel thickness)
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
= Type
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
= Style
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
= Dimension X
Dimension "X"
15
Configuration
key
25
The dimension "X" is dispalyed in (
1
/
10
mm). This information is also valid for the
order code
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
= Features
Features
Configuration
key
A
thermal circuit breaker for rated current 4A
thermal circuit breaker for rated current 6A
thermal circuit breaker for rated current 8A
thermal circuit breaker for rated current 10A
thermal circuit breaker for rated current 15A
B
C
D
E
7764
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
-
|
I
|
= Circuit breaker
Circuit breaker
Configuration
key
D
E
F
G
H
I
bipolar switch, single pole fuse, 6,3mm blade terminals, black rocker
bipolar switch, single pole fuse, 6,3mm blade terminal, rocker red illumi-
nated
bipolar switch, single pole fuse, 6,3mm blade terminals, rocker green
illuminated
bipolar switch, double pole fuse, 6,3mm blade terminals, black rocker
bipolar switch, double pole fuse, 6,3mm blade terminals, rocker red illu-
minated
bipolar switch, double pole fuse, 6,3mm blade terminals, rocker green
illuminated
Order Number
4304.6109
4304.6110
4304.6111
Power entry modules without line filter
www.schurter.com/pg05
Packaging unit
50 Pcs
7764

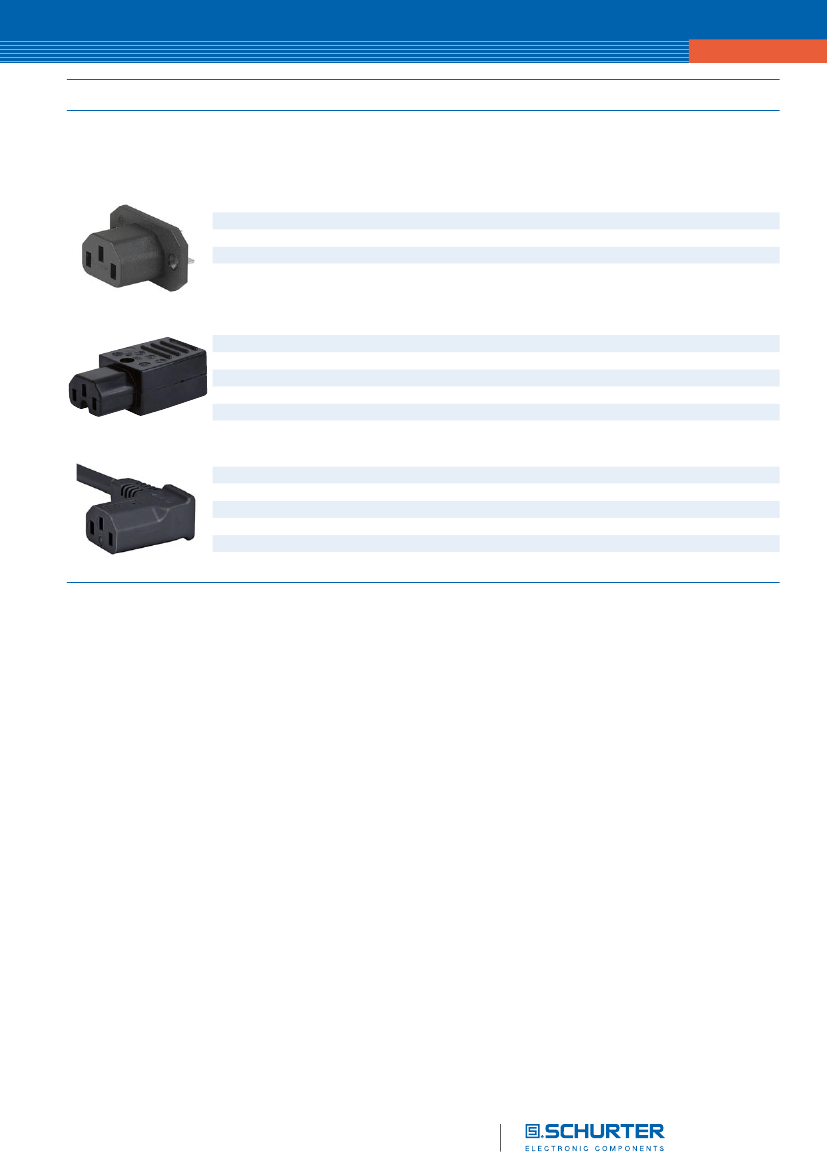

Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
Appliance Outlet further types to7764
Connector Overview complete
IEC Connector C15, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
Connector further types to7764
Power Cord Overview complete
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13
Power Cord further types to7764
E-
PH
AS
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
14.09.2012
OU
T
4787
4788
5091
5092
0101
0102
0112
4012
...
0102-G
0311
3011
3012
3013
3020
...
