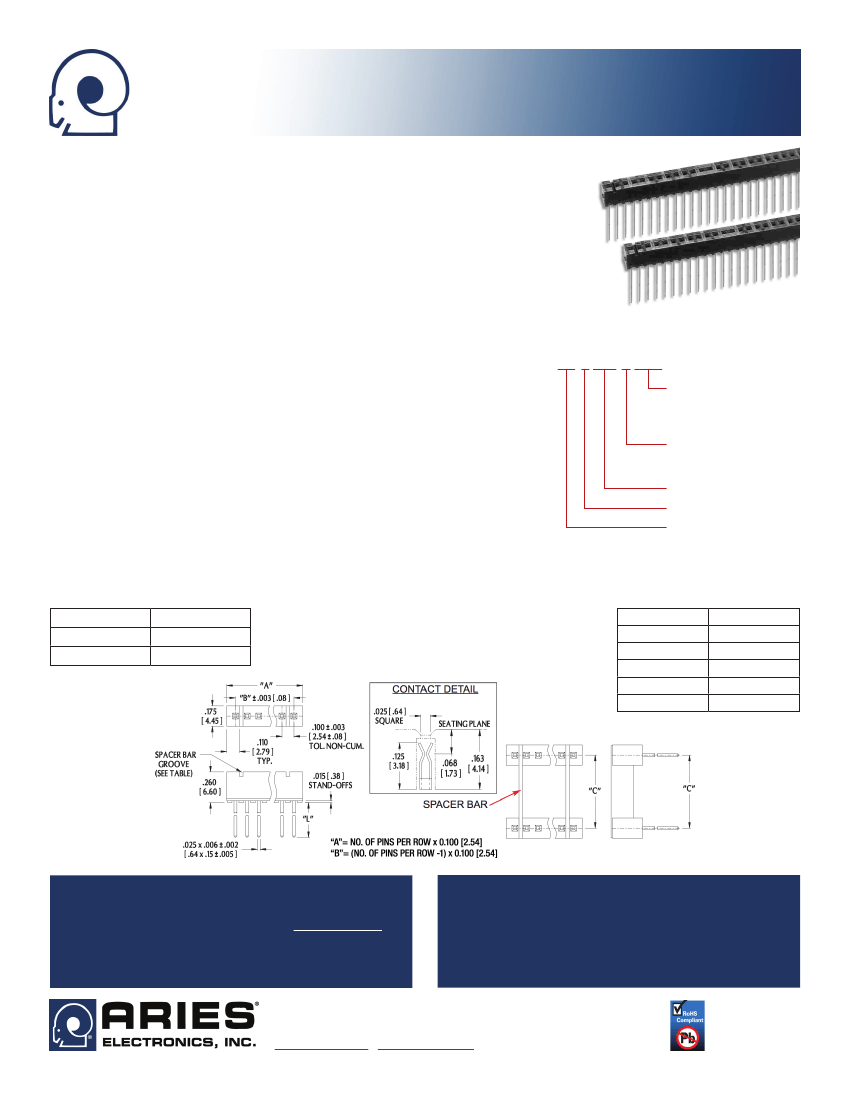

Series 501 Strip-Line Socket Strip
w/Bifurcated Contacts & Wire Wrap Pins
™
FEATURES
• Mount Liquid Crystal Displays or Other High Pin-count or Odd-centered Components
• Available in Several Sizes with Bifurcated Contacts in Wire Wrap or Solder Pin Tails Consult
Data Sheet 12008 for Solder Pin Tails
• Optional Spacer for Mounting on 0.300 [7.62], 0.600 [15.24], 0.900 [22.86], 1.100 [27.94],
and 1.300 [33.02] Centers Consult factory for other sizes.
GENERAL SPECIFICATIONS
• BODY: black UL 94V-0 glass-filled 4/6 Nylon
• PIN: Grade A Phosphor Bronze per QQ-B-750
• OPTIONAL SPACER: FR-4 0.032 [0.81] thick
• PIN PLATING: “11” 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] Dim.
ORDERING INFORMATION
"L"min. Ni per SAE AMS-QQ-N-290B; “10” 200µ [5.08µ] min. matte Sn per
XX-0 501-X XXX
ASTM B545-97(2004)e1 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B;
“10TL” 200µ [5.08µ] min. 90/10 Sn/Pb per MIL-T-10727 Type 1 over 50µ [1.27µ]
Plating
min. Ni per SAE AMS-QQ-N-290B
0 = Sn
• CURRENT RATING: 1 amp
0TL = Sn/Pb
1 = Au
• OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn & Sn/Pb plat-
ing; -67°F to 257°F [-55°C to 125°C] Au
Termination
2 = 2-level Wire Wrap
• INSERTION FORCE: 110g/pin average
2 = 3-level Wire Wrap
• WITHDRAWAL FORCE: 75g/pin average
Series
• ACCEPTS: flat leads up to 0.014 x 0.020 wide [0.36-0.51], Round Leads up to
0.020 [0.51] dia.
Single Row Socket
• SOCKET ACCEPTS: lead lengths from seating plane 0.080-0.160 [2.03-4.06]
No. of Pins
MOUNTING CONSIDERATIONS
• SUGGESTED PCB HOLE SIZE: 0.045 ±0.002 [0.1.14 ±0.05] dia.
Dim. “L”
2-level Wire Wrap
3-level Wire Wrap
0.420 [10.67]
0.690 [17.52]
(See Table)
No. of Pins
20
25
30
34
40
No. of Grooves
2
2
2
2
2
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR STRIP-LINE SOCKETS w/SOLDER PIN TAILS, SEE DATA SHEETS 12008
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12009
Rev. 5.1
1 of 1
