Binary Counter, LS Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, TTL, CQCC20

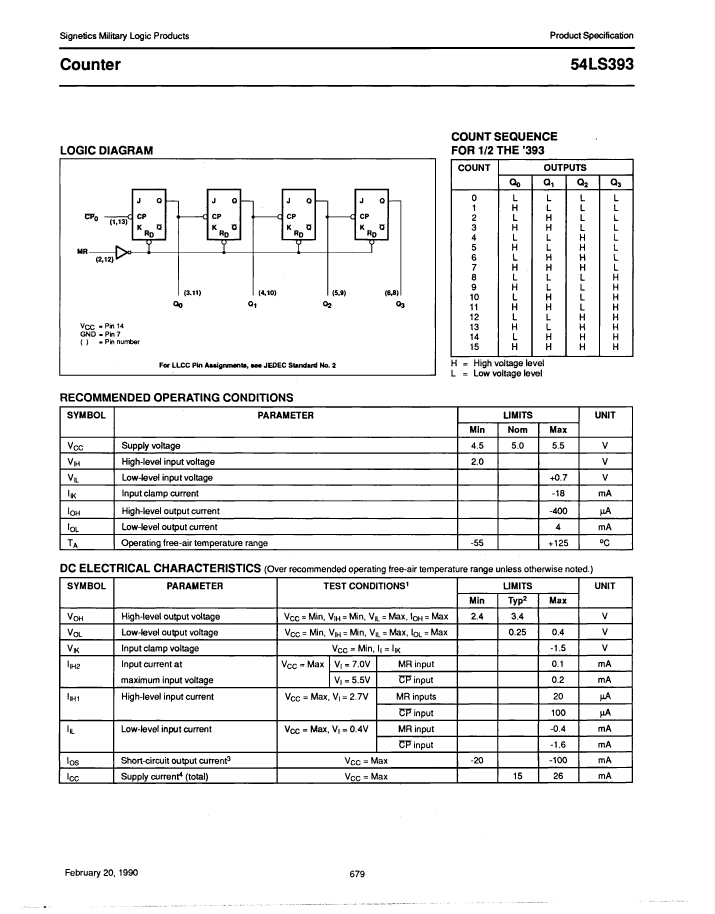

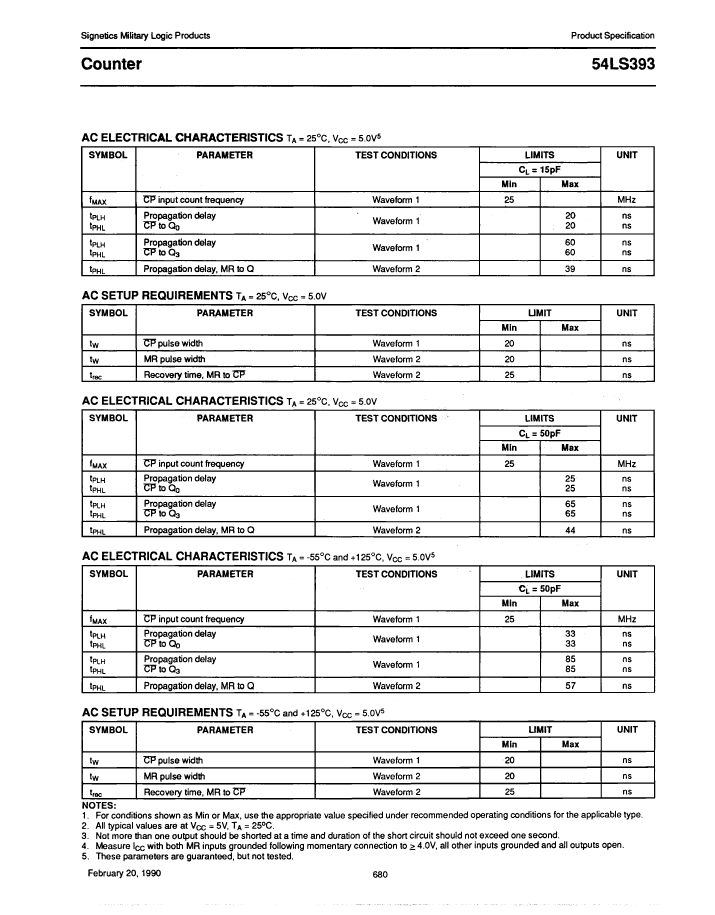

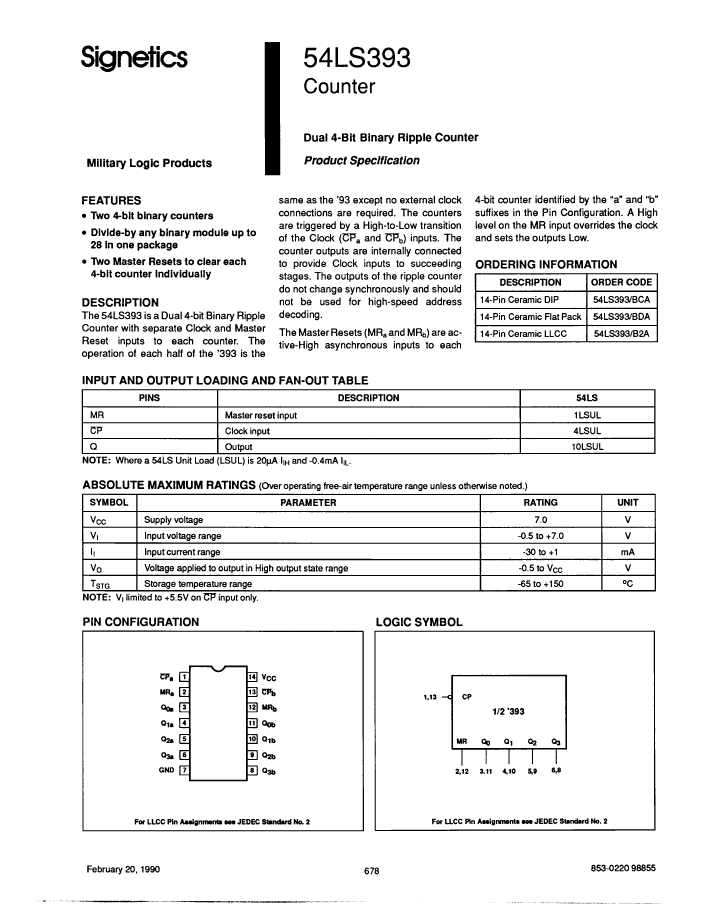

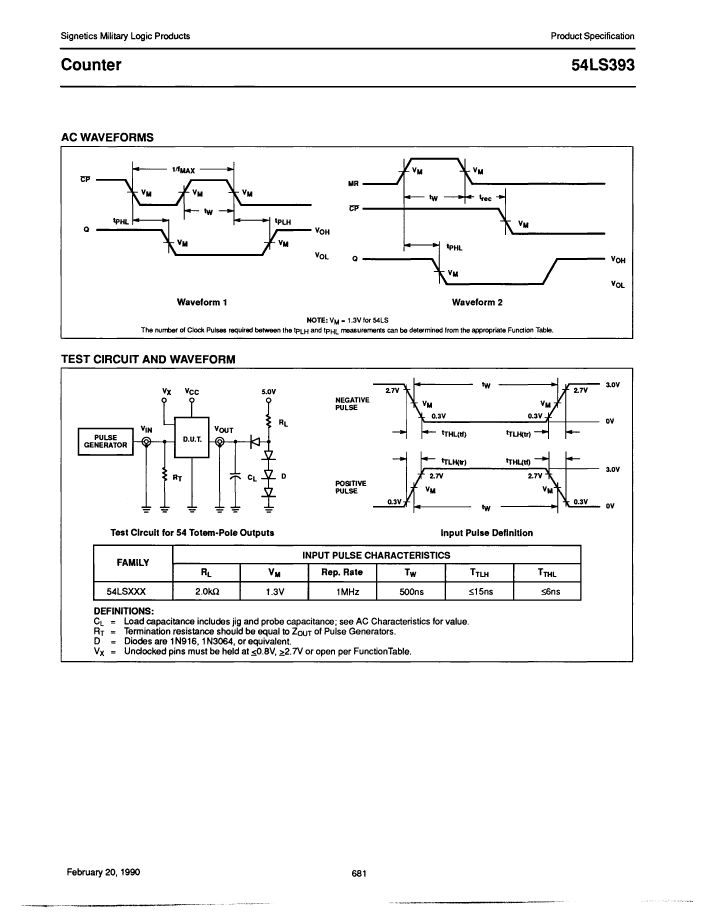

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | , |
| Reach Compliance Code | unknown |
| Base Number Matches | 1 |
| 54LS393/B2A | 54LS393/BDA | 54LS393/BCA | |
|---|---|---|---|
| Description | Binary Counter, LS Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, TTL, CQCC20 | Binary Counter, LS Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, TTL, CDFP14 | Binary Counter, LS Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, TTL, CDIP14, |
| Reach Compliance Code | unknown | unknown | unknown |
| Maker | YAGEO | - | YAGEO |
| Base Number Matches | 1 | 1 | - |
| Counting direction | - | UP | UP |
| series | - | LS | LS |
| JESD-30 code | - | R-CDFP-F14 | R-CDIP-T14 |
| Load capacitance (CL) | - | 50 pF | 50 pF |
| Load/preset input | - | YES | YES |
| Logic integrated circuit type | - | BINARY COUNTER | BINARY COUNTER |
| Operating mode | - | ASYNCHRONOUS | ASYNCHRONOUS |
| Number of digits | - | 4 | 4 |
| Number of functions | - | 2 | 2 |
| Number of terminals | - | 14 | 14 |
| Maximum operating temperature | - | 125 °C | 125 °C |
| Minimum operating temperature | - | -55 °C | -55 °C |
| Package body material | - | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | - | RECTANGULAR | RECTANGULAR |
| Package form | - | FLATPACK | IN-LINE |
| Maximum supply current (ICC) | - | 26 mA | 26 mA |
| propagation delay (tpd) | - | 85 ns | 85 ns |
| Certification status | - | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | - | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | - | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | - | 5 V | 5 V |
| surface mount | - | YES | NO |
| technology | - | TTL | TTL |
| Temperature level | - | MILITARY | MILITARY |
| Terminal form | - | FLAT | THROUGH-HOLE |
| Terminal location | - | DUAL | DUAL |
| Trigger type | - | NEGATIVE EDGE | NEGATIVE EDGE |
| minfmax | - | 25 MHz | 25 MHz |
