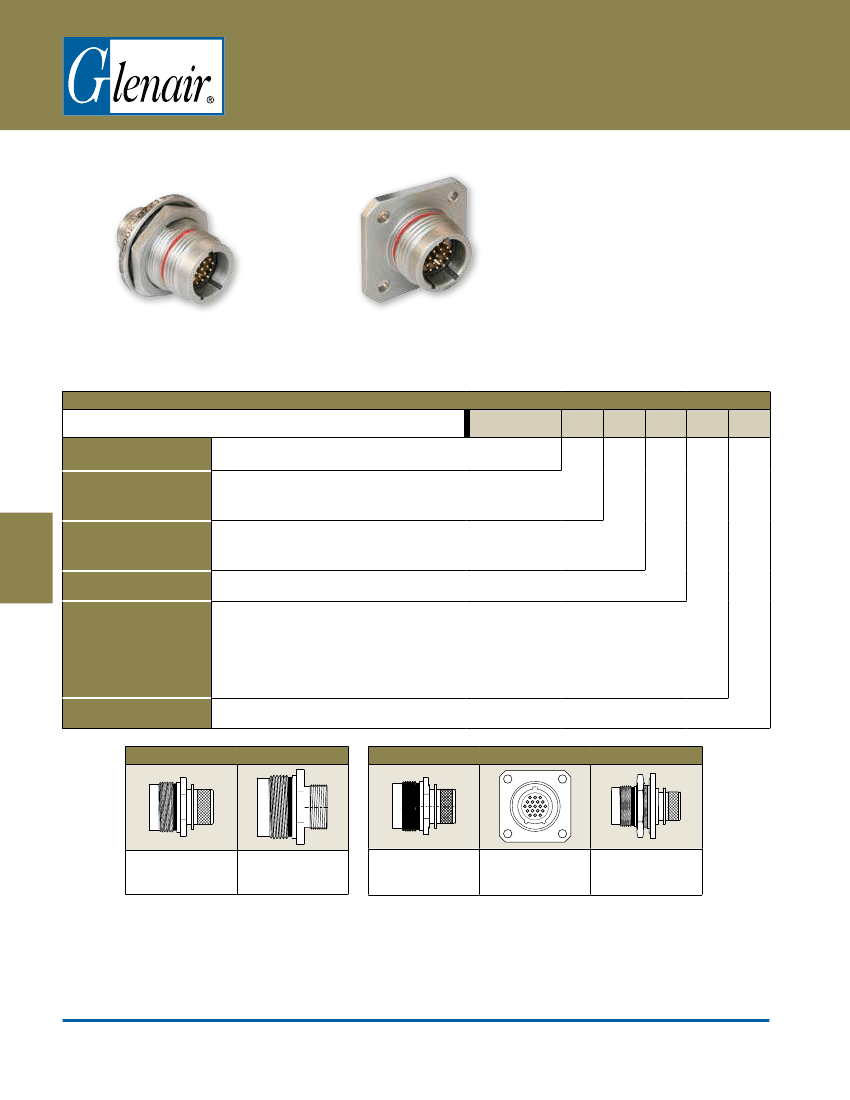

Series 802 AquaMouse™ Submersible Receptacle
802-010 and 802-011 Ordering Information
E
Series 802
Three Shell Mounting Options:
Jam
nut with o-ring for rear panel mounting,
square flange for front panel mounting,
or in-line receptacles for free-hanging
cables.
Two Shell Styles:
Choose the integral
band platform for direct attachment
of a cable shield. Install a boot, or
overmold a boot over the band platform.
An accessory thread is available for
attaching strain reliefs and backshells.
Jam Nut, Rear Mount
Square Flange
How To Order
Sample Part Number
Series (See Table I)
Shell Style (See Table II)
802-010
= Receptacle with Banding Platform
802-011
= Receptacle with Accessory Thread
-01
= In-Line
-02
= Square Flange for Front Panel Mounting
-07
= Jam Nut for Rear Panel Mounting
Z1
= Stainless Steel/Passivated RoHS Compliant
ZM
= Stainless Steel/Electroless Nickel Plated
AB
= Marine Bronze/Unplated
See Contact Arrangements Page E-2
Connector supplied with contacts
Contact Type
Connector supplied without contacts
P
= Pin
A
= Pin Connector, less contacts
S
= Socket
B
= Socket Connector, less contacts
Connectors with contacts are supplied with signal and/or power crimp contacts. These contacts are not
installed.
Coaxial contacts and non-standard signal contacts are ordered separately.
Shell Key Positions
(See Table III)
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F See Keyway Positions Page E3
802-011
-02
Z1
10-26
P
B
Shell Material and Finish
Shell Size - Insert
Arrangement
Table I: Series
Table II: Shell Style
802-010
Receptacle with
Banding Platform
802-011
Receptacle with
Accessory Thread
-01
In-Line
-02
Square Flange
-07
Jam Nut for Rear
Panel Mounting
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-8
