4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY TYCO ELECTRONICS CORPORATION.
ALL RIGHTS RESERVED.
3
2003
LOC
2
DIST
1
C
COPYRIGHT 2003
AP
CAD
Pro-E
-
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
P1
P2
P3
REV PER ECO-09-026444
REV. BY ECO-10-006997
REVISED BY ECO 16-005803
27NOV09
09APR10
28JUN2016
KK
HC
HC
AEG
WLS
WLS
D
DO NOT REVISE
EXCEPT BY CAD
D
0,76
7,1
6,0
4,2
C
7,6
1,9
C
6,0
2,8
5,5
MAX. 4,3
NATURAL
2,5
# 0,2
AMARELO/YELLOW
NATURAL
1
PA6.6V0 OR PA6.6V0+PA6V0
PA 6.6
PA 6.6
PA 6.6
PA 6.6
PA 6.6
2-880488-2
1-880488-5
2-880488-1
1-880488-4
1-880488-3
1-880488-2
1-880488-1
880488-4
880488-3
880488-2
880488-1
B
19,9
OBSOLETE
3,7
MAX.
VERMELHO/RED
PRETO/BLACK
AZUL/BLUE
B
NATURAL/NATURAL
1 -MATÉRIA-PRIMA CONFORME ESPECIFICAÇÃO IEC 60335-1, GWT 750 $ C, SEM CHAMA.
RAW MATERIAL ACC. TO SPEC. IEC 60335-1, GWT 750
OBSOLETE
VERMELHO/RED
AZUL/BLUE
POLIPROPILENO/POLYPROPYLENE
POLIPROPILENO/POLYPROPYLENE
POLIPROPILENO/POLYPROPYLENE
POLIPROPILENO/POLYPROPYLENE
NATURAL/NATURAL
PRETO/BLACK
THIS DRAWING IS A CONTROLLED DOCUMENT FOR TYCO ELECTRONICS CORPORATION
IT IS SUBJECT TO CHANGE AND THE CONTROLLING ENGINEERING ORGANIZATION
SHOULD BE CONTACTED FOR THE LATEST REVISION.
FINISH
DWN
CHK
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
MATERIAL
0
1
2
3
4
ANGLES
PLC
PLC
PLC
PLC
PLC
-
0,5
-
-
-
05SEP2003
P.L.FARIA
APVD
05SEP2003
D.A.OLIVEIRA
PRODUCT SPEC
APPLICATION SPEC
M.R.BRIZ
05SEP2003
NAME
MATERIAL
PART NUMBER
TYCO ELECTRONICS do Brasil LTDA.
São Paulo , Brasil
N/A
SEE TABLE
FINISH
SEE TABLE
-
WEIGHT
N/A
-
CUSTOMER DRAWING
AMP 1470-19 REV 31MAR2000
A3
00779
SIZE

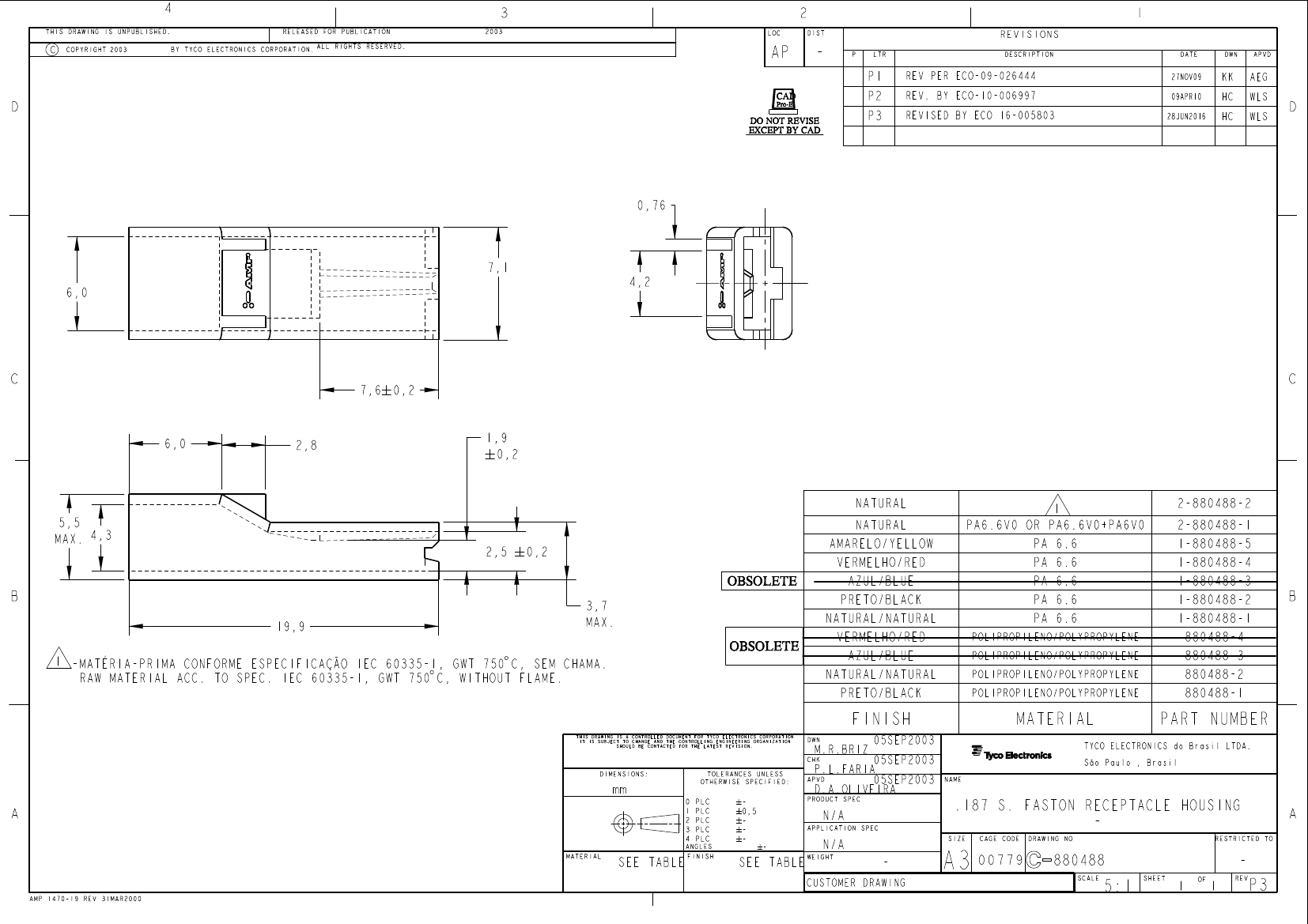

.187 S. FASTON RECEPTACLE HOUSING
-
CAGE CODE
DRAWING NO
A
RESTRICTED TO
880488
SCALE
5:1
SHEET
1
OF
1
REV
-
P3
