TT54F04/BCAJC datasheet, PDF - EEWORLD Datasheet

TT54F04/BCAJC: DescriptionInverter, TTL, CDIP14; Categorylogic logic; File Size98KB，2 Pages; ManufacturerTwilight Technology Inc.

Download Datasheet Parametric View All

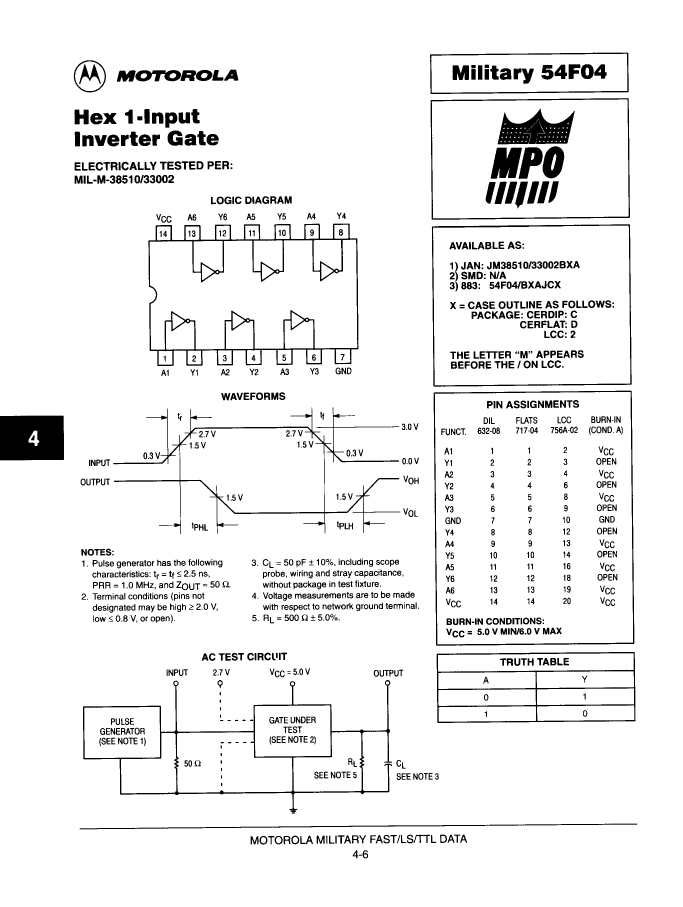

TT54F04/BCAJC Overview

Inverter, TTL, CDIP14

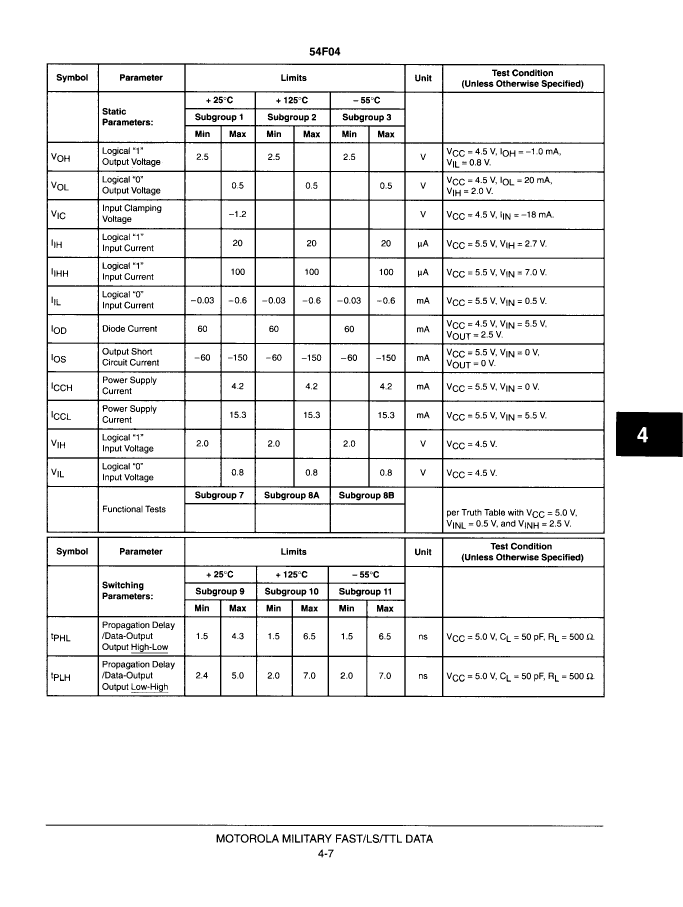

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Twilight Technology Inc.
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.02 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	15.3 mA
Prop。Delay @ Nom-Sup	7 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
