Compactness and High Reliability
Realized with Unique Polarized
Actuator Construction
Non-latching Type Also Available
WA OPTICAL
SWITCHES (AWAP)
products. We ensure high reliability by
harnessing our powerful production
technology that has been cultivated over
many years.
FEATURES
1. Small size, Low height
L: 31 mm
×
W: 16 mm
×
H: 9 mm
L: 1.220
inch
×
W: .630 inch
×
H: .354 inch
2. Low Insertion Loss
Achieved 1dB max. insertion loss
(Typ. 0.5dB)
3. Non-latching and latching types
available.
4. Conforms to Telcordia GR-1221-core
Everything is produced under one roof
from internal mechanical relays to optical
APPLICATIONS
• Optical ADM equipment
• Protection switching (WDM, CATV,
FTTH)
• Optical measuring instrument
RoHS compliant
ORDERING INFORMATION
AWAP
WA Optical Switch
Switch type
0: 1
×
2
1: 2
×
2
Fiber type and wavelength
Fiber type
Wavelength
1310
nm
0
850
nm
3
6
1550
nm
1
1310
nm
4
7
1310/1550
nm
2
850/1310
nm
5
8
Single mode (9/125/900)
Wavelength
Fiber type
Multi mode (50/125/900)
Multi mode (62.5/125/900)
Operation type
0: Non-latching type
1: 1-coil latching type
2: 2-coil latching type
Connector type (For other connector types, please contact us.)
Connector type
SC/AdPC
2
MU/AdPC
3
Nominal operating voltage
1: 3 VDC
6: 4.5 VDC
9: 5 VDC
Note: MU connector is Single mode only.
TYPES
1. 1
×
2 type (single mode)
Wavelength
Nominal operating
voltage
3V
4.5V
5V
3V
4.5V
5V
3V
4.5V
5V
Non-latching type
SC/AdPC
MU/AdPC
connector
connector
AWAP00021
AWAP00031
AWAP00026
AWAP00036
AWAP00029
AWAP00039
AWAP01021
AWAP01031
AWAP01026
AWAP01029
AWAP02021
AWAP02026
AWAP02029
AWAP01036
AWAP01039
AWAP02031
AWAP02036
AWAP02039
1-coil latching type
SC/AdPC
MU/AdPC
connector
connector
AWAP00121
AWAP00131
AWAP00126
AWAP00136
AWAP00129
AWAP00139
AWAP01121
AWAP01131
AWAP01126
AWAP01129
AWAP02121
AWAP02126
AWAP02129
AWAP01136
AWAP01139
AWAP02131
AWAP02136
AWAP02139
2-coil latching type
SC/AdPC
MU/AdPC
connector
connector
AWAP00221
AWAP00231
AWAP00226
AWAP00236
AWAP00229
AWAP00239
AWAP01221
AWAP01231
AWAP01226
AWAP01229
AWAP02221
AWAP02226
AWAP02229
AWAP01236
AWAP01239
AWAP02231
AWAP02236
AWAP02239
1310±20nm
1550±20nm
1310/1550nm
Standard packing; Inner carton: 1 pcs., Outer case: 1 pcs.
2013.09
industrial.panasonic.com/ac/e/
–1–
©
Panasonic Corporation 2013
ASCTB93E 201309-T
WA (AWAP)
2. 1
×
2 type (multi mode)
Fiber type
Wavelength
Nominal operating
voltage
3V
4.5V
5V
3V
4.5V
5V
3V
4.5V
5V
3V
4.5V
5V
3V
4.5V
5V
3V
4.5V
5V
Standard packing; Inner carton: 1 pcs., Outer case: 1 pcs.
Non-latching type
SC/AdPC
connector
AWAP03021
AWAP03026
AWAP03029
AWAP04021
AWAP04026
AWAP04029
AWAP05021
AWAP05026
AWAP05029
AWAP06021
AWAP06026
AWAP06029
AWAP07021
AWAP07026
AWAP07029
AWAP08021
AWAP08026
AWAP08029
MU/AdPC
connector
AWAP03031
AWAP03036
AWAP03039
AWAP04031
AWAP04036
AWAP04039
AWAP05031
AWAP05036
AWAP05039
AWAP06031
AWAP06036
AWAP06039
AWAP07031
AWAP07036
AWAP07039
AWAP08031
AWAP08036
AWAP08039
Partly
to Be
Discontinued:
Multi mode MU connector type
Last time
buy: September 30, 2014
1-coil latching type
SC/AdPC
connector
AWAP03121
AWAP03126
AWAP03129
AWAP04121
AWAP04126
AWAP04129
AWAP05121
AWAP05126
AWAP05129
AWAP06121
AWAP06126
AWAP06129
AWAP07121
AWAP07126
AWAP07129
AWAP08121
AWAP08126
AWAP08129
MU/AdPC
connector
AWAP03131
AWAP03136
AWAP03139
AWAP04131
AWAP04136
AWAP04139
AWAP05131
AWAP05136
AWAP05139
AWAP06131
AWAP06136
AWAP06139
AWAP07131
AWAP07136
AWAP07139
AWAP08131
AWAP08136
AWAP08139
2-coil latching type
SC/AdPC
connector
AWAP03221
AWAP03226
AWAP03229
AWAP04221
AWAP04226
AWAP04229
AWAP05221
AWAP05226
AWAP05229
AWAP06221
AWAP06226
AWAP06229
AWAP07221
AWAP07226
AWAP07229
AWAP08221
AWAP08226
AWAP08229
MU/AdPC
connector
AWAP03231
AWAP03236
AWAP03239
AWAP04231
AWAP04236
AWAP04239
AWAP05231
AWAP05236
AWAP05239
AWAP06231
AWAP06236
AWAP06239
AWAP07231
AWAP07236
AWAP07239
AWAP08231
AWAP08236
AWAP08239
850±20nm
Multi mode
(50/125/900)
1310±20nm
850/1310nm
850±20nm
Multi mode
(62.5/125/900)
1310±20nm
850/1310nm
3. 2
×
2 type (single mode)
Wavelength
Nominal operating
voltage
3V
1310±20nm
4.5V
5V
3V
4.5V
5V
3V
4.5V
5V
Non-latching type
SC/AdPC
connector
AWAP10021
AWAP10026
AWAP10029
AWAP11021
AWAP11026
AWAP11029
AWAP12021
AWAP12026
AWAP12029
MU/AdPC
connector
AWAP10031
AWAP10036
AWAP10039
AWAP11031
AWAP11036
AWAP11039
AWAP12031
AWAP12036
AWAP12039
1-coil latching type
SC/AdPC
connector
AWAP10121
AWAP10126
AWAP10129
AWAP11121
AWAP11126
AWAP11129
AWAP12121
AWAP12126
AWAP12129
MU/AdPC
connector
AWAP10131
AWAP10136
AWAP10139
AWAP11131
AWAP11136
AWAP11139
AWAP12131
AWAP12136
AWAP12139
2-coil latching type
SC/AdPC
connector
AWAP10221
AWAP10226
AWAP10229
AWAP11221
AWAP11226
AWAP11229
AWAP12221
AWAP12226
AWAP12229
MU/AdPC
connector
AWAP10231
AWAP10236
AWAP10239
AWAP11231
AWAP11236
AWAP11239
AWAP12231
AWAP12236
AWAP12239
1550±20nm
1310/1550nm
Standard packing; Inner carton: 1 pcs., Outer case: 1 pcs.
4. 2
×
2 type (multi mode)
Fiber type
Wavelength
Nominal operating
voltage
3V
4.5V
5V
3V
4.5V
5V
3V
4.5V
5V
3V
4.5V
5V
3V
4.5V
5V
3V
4.5V
5V
Non-latching type
SC/AdPC
MU/AdPC
connector
connector
AWAP13021
AWAP13031
AWAP13026
AWAP13036
AWAP13029
AWAP13039
AWAP14021
AWAP14031
AWAP14026
AWAP14036
AWAP14029
AWAP14039
AWAP15021
AWAP15031
AWAP15026
AWAP15036
AWAP15029
AWAP15039
AWAP16021
AWAP16031
AWAP16026
AWAP16036
AWAP16029
AWAP16039
AWAP17021
AWAP17031
AWAP17026
AWAP17036
AWAP17029
AWAP17039
AWAP18021
AWAP18031
AWAP18026
AWAP18036
AWAP18029
AWAP18039
1-coil latching type
SC/AdPC
MU/AdPC
connector
connector
AWAP13121
AWAP13131
AWAP13126
AWAP13136
AWAP13129
AWAP13139
AWAP14121
AWAP14131
AWAP14126
AWAP14136
AWAP14129
AWAP14139
AWAP15121
AWAP15131
AWAP15126
AWAP15136
AWAP15129
AWAP15139
AWAP16121
AWAP16131
AWAP16126
AWAP16136
AWAP16129
AWAP16139
AWAP17121
AWAP17131
AWAP17126
AWAP17136
AWAP17129
AWAP17139
AWAP18121
AWAP18131
AWAP18126
AWAP18136
AWAP18129
AWAP18139
2-coil latching type
SC/AdPC
MU/AdPC
connector
connector
AWAP13221
AWAP13231
AWAP13226
AWAP13236
AWAP13229
AWAP13239
AWAP14221
AWAP14231
AWAP14226
AWAP14236
AWAP14229
AWAP14239
AWAP15221
AWAP15231
AWAP15226
AWAP15236
AWAP15229
AWAP15239
AWAP16221
AWAP16231
AWAP16226
AWAP16236
AWAP16229
AWAP16239
AWAP17221
AWAP17231
AWAP17226
AWAP17236
AWAP17229
AWAP17239
AWAP18221
AWAP18231
AWAP18226
AWAP18236
AWAP18229
AWAP18239
850±20nm
Multi mode
(50/125/900)
1310±20nm
850/1310nm
850±20nm
Multi mode
(62.5/125/900)
1310±20nm
850/1310nm
Standard packing; Inner carton: 1 pcs., Outer case: 1 pcs.
Note: For other connector types, please contact us.
Panasonic Corporation Automation Controls Buisiness Division
industrial.panasonic.com/ac/e/
–2–
©
Panasonic Corporation 2013
ASCTB93E 201309-T
Partly
to Be
Discontinued:
Multi mode MU connector type
Last time
buy: September 30, 2014
WA (AWAP)
RATING
1. Coil data (at 20°C
68°F)
Drive type
Non-latching type
Nominal operating
voltage
3 V DC
4.5 V DC
5 V DC
3 V DC
4.5 V DC
5 V DC
3 V DC
4.5 V DC
5 V DC
Nominal operating current
(±10%)
83.3 mA
55.5 mA
50.0 mA
50.0 mA
33.3 mA
30.0 mA
66.7 mA
44.4 mA
40.0 mA
Coil resistance
(±10%)
36Ω
81Ω
100Ω
60Ω
135Ω
166.7Ω
45Ω
101.3Ω
125Ω
Nominal operating power
250 mW
Max. applied voltage
1-coil latching type
150 mW
130% V DC of the nominal
operating voltage
2-coil latching type
200 mW
2. Specifications
Item
Insertion loss*
Isolation
Return loss*
1
1
Specification
Single mode
Max. 1.0 dB
Min. 60 dB
Min. 50 dB
Multi mode
Max. 1.0 dB
Min. 50 dB
Min. 20 dB
Optical
characteristics
Expected life
Mechanical
characteristics
P.D.L.*
1
Optical input power
Mechanical life
Vibration resistance
Shock resistance
(Half-wave pulse of
sine wave: 11 ms)
Functional
Destructive
Functional
Destructive
Max. 0.1 dB
—
Max. 100 mW (20 dBm)
Max. 100 mW (20 dBm)
Min. 10
7
(at 20°C
68°F,
at 180 cpm)
10 to 55 Hz at double amplitude of 0.75 mm (Optical power fluctuation Max. 1 dB)
10 to 55 Hz at double amplitude of 1.52 mm
Non-latching type: Min. 100 m/s
2
(Optical power fluctuation 1 dB or less)
Latching type: Min. 200 m/s
2
(Optical power fluctuation 1 dB or less)
Min. 500 m/s
2
Non-latching type: Max. 15 ms (Nominal applied operating voltage)
Latching type: Max. 10 ms (Nominal applied operating voltage)
450 g, Tension rate: 0.4 mm/sec, 1 min.
230 g, 5 sec., Tension direction 90° (perpendicular with fiber
Ambient temperature –40 to +70°C
–40 to +158°F,
Humidity 5 to 85% R.H. (Not freezing and condensing at low temperature)
Approx. 11 g
.388 oz
(Not including connector)
Electrical
Switching time (at 20°C
68°F)*
2
characteristics
Fiber tensile strength
Fiber fl xural tensile strength
Conditions for operation,
Conditions
transport and storage
Unit weight
Notes: 1. Without connectors’ loss. Insertion loss is approx. 0.2 dB per connector. Return loss at connector parts is approx. 50 dB.
2. Oscilloscope waveform of switching characteristic.
Drive portion
input signal
Switching time
at Light off
Output light
power
Switching time
90%
100%
90% 100%
at Light on
Output light
power
Time
Panasonic Corporation Automation Controls Buisiness Division
industrial.panasonic.com/ac/e/
–3–
©
Panasonic Corporation 2013
ASCTB93E 201309-T
WA (AWAP)

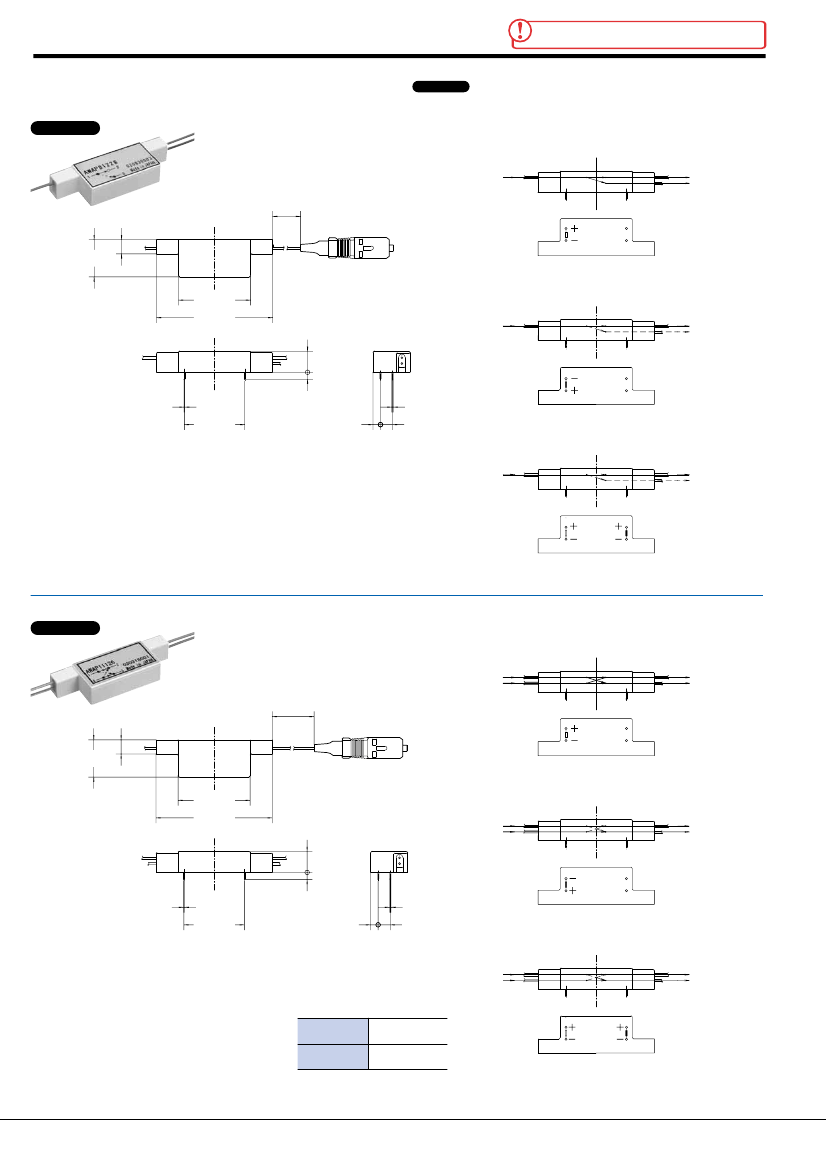

DIMENSIONS
(mm
inch)
1. 1
×
2 type
CAD Data
The CAD data of the products with a
CAD Data
Partly
to Be
Discontinued:
Multi mode MU connector type
Last time
buy: September 30, 2014
mark can be downloaded from: http://industrial.panasonic.com/ac/e
External dimensions
Optical signal I/O and coil impress direction
indication diagram
1
×
2, Non-latching type
Input
Port 1
Output
Port 3 (Energize)
Port 2 (Deenergize)
6.10±0.3
.240±.012
1m
+0.1m
0
3.281ft
+.328ft
0
1
2
3
4
16.00±0.3
.630±.012
Deenergized condition (Bottom view)
31.00±0.3
1.220±.012
50.00±0.3
1.969±.012
1
×
2, 1-coil latching type
Input
9.00±0.3
.354±.012
Port 1
Output
Port 2 (Reset)
Port 3 (Set)
1
3
4
0.30±0.1
.012±.004
3.00±0.3
.118±.012
26.00±0.3
1.024±.012
3.25±0.3
.128±.012
0.60±0.1
.024±.004
5.20±0.3
.205±.012
2
Reset condition (Bottom view)
1
×
2, 2-coil latching type
Input
Port 1
Output
Port 2 (Reset)
Port 3 (Set)
1
2
3
4
Reset condition (Bottom view)
2. 2
×
2 type
CAD Data
External dimensions
Optical signal I/O and coil impress direction
indication diagram
2
×
2, Non-latching type
Input
Port 1
Port 4
Output
Port 3 (Energize)
Port 2 (Deenergize)
6.10±0.3
.240±.012
16.00±0.3
.630±.012
1m
+0.1m
0
3.281ft
+.328ft
0
1
2
3
4
Deenergized condition (Bottom view)
31.00±0.3
1.220±.012
50.00±0.3
1.969±.012
2
×
2, 1-coil latching type
Input
9.00±0.3
.354±.012
Port 1
Port 4
Output
Port 2 (Reset)
Port 3 (Set)
1
3
4
0.30±0.1
.012±.004
3.00±0.3
.118±.012
26.00±0.3
1.024±.012
3.25±0.3
.128±.012
0.60±0.1
.024±.004
5.20±0.3
.205±.012
2
Reset condition (Bottom view)
2
×
2, 2-coil latching type
Input
Port 1
Port 4
Output
Port 2 (Reset)
Port 3 (Set)
Reset
(Deenergize)
Set
(Energize)
Port 1
→
Port 2
Port 4
→
Port 3
Port 1
→
Port 3
Port 4
→
Port 2
1
2
3
4
Reset condition (Bottom view)
Panasonic Corporation Automation Controls Buisiness Division
industrial.panasonic.com/ac/e/
–4–
©
Panasonic Corporation 2013
ASCTB93E 201309-T
Partly
to Be
Discontinued:
Multi mode MU connector type
Last time
buy: September 30, 2014
WA (AWAP)
Nominal operating voltage applied method
Terminal
No.
Set
Energize
1
2
3
4
1
2
3
4
Non-latching
type
+V
GND
–
–
–
–
–
–
1- coil latching
type
+V
GND
–
–
GND
+V
–
–
2- coil latching
type
+V
GND
–
–
–
–
+V
GND
PC board pattern
26.00
1.024
(Tolerance:
±0.1
±.004)
5.20
.205
1.05 dia.
.041 dia.
Reset
Deenergize
NOTES
1. Operation, transport and storage
conditions
1) Temperature:
–40 to +70°C
–40 to +158°F
2) Humidity: 5 to 85% RH
(Avoid freezing and condensation.)
The humidity range varies with the
temperature. Use within the range
indicated in the graph below.
3) Atmospheric pressure: 86 to 106 kPa
Temperature and humidity range for
usage, transport, and storage
Humidity, %R.H.
85
Tolerance range
(Avoid freezing
when used at
temperatures
lower than
0°C
32°F)
5
–40
–40
(Avoid
condensation
when used at
temperatures
higher than
0°C
32°F)
70
+158
0
+32
Temperature,
°C
°F
2. Solder and cleaning conditions
1) Adhere to the conditions below when
soldering this switch.
Solder iron tip temperature:
400°C
752°F
min.
Soldering iron: 60 to 100 W
Soldering time: within 5 seconds
The effect on the switch will differ
depending on the type of PC board used.
For this reason, please verify using the
actual PC board to be worked on.
2) This switch cannot be washed.
3. Precautions for use
1) Since this switch is polarized,
reversing the coil + and – terminals will
cause reverse operation. Be sure to
connect following the attached product
specification dia ram.
2) Keep the ripple rate of the nominal coil
voltage below 5%.
3) Avoid exceeding the specification
ranges such as those for coil nominal
voltage, contact rating and optical input
power. Exceeding specifications can
cause abnormal heating or deterioration
of performance.
4) For fibe , avoid bending to a radius
smaller than 30 mm
1.181 inch
as doing
so can cause breakage.
5) If a switch has been subjected to a
strong shock such as dropping, do not
use it.
6) (Only latching type) Considering the
possible change in ambient temperature
and other conditions, it is recommended
that the coil impress set and reset pulse
width be at the nominal operation voltage
and at least 20 ms to make certain of
operation.
7) (Only latching type) This switch is
shipped from the factory in the reset
state. A shock to the switch during
shipping or installation may cause it to
change to the set state. Therefore, it is
recommended that the switch be used in
a circuit which initializes it to the required
state (set or reset) whenever the power is
turned on.
For Cautions for Use, see Relay
Technical Information.
Panasonic Corporation Automation Controls Buisiness Division
industrial.panasonic.com/ac/e/
–5–
©
Panasonic Corporation 2013
ASCTB93E 201309-T
京公网安备 11010802033920号
EEWORLD
