ZF1-14-03-TM-WT-DEAN datasheet, PDF

ZF1-14-03-TM-WT-DEAN: DescriptionCard Edge Connector, 14 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size620KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

ZF1-14-03-TM-WT-DEAN Overview

Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	unknown
Other features	TOP ENTRY
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	14

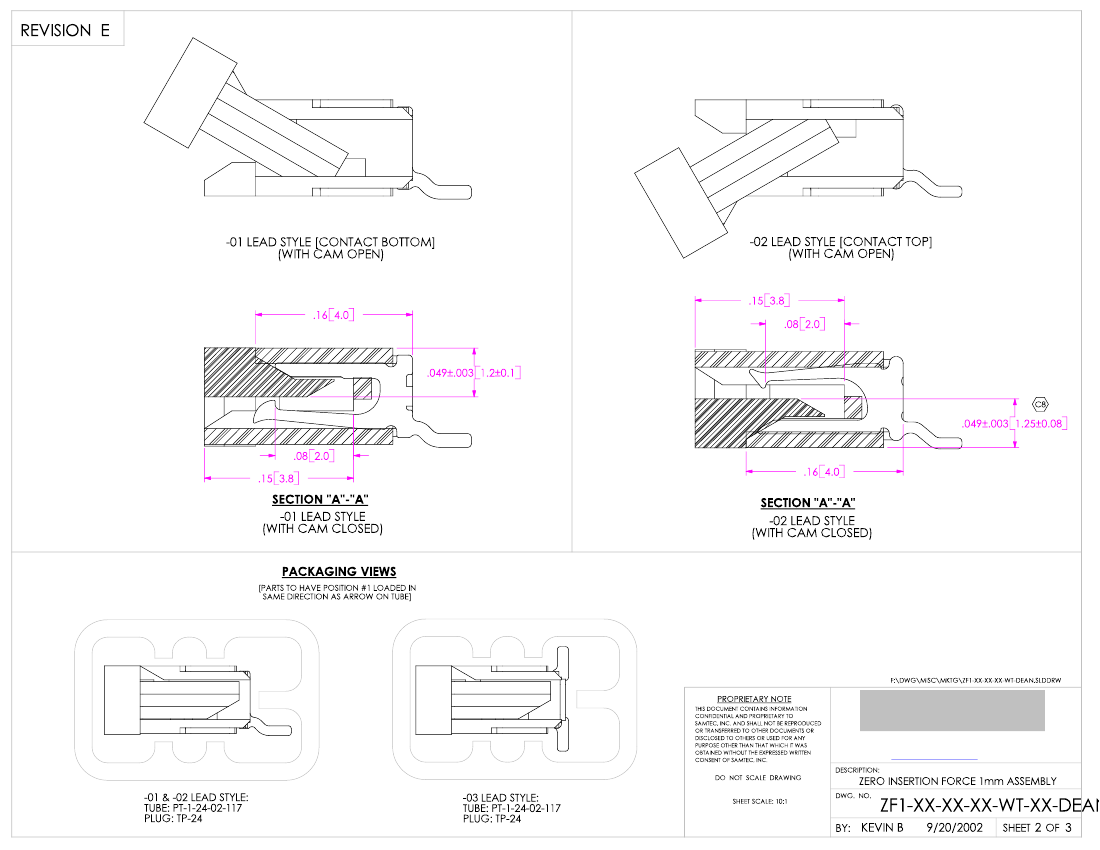

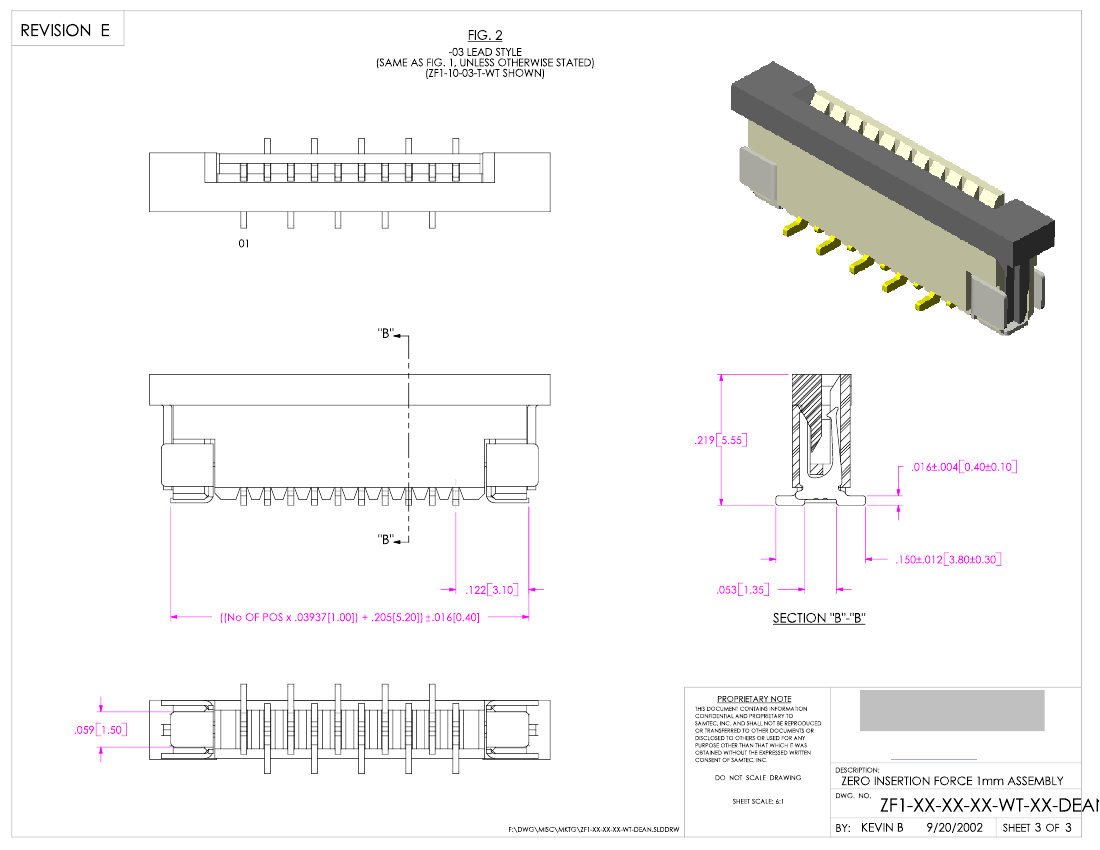

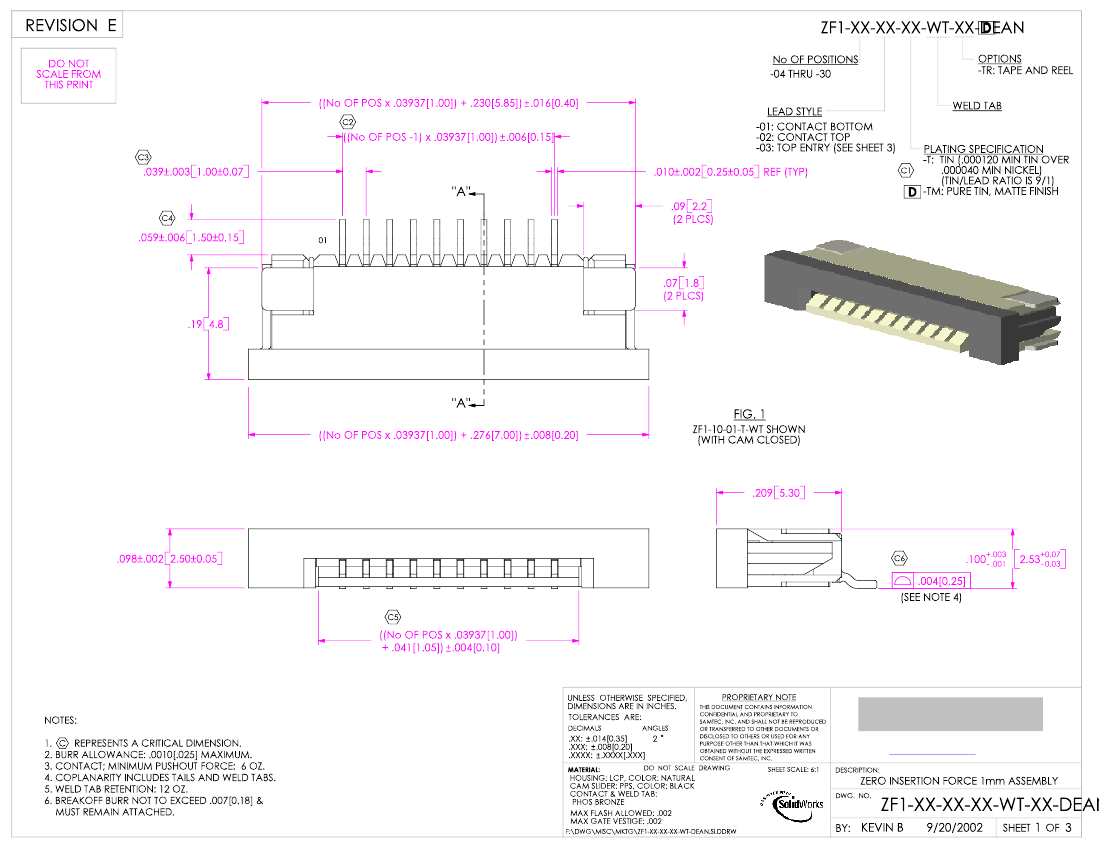

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e -M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
