302A10869X datasheet, PDF - EEWORLD Datasheet

302A10869X: DescriptionD-Sub High Density Connectors 15P HI DENSITY DSUB SKT R/A THRU-HOLE; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com; Environmental Compliance

Download Datasheet Parametric View All

302A10869X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	302A10869X	-	-	View	Buy Now

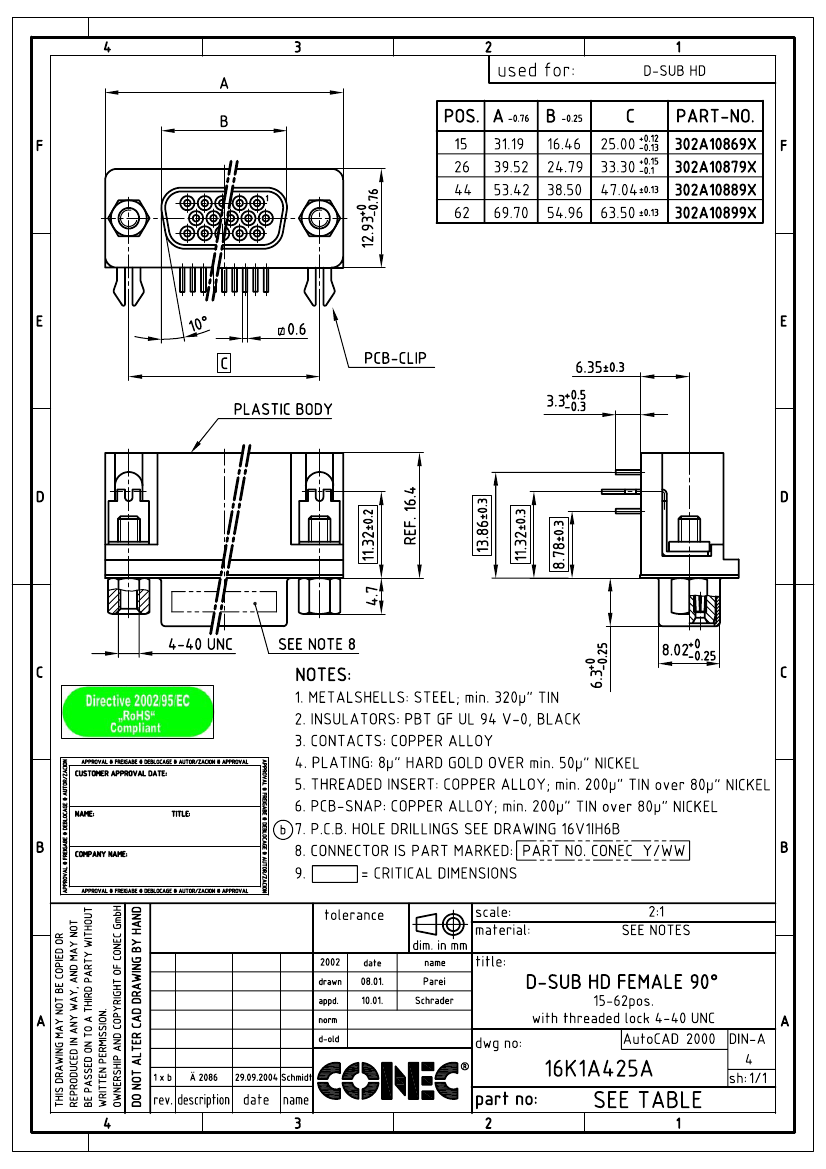

D-Sub High Density Connectors 15P HI DENSITY DSUB SKT R/A THRU-HOLE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	THRD LOCK, CLIP & HIGH DENSITY
body width	0.509 inch
subject depth	0.646 inch
body length	1.228 inch
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.09 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Housing size	1/E
Terminal length	0.13 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
Evacuation force-minimum value	3.336 N
Base Number Matches	1
