The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

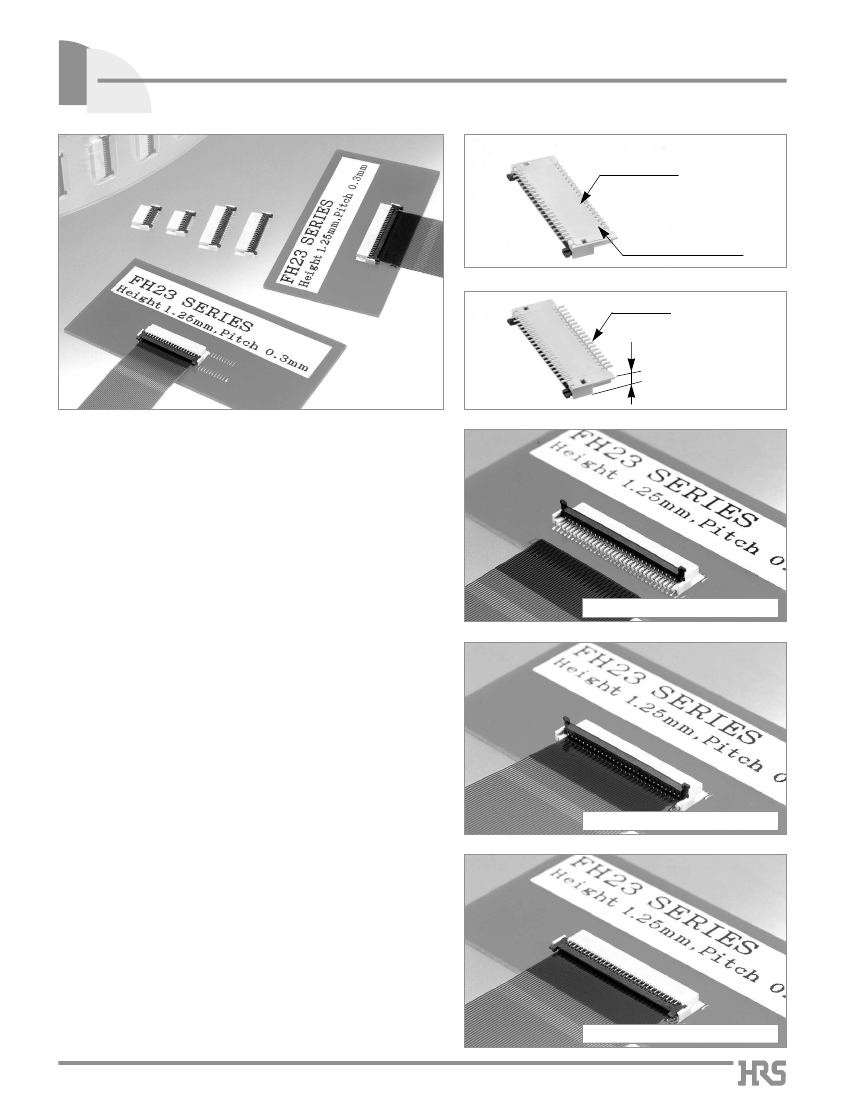

Staggered termination configuration. Only 1.25 mm above the board.
Leadless type
Completely enclosed
bottom surface
Lead type
1.25mm
s
Features
1. FPC low insertion force and high holding force
Hirose Electric's unique low insertion force (LIF) design
(patents pending) improves the Flexible Printed Circuit
(FPC) holding force after insertion.
FPC insertion force:Reduced approximately 36%
(as compared with FH18 Series connectors).
FPC holding force:Improvement of approximately 22%
(as compared with FH18 Series connectors).
2. Temporary hold of FPC
There is no need to hold the FPC after insertion in the
connector. The connector will hold it in correct position,
allowing closing of the actuator.
When the actuator is opened
3. Easy board mounting
The surface mounted termination of the contacts is staggered on
0.6 mm centers, positioned on front and back of the connector.
Bottom of the connector is completely insulated, allowing
conductive traces on PCB to run under the connector.
4. Proven Flip-lock Actuator assures easy and
reliable operation
Rotating actuator permits easy insertion and reliable connection
with the FPC. Tactile sensation confirms complete mechanical
locking of the actuator and the electrical connection.
5. Variations to suit different mounting areas
Available with lead and leadless type of terminations
(for opposing FPC insertion side).
Temporary hold of FPC
6. Designed for placement with automatic equipment
Flat top surface allows pick-up with vacuum nozzles.
Packaged in embossed tape, on reel. One reel contains 2,500 pieces.
7. Accepts 0.2mm thick FPC
8. Variety of contact positions
Available with 15,17,21,23,25,27,31,33,37,39,45,51,61and 71 pos.
9. Halogen Free
The connector does not use chlorine and bromine
exceeding standard limits.
*Defined in accordance with IEC61249-2-21
*Br
900ppm or lower, Cl 900ppm or lower, Br + Cl 1,500ppm or lower
When the actuator is closed
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
Note2: The specification of (06) is applied to number of 51.
Refer to ordering information.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
Note2: The specification of (06) is applied to number of 51.
Refer to ordering information.
Note3: Reserved for future product expansion. Contact HRS for details on availability.
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
