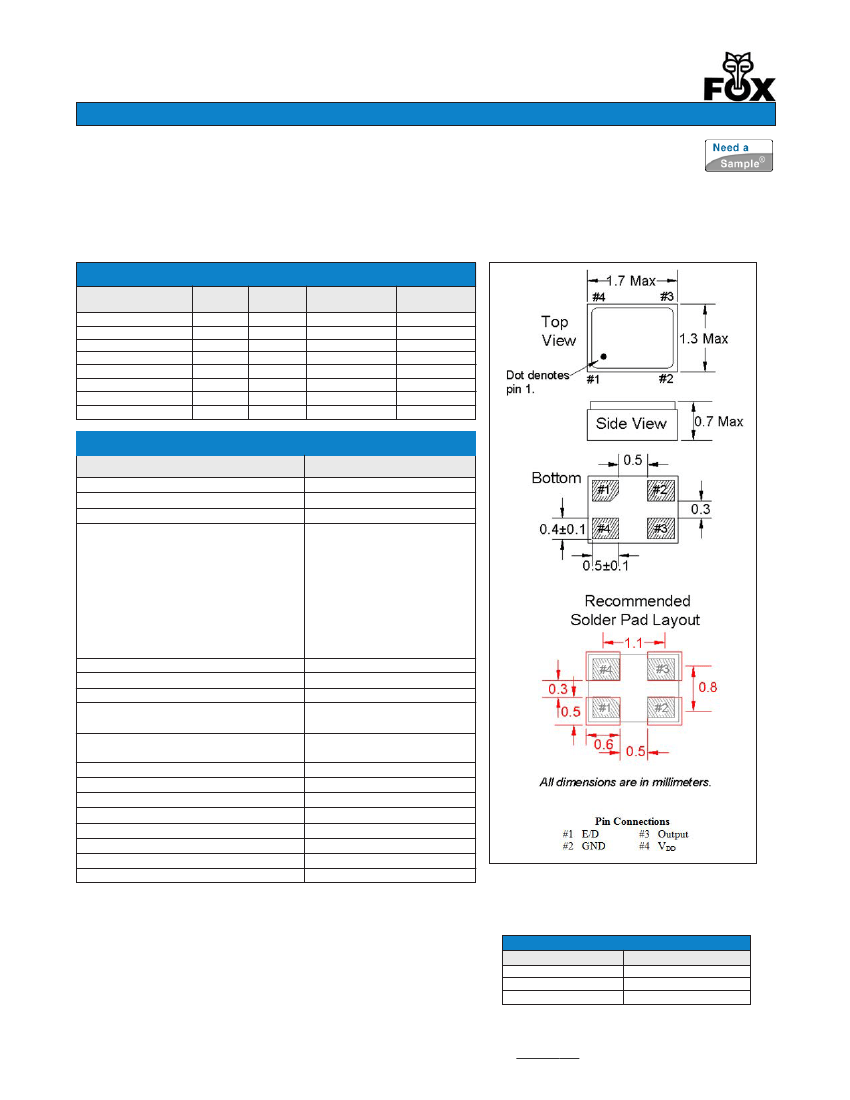

HcMOS 1.6x1.2mm 3.3V SMD Oscillator
Model: F630 SERIES
Page 1 of 2
RoHS/REacH compliant / Pb Free
Rev. 3/16/2015
http://www.foxonline.com/need_a_sample.htm
FEaTuRES
• 3.3V Operation
• Standby Function
• Tape and Reel
(3,000 pcs. STD)
OPTIONS
• 1.8V (F610) Version Available
• 2.5V (F640) Version Available
• PaRT NuMbER SElEcTION
Part Number
873-Frequency-xxxxx
873A-Frequency-xxxxx
873B-Frequency-xxxxx
873C-Frequency-xxxxx
873D-Frequency-xxxxx
873E-Frequency-xxxxx
873F-Frequency-xxxxx
873H-Frequency-xxxxx
Model
Number
F630
F630R
F635
F635R
F633
F633R
F636
F638
Frequency
Operating
1
Stability Temperature (ºC)
±100PPM
-20 ~ +70
-40 ~ +85
±100PPM
-20 ~ +70
±50PPM
±50PPM
-40 ~ +85
±30PPM
-20 ~ +70
±30PPM
-40 ~ +85
±25PPM
-20 ~ +70
-20 ~ +70
±20PPM
Frequency
Range (MHz)
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
• ElEcTRIcal cHaRacTERISTIcS
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
1.000000 ~ 10.000000 MHz
10.000001 ~ 20.000000 MHz
20.000001 ~ 30.000000 MHz
30.000001 ~ 40.000000 MHz
40.000001 ~ 50.000000 MHz
50.000001 ~ 60.000000 MHz
60.000001 ~ 70.000000 MHz
70.000001 ~ 80.000000 MHz
Output Symmetry (50% V
dd
)
Rise Time (10% ~ 90% V
dd
)
Fall Time (90% ~ 10% V
dd
)
Output Voltage
(V
ol
)
(V
oh
)
Output Current
(I
ol
)
(I
oh
)
Output Load
(HCMOS)
Standby Current
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
Maximum Soldering Temp/Time
Moisture Sensitivity Level (MSL)
Termination Finish
1
MAX
(unless otherwise noted)
1.000 ~ 80.000 MHz
-40ºC ~ +85ºC
3.3V ± 10%
3mA
4mA
5mA
6mA
7mA
8mA
9mA
10mA
45% ~ 55%
4.5nS
4.5nS
10% V
dd
90% V
dd
Min
4mA Min
-4mA Min
15pF
10µA
2mS
200nS
2mS
260ºC ±5ºC / 5 Seconds
1
Au over Ni
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration.
2
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between V
dd
(Pin 4) and GND (Pin 2) to
minimize power supply line noise.
Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
• ENablE / DISablE FuNcTION
OUTPUT (Pin 3)
(Pin 1)
ACTIVE
OPEN
2
ACTIVE
'1' Level V
ih
≥
70% V
dd
High Z
'0' Level V
il
≤
30% V
dd
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
An Integrated Device Technology, Inc. company
HcMOS 1.6x1.2mm 3.3V SMD Oscillator
Model: F630 SERIES
Page 2 of 2
RoHS/REacH compliant / Pb Free
Rev. 3/16/2015
http://www.foxonline.com/need_a_sample.htm
• TaPE SPEcIFIcaTIONS
(millimeters)
MODEl
F630 Series
a
∅1.5
• REEl SPEcIFIcaTIONS
(millimeters)
G
I
J
K
l M
H
2.0
∅13 ∅21 ∅60 ∅180
9.0 1.2
b
c D
E
F
STD Reel QTY
MODEl
F630 Series
4.0 4.0 3.5 8.0 0.8
3,000
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
67
An Integrated Device Technology, Inc. company
