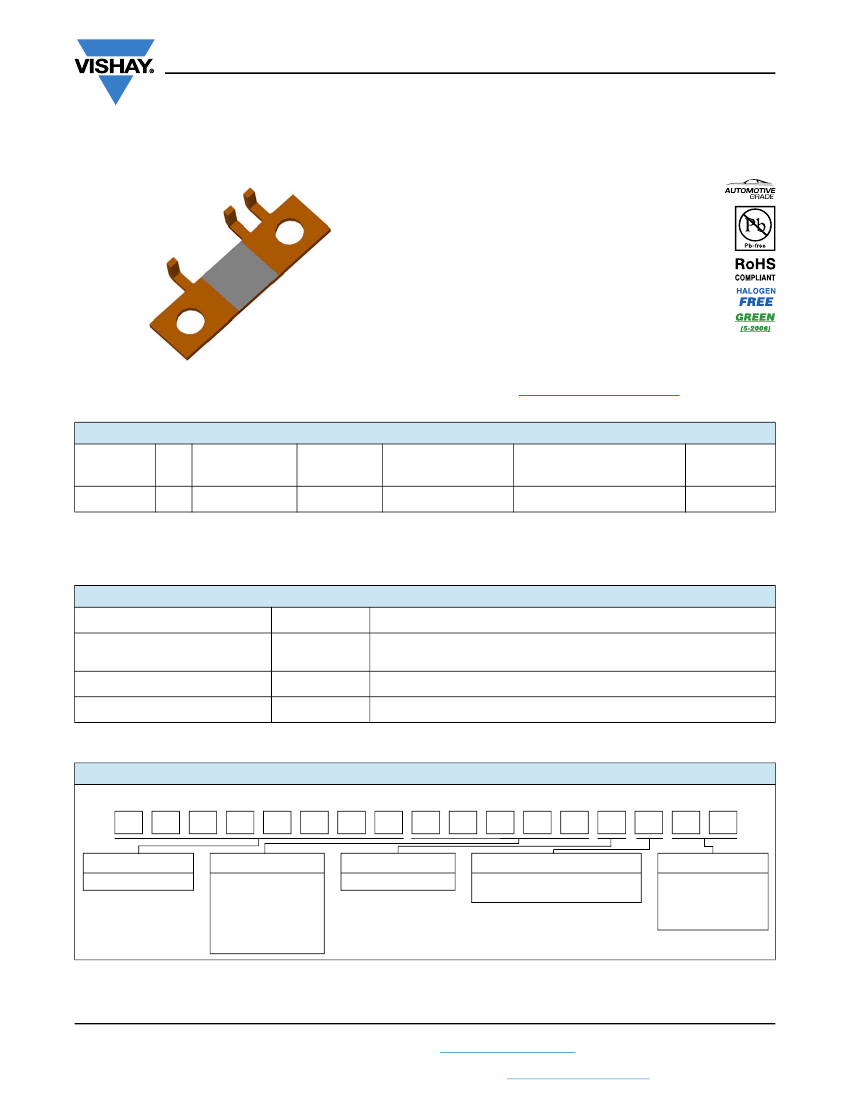

WSMS2908
www.vishay.com
Vishay Dale
Power Metal Strip
®
Meter Shunt Resistor,
Very Low Value (down to 0.0001
Ω)
FEATURES
• High power to resistor size ratio
• 5-terminal connection design
• Use for single or multi-phase energy meters
• Proprietary processing technique produces
extremely low resistance values
• All welded construction
• Very low inductance (< 5 nH)
• Low thermal EMF (< 3 μV/°C)
• AEC-Q200 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
WSMS2908
SIZE
2908
POWER RATING
P
70 °C
W
3.0
TOLERANCE
%
5.0
RESISTANCE VALUE
RANGE
Ω
50μ to 1000μ
RESISTANCE VALUES
CURRENTLY AVAILABLE
(1)
Ω
100μ, 250μ, 300μ, 430μ, 500μ
WEIGHT
(typical)
g/1000 pieces
2100
Note
(1)
Other values may be available, contact factory
TECHNICAL SPECIFICATIONS
PARAMETER
Temperature coefficient
Operating temperature range
Maximum current rating
UNIT
ppm/°C
°C
A
RESISTOR CHARACTERISTICS
± 1100 for 100 μΩ, ± 300 for 250 μΩ,
± 225 for 300 μΩ, ± 175 for 430 μΩ and 500 μΩ
-65 to +170
(P/R)
1/2
GLOBAL PART NUMBER INFORMATION
GLOBAL PART NUMBERING: WSMS2908L1000JE (WSMS2908, 0.0001
Ω,
± 5 %, tape / reel)
W
S
M
S
2
9
0
8
L
1
0
0
0
J
E
SPECIAL
(dash number)
(up to 2 digits)
from
1 to 99
as
applicable
GLOBAL MODEL
WSMS2908
RESISTANCE VALUE
L
= mΩ
L1000
= 0.00010
Ω
L2500
= 0.00025
Ω
L3000
= 0.00030
Ω
L4300
= 0.00043
Ω
L5000
= 0.00050
Ω
TOLERANCE CODE
J
= ± 5.0 %
PACKAGING CODE
K
= bulk pack
E
= tape and reel
Revision: 11-Aug-17
Document Number: 30160
1
For technical questions, contact:
ww2cresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSMS2908
www.vishay.com
DIMENSIONS
in inches (millimeters)
0.453 (11.5)
0.118 (3.0)
0.157 (4.0)
0.059 (1.5)
0.142 (3.6)
Vishay Dale
0.110 (2.8)
0.315 (8.0)
0.157 (4.0)
B
90° ± 2.0°
A
Ø 0.165 (Ø 4.2)
2 PLACES
0.787 (20.0)
CALIBRATION NOTCH
1.142 (29.0) ± 0.010
TERMINAL THICKNESS 0.040 (1.0)
ALL VALUES
DERATING
Rated Power in %
120
100
80
60
40
20
0
- 65 - 50 - 25
TOLERANCES ON DECIMALS
.XXX ± 0.005 [.x ± 0.1]
UNLESS OTHERWISE LISTED
RESISTANCE
VALUE
(μΩ)
100
250
300
0
25
50
75
70
100 125 150 175
Ambient Temperature in °C
A
DIMENSION
(inches)
0.040
0.059
0.051
0.038
0.033
B
DIMENSION
(inches)
0.080
0.276
0.276
0.315
0.315
ELEMENT
MATERIAL
Mn-Cu
Mn-Cu
Mn-Cu
Mn-Cu
Mn-Cu
430
500
PERFORMANCE
TEST
Thermal shock
Short time overload
Low temperature storage
High temperature exposure
Bias humidity
Mechanical shock
Vibration
Load life
Moisture resistance
CONDITIONS OF TEST
-55 °C to +150 °C, 1000 cycles, 15 min at each extreme
5x rated power for 5 s
-65 °C for 24 h
1000 h at +170 °C
+85 °C, 85 % RH, 10 % bias, 1000 h
100
g’s
for 6 ms, 5 pulses
Frequency varied 10 Hz to 2000 Hz in 1 min, 3 directions, 12 h
1000 h at +70 °C, 1.5 h “ON”, 0.5 h “OFF”
MIL-STD-202, method 106, 0 % power, 7b not required
TEST LIMITS
± 0.5 %
ΔR
± 0.5 %
ΔR
± 0.5 %
ΔR
± 1.0 %
ΔR
± 0.5 %
ΔR
± 0.5 %
ΔR
± 0.5 %
ΔR
± 1.0 %
ΔR
± 0.5 %
ΔR
Revision: 11-Aug-17
Document Number: 30160
2
For technical questions, contact:
ww2cresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
